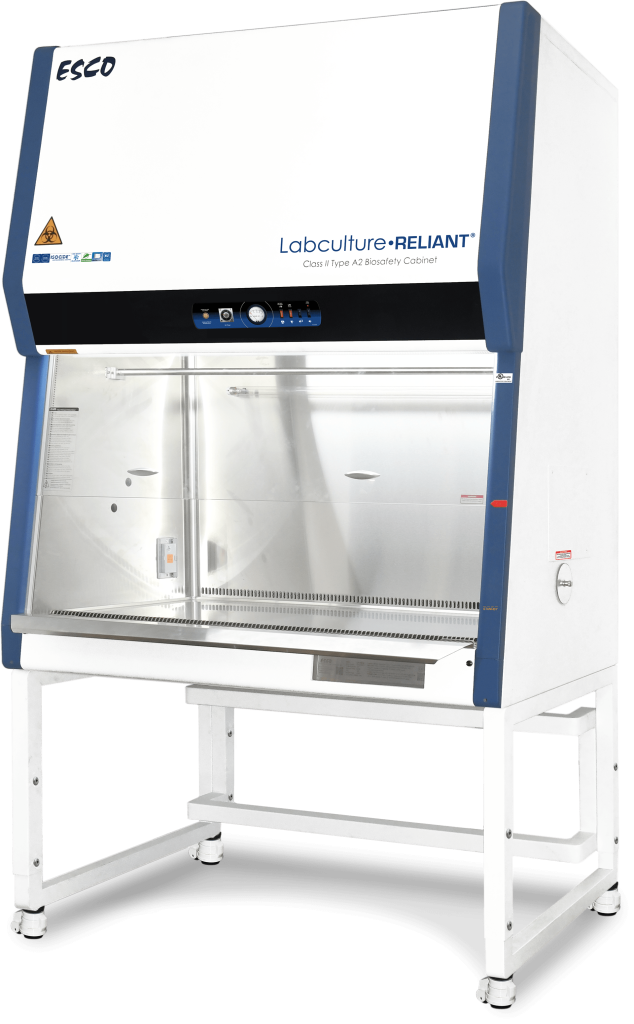

Labculture® Reliant G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 10-inch opening

Features

The new Labculture® Reliant G4 BSC is NSF-certified and available in three sash height openings: 8", 10", and 12" inches, with standby height that easily activates standby mode.

LR2 G4 ergonomic work zone is comprised of bright illumination using industry-leading LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.



Rocker Switches and Pressure Gauge



  • New and improved controller interface.
  • Easy to use switches and displays filter loading status.
  • Manually adjustable UV timer.



Energy-efficient LED



  • Optimum work zone brightness.
  • Ideal light intensity of 1200 lux.
  • Saves energy and optimizes work comfort.



Ergonomic Sash



  • Available in 8”, 10”, and 12” sash openings.
  • Frameless, shatterproof, and UV-absorbing tempered glass.



Tray Support Beams and Holder



  • Support beams for less vibration and holder for easy drain pan cleaning.



Cabinet Construction



  • Stainless steel side walls with side capture zones and negative pressure to optimize containment.
  • Single-piece work tray, spill retaining and easy to clean.



Green Product



  • Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor.
  • Extremely low energy consumption.
  • Standby mode allows reduced power consumption by 80%.



ULPA Filter



  • 10x filtration efficiency compared to the HEPA filter.
  • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5.
  • Same 10 years filter life and replacement cost as HEPA filters.



  • 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA.
  • >99.999% at MPPS, H14 as per EN 1822 EU.



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure.

Specifications

Overview

  • Nominal Height:
    61.8" (156.97 cm)
  • Nominal Width:
    52.8" (134.11 cm)
  • Nominal Length:
    32.1" (81.53 cm)
  • Internal Height:
    28.3" (71.88 cm)
  • Internal Width:
    48" (121.92 cm)
  • Internal Length:
    24.6" (62.48 cm)

Technical Specifications

  • Nominal Size:
    1.2 meter (4')
  • External Dimensions (W x D x H) With Arm Rest:
    1340 x 873 x 1570 mm (52.8” x 34.4” x 61.8”)
  • Usable Work Area:
    0.63 m2 (6.8 sq.ft.)
  • Sash opening:
    Available in 203 mm (8”), 254 mm (10”), and 305 mm (12”)
  • Maximum Sash Opening:
    570 mm (22.5”)
  • Average Airflow Velocity - Inflow:
    0.53 m/s (105 fpm)
  • Average Airflow Velocity - Downflow:
    0.30 m/s (65 fpm)
  • ULPA Filter Typical Efficiency:
    ≥99.999% for particle size between 0.1 to 0.3 microns
  • Sound Emission (dBA)* NSF / ANSI 49:
    59
  • LED Lamp Light Intensity:
    > 1200 lux (111 ft. cd)
  • Net Weight:
    287 Kg (633 lbs)
  • Shipping Weight:
    350 Kg (772 lbs)
  • Shipping Dimensions, Maximum (W x D x H):
    1490 x 890 x 1900 mm (58.7” x 35.0” x 74.8”)
  • Shipping Volume Dimensions (W x D x H):
    2.5 m³ (cu.ft.)

Airflow Volume - Cabinet Construction

  • Airflow Volume - Inflow:
    591 m3/h (350 cfm)
  • Airflow Volume - Downflow:
    848 m3/h (499 cfm)
  • Airflow Volume - Exhaust:
    591 m3/h (350 cfm)
  • Cabinet Construction - Main body:
    Electro-galvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder-coated finish, 1.5 mm (0.06”) / 16 gauge thick
  • Cabinet Construction - Work Zone:
    Stainless steel type 304 with no.4 finish, 1.5 mm (0.06”) / 16 gauge thick
  • Cabinet Construction - Sash Window:
    6 mm UV-absorving Tempered Glass

Electrical** 110-130 VAC, 50/60 Hz

  • Nominal power (Watt):
    205
  • Heat Load (BTU/hr):
    699
  • Full Load Amps exclude 5A EO:
    10 A
  • Optional Outlets FLA:
    5A
