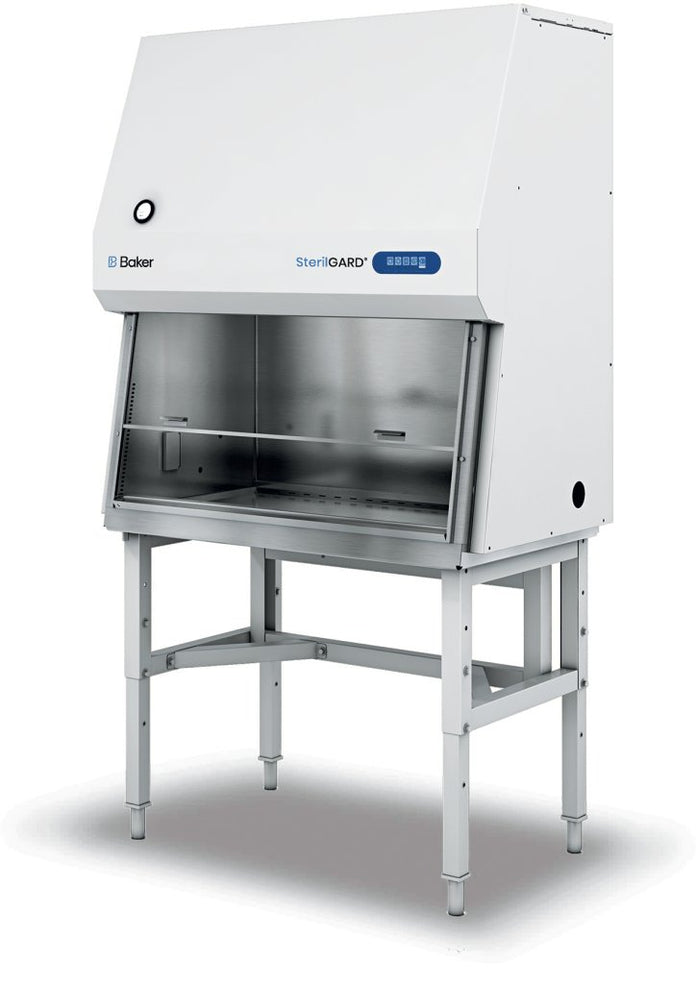

Baker - SG404-115V - 4' SterilGARD® e3 NSF Class II Type A2 Biosafety Cabinet, 115V

Features
All SterilGARD® e3 cabinets also feature our exclusive ReadySAFE™ mode
A unique padded armrest allows the cabinet to continue operation - and maintain A2 conditions - with the viewscreen in the close position. The SterilGARD® e3 is the only cabinet in the industry that offers an idle mode that is instantly safe upon resuming standard operation. The versatile ReadySAFE™ mode can be used during meetings, lunch breaks and overnights to maintain safe conditions, create a quieter work environment, and save energy.
Save energy and filter costs - the revolutionary airflow management system called StediFLOW™ with a self-adjusting motor technology uses less energy and extends filter life without sacrificing performance. Increase productivity with a continuously safe work environment - our exclusive ReadySAFE™ mode allows the cabinet to continuously operate while the screen is closed. An industry first, this mode allows the user to maintain safe conditions while leaving for lunch, meetings or even overnight.
Work in optimum comfort - the ergonomically advanced SterilGARD® e3 is the quietest cabinet on the market with the lowest heat generation and minimal vibration, which means you'll finish your day feeling as good as when you started.
Experience easier cleaning - an exceptionally reliable membrane-sealed control panel, a one-piece work surface, and radiused, cove corners allow for faster, more thorough cleaning.
Reduce service and certification downtime - an innovative electronic controller with diagnostic LEDs, detachable side panels, front loading filters, and a reinforced overall panel design makes maintenance quicker and easier.
Energy Efficient
Multiple energy-saving features equals up to 60% increase in energy efficiency.
StediFLOW™
Safest work environment with new StediFLOW™ self-adjusting motor technology.
Comfortable
Most comfortable working environment available with reduced noise and vibration.
30% More Filter Life
30% more filter life and less impact on the environment.
Easier Viewing
More energy efficient and brighter lighting system for easier viewing and reduced eyestrain.
Specifications
Overview
-
Nominal Height:61.75" (156.85 cm)
-
Nominal Width:53.75" (136.53 cm)
-
Nominal Length:30.69" (77.95 cm)
-
Internal Height:27.44" (69.7 cm)
-
Internal Width:46" (116.84 cm)
-
Internal Length:24.56" (62.38 cm)
Technical Specifications
-
Nominal Size:4'
-
Usable Workspace (w x d):44" x 19.62"
-
Cabinet Weight:582 lbs
-
Shipping Weight:785 lbs
-
Opening Max:20"
-
Working Access Opening Height (8" standard):8" / 10" / 12"
-
Operating Amperage - Normal Operating Mode:3.6 / 4.0 / 4.2 Amps
-
Operating Amperage - ReadySAFE Mode:1.8 Amps
-
Power Consumption - Normal Operating Mode:414 / 460 / 483 Watts
-
Power Consumption - ReadySAFE Mode:207 Watts
-
Heat Generation - Normal Operating Mode:1,413 / 1,570 / 1,649 BTU/hr
-
Heat Generation - ReadySAFE Mode:706 BTU/hr
-
Electrical Service Requirements:115V AC, 20 A, 60 Hz
-
Noise:61 / 62 / 65 dBa
Drawings
-
SG404 Channel Stand DrawingVisit Link
-
SG404 VTR DrawingVisit Link
-
SG404 with Channel Stand & Casters DrawingVisit Link
-
SG404 with Channel Stand & FlexAIR DrawingVisit Link
-
SG404 w Channel Stand & FlexAIRVisit Link
Useful Links
-
SGx04 Operators ManualVisit Link
-
SGx04 Service ManualVisit Link
-
SterilGARD Product SummaryVisit Link
-
SterilGARD e3 GMP FlyerVisit Link
-
SGx04 Technical Spec - 115VVisit Link
