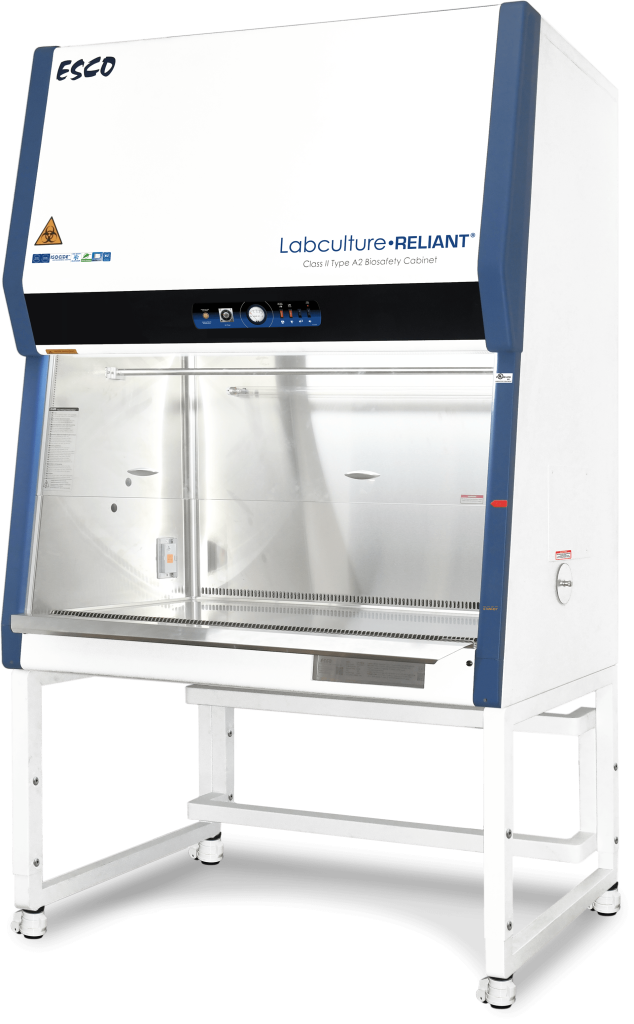

ESCO - LR2-3S9 G4 - 10" Port Labculture® Reliant Class II Type A2 Biological Safety Cabinet

Features
The new Labculture® Reliant G4 BSC is NSF-certified and available in three sash height openings: 8", 10", and 12" inches, with standby height that easily activates standby mode.
LR2 G4 ergonomic work zone is comprised of bright illumination using industry-leading LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.
Rocker Switches and Pressure Gauge
- New and improved controller interface.
- Easy to use switches and displays filter loading status.
- Manually adjustable UV timer.
Energy-efficient LED
- Optimum work zone brightness.
- Ideal light intensity of 1200 lux.
- Saves energy and optimizes work comfort.
Ergonomic Sash
- Available in 8”, 10”, and 12” sash openings.
- Frameless, shatterproof, and UV-absorbing tempered glass.
Tray Support Beams and Holder
- Support beams for less vibration and holder for easy drain pan cleaning.
Cabinet Construction
- Stainless steel side walls with side capture zones and negative pressure to optimize containment.
- Single-piece work tray, spill retaining and easy to clean.
Green Product
- Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor.
- Extremely low energy consumption.
- Standby mode allows reduced power consumption by 80%.
ULPA Filter
- 10x filtration efficiency compared to the HEPA filter.
- Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5.
- Same 10 years filter life and replacement cost as HEPA filters.
- 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA.
- *>99.999% at MPPS, H14 as per EN 1822 EU.
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure.
Specifications
Overview
-
Nominal Height:61.8" (156.97 cm)
-
Nominal Width:40.8" (103.63 cm)
-
Nominal Length:32.1" (81.53 cm)
-
Internal Height:28.3" (71.88 cm)
-
Internal Width:36" (91.44 cm)
-
Internal Length:24.6" (62.48 cm)
Technical Data
-
Nominal Size:0.9 meter (3')
-
External Dimensions (W x D x H) With Arm Rest:1035 x 873 x 1570 mm (40.8” x 34.4” x 61.8”)
-
Usable Work Area:0.47 m2 (5.0 sq.ft.)
-
Sash Opening:Available in 203 mm (8”), 254 mm (10”), and 305 mm (12”)
-
Maximum Sash Opening:570 mm (22.5”)
-
Average Airflow Velocity - Inflow:0.53 m/s (105 fpm)
-
Average Airflow Velocity - Downflow:0.33 m/s (65 fpm)
-
ULPA Filter Typical Efficiency:≥99.999% for particle size between 0.1 to 0.3 microns
-
Sound Emission (dBA) NSF / ANSI 49:60
-
LED Lamp Light Intensity:> 1200 lux (111 ft. cd)
-
Net Weight:243 Kg (536 lbs)
-
Shipping Weight:292 Kg (644 lbs)
-
Shipping Dimensions - Maximum (W x D x H):1185 x 890 x 1900 mm (46.7” x 35.0” x 74.8”)
-
Shipping Volume Dimensions (W x D x H):2.00 m³ (cu.ft.)
Airflow Volume - Cabinet Construction
-
Airflow Volume - Inflow:446 m3/h (263 cfm)
-
Airflow Volume - Downflow:639 m3/h (374 cfm)
-
Airflow Volume - Exhaust:446 m3/h (263 cfm)
-
Cabinet Construction - Main body:Electro-galvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder-coated finish, 1.5 mm (0.06”) / 16 gauge thick
-
Cabinet Construction - Work Zone:Stainless steel type 304 with no.4 finish, 1.5 mm (0.06”) / 16 gauge thick
-
Cabinet Construction - Sash Window:6 mm UV-absorving Tempered Glass
Electrical 110-130 VAC, 50/60 Hz
-
Nominal power (Watt):203
-
Heat Load (BTU/hr):693
-
Full Load Amps Exclude 5A EO:10 A
-
Optional Outlets FLA:5A
