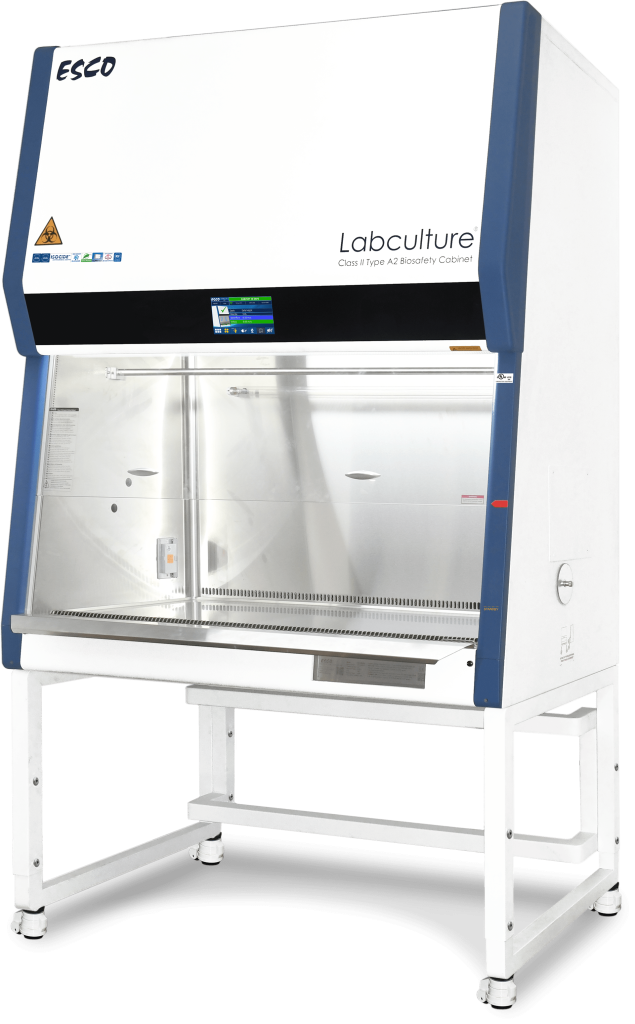

Labculture® G4 Class II type A2 biological safety cabinet, 5ft/1.5m, 10-inch opening.

Features

The new BSC with Centurion Touchscreen controller is NSF-certified and available in three sash height openings: 8", 10", and 12" inches, with standby height that easily activates standby mode.



Labculture® G4 (LA2 G4) ergonomic work zone is comprised of bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.



Centurion Touchscreen Controller



  • Intuitive, comprehensive, and easy-to-understand
  • Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
  • Defined details of alarm types with clear instructions for proper intervention
  • Centered and angled down for easy reach & viewing
  • Selectable Quickstart mode for fast operation



Dimmable LED



  • Adjustable work zone brightness
  • Ideal light intensity of 1200 lux
  • Saves energy and optimizes work comfort



Ergonomic Sash



  • Available in 8", 10", and 12" sash openings
  • Frameless, shatterproof, and UV-absorbing tempered glass



Tray Support Beams and Holder



  • Support beams for less vibration and holder for easy drain pan cleaning



USB Port and Remote Modbus



  • USB port to access cabinet data log and BMS connectivity
  • Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices



Cabinet Construction



  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Single-piece work tray, spill retaining and easy to clean



Green Product



  • Equipped with energy-efficient DC ECM that allows up to 70% energy savings compared to AC motors
  • Extremely low energy consumption with 205 watts (4 ft unit)
  • Standby mode allows reduced power consumption by 80%



ULPA Filter



  • 10x filtration efficiency compared to the HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard ISO Class 5
  • Same 10-year filter life and replacement cost as HEPA filters



*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA

*>99.999% at MPPS, H14 as per EN 1822 EU



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Internal Height:
    28.3" (71.88 cm)
  • Internal Width:
    60" (152.4 cm)
  • Internal Length:
    24.6" (62.48 cm)

Technical Data

  • Nominal Size:
    1.5 meter (5')
  • External Dimensions (W x D x H) - Without Arm Rest:
    1645 x 815 x 1570 mm (64.8" x 32.1"x 61.8")
  • External Dimensions (W x D x H) - With Arm Rest:
    1645 x 867 x 1570 mm (64.8" x 34.1" x 61.8")
  • Usable Work Area:
    0.80 m2 (8.5 sq. ft.)
  • Sash Opening:
    Available in 254 mm (10")
  • Maximum Sash Opening:
    575 mm (22.6")
  • Additional Static Pressure for Optional Thimble Exhaust Collar (Measured 360mm or 14" from the top of exhaust collar):
    25-35 Pa
  • Required Exhaust with Optional Thimble Exhaust Collar:
    770 m3/h (453 cfm)
  • ULPA Filter Typical Efficiency:
    >99.999% at 0.1 to 0.3 micron, ULPA as Per IEST-RP-CC001.3 USA, >99.999% at MPPS, H14 as Per EN 1822 EU
  • Sound Emission (dBA) - NSF/ANSI 49:
    63
  • LED Lamp Light Intensity:
    ≥ 1000 lux (92 ft-cd)
  • Cabinet Construction - Main Body:
    Electro-galvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder-coated finish, 1.5 mm (0.06")/16 gauge thick
  • Cabinet Construction - Work Zone:
    Stainless steel type 304 with no.4 finish, 1.5 mm (0.06")/16 gauge thick
  • Cabinet Construction - Sash Window:
    6 mm UV-absorbing TemPered Glass
  • Net Weight:
    381 Kg (840 lbs)
  • Shipping Weight:
    451 kg (968 lbs)
  • Shipping Dimensions, Maximum (W x D x H):
    1950 x 950 x 2120 mm (76.8" x 37.4" x 83.5")
  • Shipping Volume Dimensions (W x D x H):
    3.9 m³ (137.7 cu. ft.)

Average Airflow Velocity - Airflow Volume

  • Average Airflow Velocity - Inflow:
    0.53 m/s (105 fpm)
  • Average Airflow Velocity - Downflow:
    0.33 m/s (65 fpm)
  • Airflow Volume - Inflow:
    741 m3/h (438 cfm)
  • Airflow Volume - Downflow:
    1063 m3/h (624 cfm)
  • Airflow Volume - Exhaust:
    741 m3/h (438 cfm)

Electrical (110-120 VAC, 50/60 Hz)

  • Nominal Power (Watt):
    380
  • Heat Load (BTU/hr):
    1297
  • Full Load Amps Exclude 5A EO:
    16 A
  • Optional Outlets FLA:
    5A
