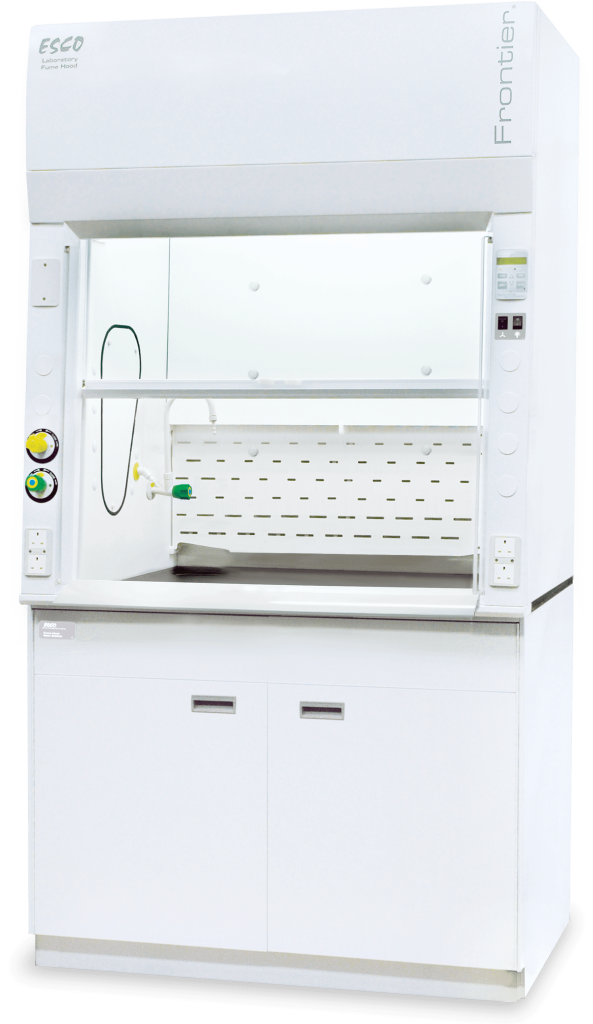

ESCO - EFA - Frontier® Acela™ Ducted Fume Hood (EFA)

Product Range
| SKU | Name |
|---|---|
| EFA-6UDUCW-9 | ESCO - EFA-6UDUCW-9 - Frontier® Acela™ Ducted Fume Hood (EFA) |
| EFA-5UDUCW-9 | ESCO - EFA-5UDUCW-9 - Frontier® Acela™ Ducted Fume Hood (EFA) |
| EFA-6UDUVW-9 | ESCO - EFA-6UDUVW-9 - Frontier® Acela™ Ducted Fume Hood (EFA) |
| EFA-5UDUVW-9 | ESCO - EFA-5UDUVW-9 - Frontier® Acela™ Ducted Fume Hood (EFA) |
| EFA-8UDUVW-9 | ESCO - EFA-8UDUVW-9 - Frontier® Acela™ Ducted Fume Hood (EFA) |
| EFA-4UDUVW-9 | ESCO - EFA-4UDUVW-9 - Frontier® Acela™ Ducted Fume Hood (EFA) |
| EFA-4UDUCW-9 | ESCO - EFA-4UDUCW-9 - Frontier® Acela™ Ducted Fume Hood (EFA) |
Features
Esco Frontier® Acela™ (EFA) a high-performance, low-flow, ducted fume hood designed with precisely tuned aerodynamics, outstanding user safety, design flexibility, energy-efficiency, and aesthetics. A conventional laboratory fume hood that lets you save while keeping you safe.
Each EFA Fume Hood comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
*This cabinet requires an external blower (sold separately)
Tri-Wall Construction
- Triple layer for maximum robustness and durability
High Sight Line
- High sight line of 857 mm (33.7”) for enhanced visibility.
Sash Angled Front
- 5° slope minimizes glares and reflections
- Allows users to work further into the hood without strain
Hot Zone Baffles
- The unique Hot Zone Baffle design draws most contaminants back in single pass displacement of the air.
- Thermal heat relief is quickly achieved.
Worktop Options
- Multiple worktop options allows more applications to be done
- Standard worktop is phenolic resin
- Options include: Epoxy resin, Ceramic, SS 304, SS 316
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure
Specifications
Overview
General Specifications
-
Exhaust Outlet Diameter and Material:305 mm (12.0”), Fiberglass
-
LED Lighting System - Description:Pre-wired hood lighting with electronic ballast for energy efficiency and instant start
-
Controller:Rocker Switches (default). Option to upgrade to SentinelTM XL Microprocessor Controller
-
Construction - Main Body:Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating
-
Construction - Internal Liner (default):Esco Resinate™
-
Construction - Worktop (default):Phenolic Resin
Sash Specifications - Electrical 110-120 VAC, 50/60 Hz, 1ø
-
Sash Specifications - Sash Material:Laminated-Tempered and Framed Safety Glass
-
Sash Specifications - Sloping:50° Sloped
-
Sash Specifications - Maximum Sash Opening:670 mm (26.4”)
-
Electrical - Cabinet Full Load Amps (FLA)::32 A
-
Electrical - Cabinet Nominal Power:100 W (lighting only)
