Erlab - HALO Chemplus Acid
Features
- Real time room and system monitoring technology
- Fast and simple to install
- Does not take floor space
- Very low energy consumption (50w)
- Captures chemical emissions and aerosolized contaminants at the source
- Zero release of pollutants to atmosphere
- Intuitive Smart light communication

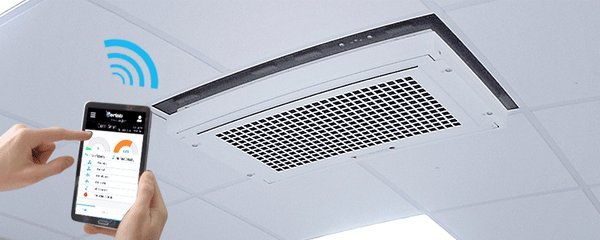

- Remote management by app
- Alarm contact for BMS and BAS systems
Specifications
Overview
-
Nominal Height:10.25" (26.04 cm)
-
Nominal Width:23.25" (59.06 cm)
-
Nominal Length:35.25" (89.54 cm)
Technical Data
-
Processed Air Flow:135 CFM - 220 m3/h
-
Operating Modes:24/7, Night/Day, Alert
-
Detection:Electro-chemical sensor
-
Fan Monitoring:Halo unit monitors the air flow and informs the user through light pulsation communication.
-
Pre-Filtration:Particulate prefilter
-
Chemical Filter Options:Acid
-
Sensor:Electro-chemical sensor for acids
-
User Interface:Simple communication by LED pulsation system
-
eGuard:App for remote control and monitoring
-
Ports:1 Ethernet Port
-

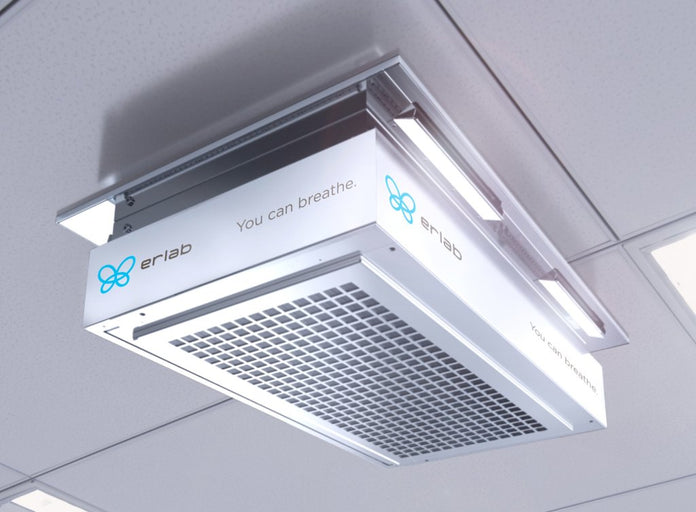

Installation:Hung via 4 eye bolts (included) or Threaded Rod (not included)
-
Weight:68 lbs - 31 kg (including filter)
-
Voltage / Frequency:80-240V 50/60hz
-
Energy Consumption:50 W
