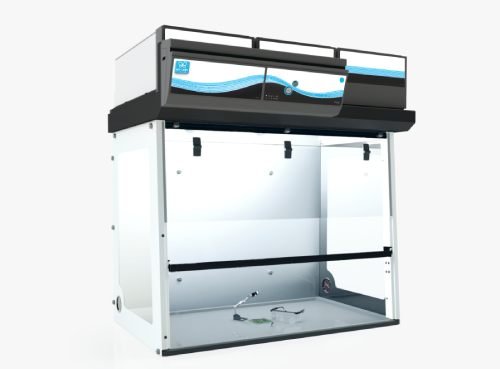

Erlab - CaptairFlow 483 Clean Air Enclosure Model 1C1P

Erlab - CaptairFlow 483 Clean Air Enclosure Model 1C1P

Erlab - CaptairFlow 483 Clean Air Enclosure Model 1C1P

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Erlab laminar flow hoods provide optimal product protection, keeping your product safe from ambient air pollution.

Features

Providing an ultra-clean, dust free enclosure



CaptairFlow vertical laminar flow cabinets are designed for tissue culture, non-pathogenic biological samples,food microbiology, cell culture, and semi - conductor assembly.



Dust free workstation



  • Protection against dust contamination
  • Internal dust - free air quality achieved by high efficiency particulate filter (s) (HEPA H14 or ULPA U17)
  • Optional carbon filter to protect samples from VOCs present in the laboratory room
  • Class 5 air quality in the enclosure according ISO 14644-1



UV-C Germicidal Lamp



  • To sterilize the interior and contents before usage to prevent crosscontamination from the previous experiment
  • This UV lamp switches off automatically if the operator opens the lower door by accident during decontamination



Easy to Clean



  • Seamless worktop with smooth corners (available in TRESPA®TopLabPLUS or Stainless steel 304 L)
  • Non-porous materia



Ergonomic Design



  • 4 models available for your handlings with large openings for easy access to your work
  • Slanted sash provides an ergonomic position for comfort and productivity
  • High luminosity, internal LED lighting > 800 lux

Specifications

Overview

  • Nominal Height:
    56.5" (143.51 cm)
  • Nominal Width:
    51.13" (129.87 cm)
  • Nominal Length:
    37.88" (96.22 cm)
  • Internal Height:
    40.88" (103.84 cm)
  • Internal Width:
    46.13" (117.17 cm)
  • Internal Length:
    25.65" (65.15 cm)

Technical Data

  • Voltage/Fequency (V-Hz):
    100-240 / 50-60
  • Air Face Velocity (fpm):
    68
  • Air Flow (CFM):
    311
  • Power Consumption:
    90
  • Decibel Level (dBA):
    57
  • Side and Front panels:
    Chemical resistant acrylic
  • Structure:
    Corrosion resistant electro-galvanized steel coated with anti-acid polymer
  • Filtration Module:
    Polypropylene
