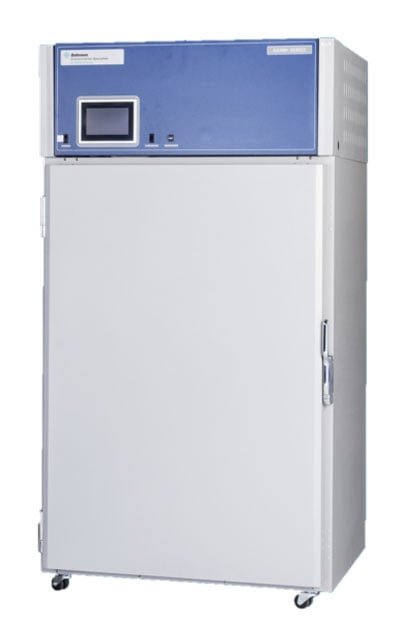

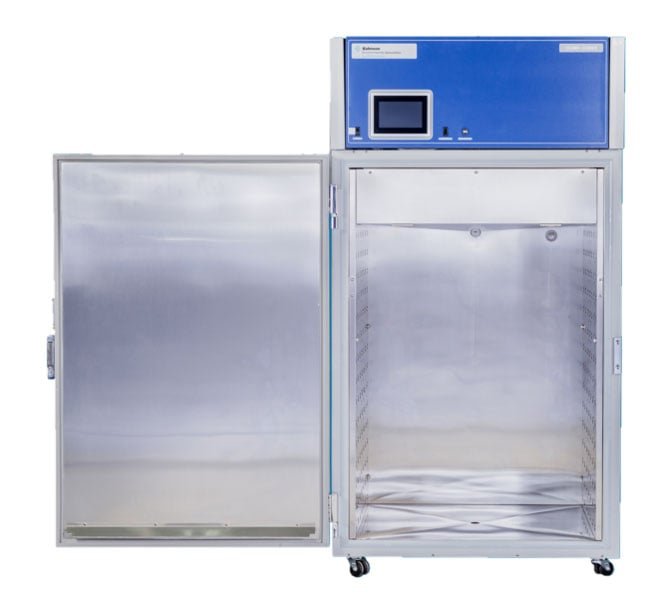

Stability Chambers Reach-in stability chambers are temperature- and humidity-controlled environmental units that provide stable conditions for storage and testing purposes. Our reach-in stability chambers are capable of maintaining precise levels of temperature and humidity uniformity.

Product Range

SKU Name
ES2000 Model C-LT-C-Bahnson Environmental Specialties LLC - ES2000 Model C-LT-C - Compact Low-Temp Chamber 25 Cu. Ft.
ES2000 Model CDM-C-Bahnson Environmental Specialties LLC - ES2000 Model CDM-C - Compact Temp + RH Chamber 25 Cu. Ft.
ES2000 Model A-C-Bahnson Environmental Specialties LLC - ES2000 Model A-C - Compact Warm Temp-Only Chamber 25 Cu. Ft.
ES2000 Model AM-C-Bahnson Environmental Specialties LLC - ES2000 Model AM-C - Compact Temp + RH Chamber 25 Cu. Ft.
ES2000 Model C-C-Bahnson Environmental Specialties LLC - ES2000 Model C-C - Compact Temp-Only Chamber 25 Cu. Ft.

Features

  • Touchscreen LCD controller
  • High and low voltage wiring separated for safe servicing (NFPA 70E Compliant)
  • 2-way (RS-485) or 1-way (4-20mA) communication to controller
  • Horizontal air flow across full vertical height of chamber for uniform distribution
  • Integrated refrigeration equipment on top of chamber
  • 3A duplex receptacle available upon request
  • Chart recorder available upon request
  • Class I Div 2 construction available upon request
  • Electrofin coil coating for corrosive environments available upon request
  • Internal lighting available upon request
  • UPS available upon request
  • 20-year design life
  • MET listed
  • Warranty: 12 months parts and labor

Specifications

Overview

  • Nominal Height:
    76.5" (194.31 cm)
  • Nominal Width:
    41" (104.14 cm)
  • Internal Width:
    34" (86.36 cm)

Technical Data

  • Volumetric Uniformity:
    ±0.3°C, ±.3.0% RH
  • 4-Wire Electrical Volts/Ø/Amps:
    208-230 / 1 / 30
  • Shelves Std/Max:
    4/14
