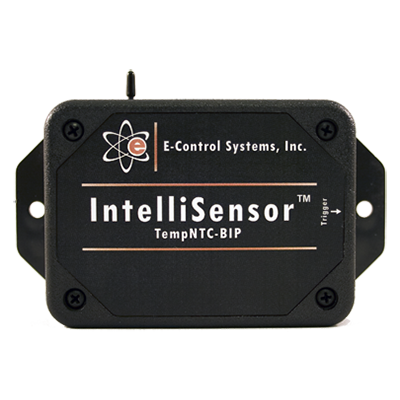

The IntelliSensor™

The IntelliSensor™ is a cost-effective, wireless monitoring system operating on the 802.15.4 ZigBee® standard for storing and communicating temperature information, among other features. Sensors have built-in temperature probes and transmit data wirelessly to the IntelliGate™. The IntelliGate™ unit temporarily stores and processes all of the data from the IntelliSensor™ units and relays the received data over Ethernet to the FusionLive™ software, allowing for an easy creation of a centrally managed monitoring application.

• Battery-powered wireless solution operates via ZigBee®
• Completely wireless (no need for power, data, or sensor cables)
• Battery lasts up to 10 years
• Strongest wireless transmitter on the market
• Supports meshed networking for increased reliability and range
• Sensors equipped with data loggers capable of storing up to 1 week of data internally
• Completely integrated solution with FusionLive™ Software
• No hardware configuration needed (sensors automatically join the network)
• Firmware can be updated wirelessly (over-the-air)
• User-configurable transmission interval (over-the-air)
• Conformal coated board for moisture-rich operating environments
• Operating temperature: -40 °C to 85 °C
• Operating humidity: 0 to 100 %, non-condensing
• Temperature resolution: 0.1 °C
• Accuracy: ± 1 °C (± 0.5 °C with calibration)
