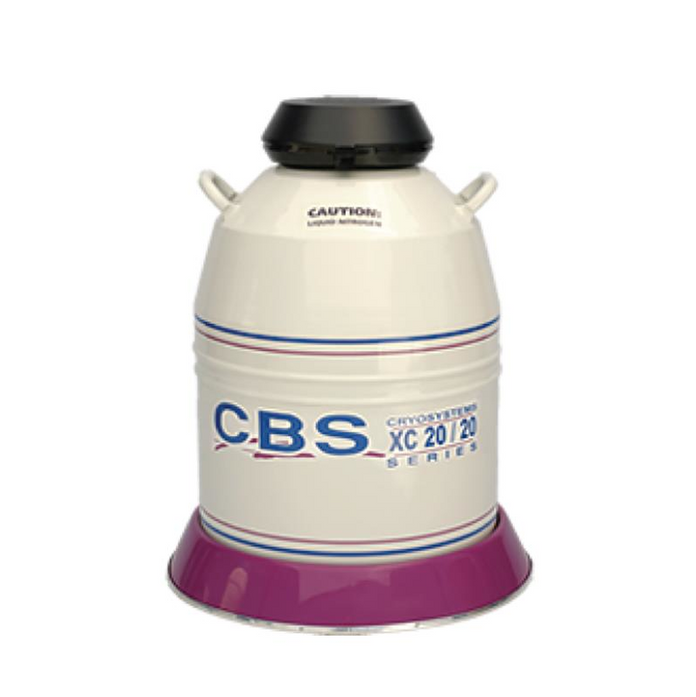

Custom Biogenic Systems - CB20 - Cryosystems XC20/20 Series with 6 Canisters

Custom Biogenic Systems - CB20 - Cryosystems XC20/20 Series with 6 Canisters

Custom Biogenic Systems - CB20 - Cryosystems XC20/20 Series with 6 Canisters

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

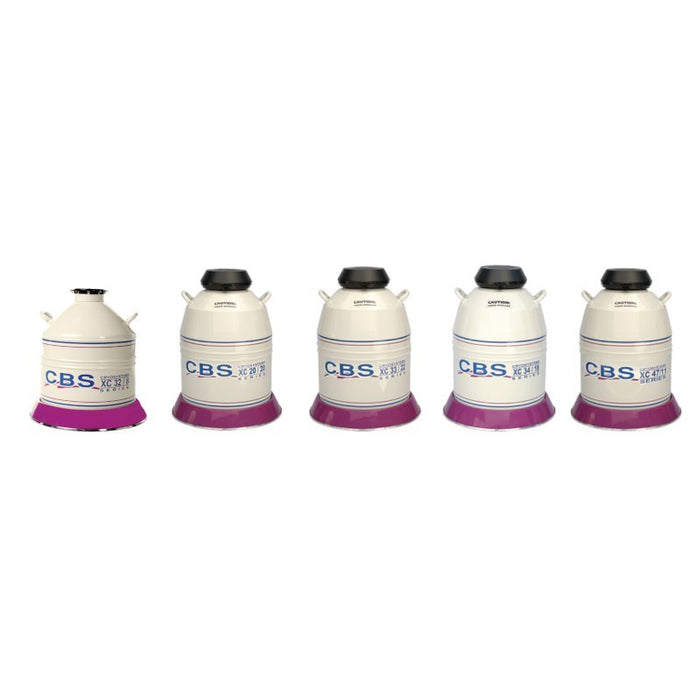

The cryosystems XC series tanks have capacities ranging from 700–5000 straws and 150 to over 1000 vials.

Product Range

SKU Name
CB20B Custom Biogenic Systems - CB20B - Series XC20/20 Cryosystems with 6 Canisters and Roller Base, Battery Alarm
CB20L Custom Biogenic Systems - CB20L - Series XC20/20 Cryosystems with 6 Canisters and Roller Base, 110V Alarm
CB20R Custom Biogenic Systems - CB20R - Series XC20/20 Cryosystems with Canisters and Roller Base

Features

Series XC20/20 with 6 canisters & roller base


The Cryosystems XC Series tanks have capacities ranging from 700-5000 straws and 150 to over 1000 vials.


Manufactured to a world class level of excellence and backed by an industry-leading 5 year vacuum warranty, these durable, lightweight units can be relied on to perform in the most demanding of environments.


  • Lockable hinged lids
  • Convenient, lightweight package
  • Low liquid nitrogen consumption
  • Designed for large capacity storage
  • Programs and freeze data saved to hard drive or disc
  • Password protected software
  • Searchable database for freeze run history
  • Freeze run graphs and data available via any standard USB printer
  • 30 data fields available for each freeze run
  • Continuous digital and graph display for time and temperature during operation
  • Manual overrides for all operating functions
  • Temperature range +50°C to -180°C
  • Freezing rates of 0.01° to 99.9° per minute
  • Program temperature hold of 1 second to 99 hours
  • Six pre-set easy to run freeze programs

Specifications

Overview

  • Nominal Height:
    25.70" (65.28 cm)

Technical Data

  • Number of Canisters:
    6
  • Number of 1.2 & 2 ml Vials 5/Cane:
    210
  • Number of 1/2 CC Straws 10/Cane:
    780
  • Number of 1/2 CC Straws 1 Level Bulk:
    1,122

Liquid Nitrogen Usage & Capacities

  • Liquid Nitrogen Capacity (liters):
    20.5
  • Static Evaporation Rate (liters per day):
    0.09
  • Normal Working Days:
    140

Dimensions

  • Neck Opening in (mm):
    2.18 (55.4)
  • Overall Height in (mm):
    25.7 (652)
  • Outside Diameter in (mm):
    14.5 (368)
  • Canister Height in (mm):
    11 (279)
  • Canister Diameter in (mm):
    1.65 (41.9)
  • Weight Empty lbs. (kg):
    26 (11.8)
  • Weight Full lbs. (kg):
    62.5 (28.3)
