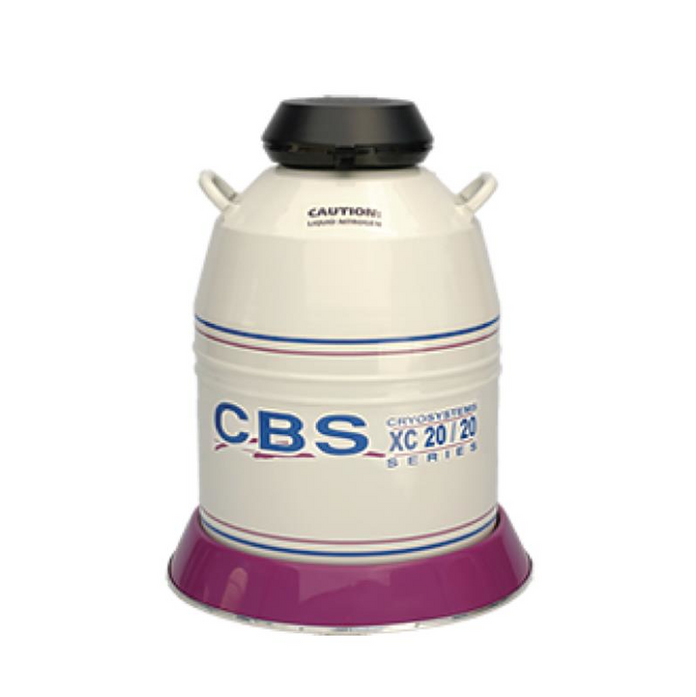

Custom Biogenic Systems - CB20R - Series XC20/20 Cryosystems with Canisters and Roller Base
Features

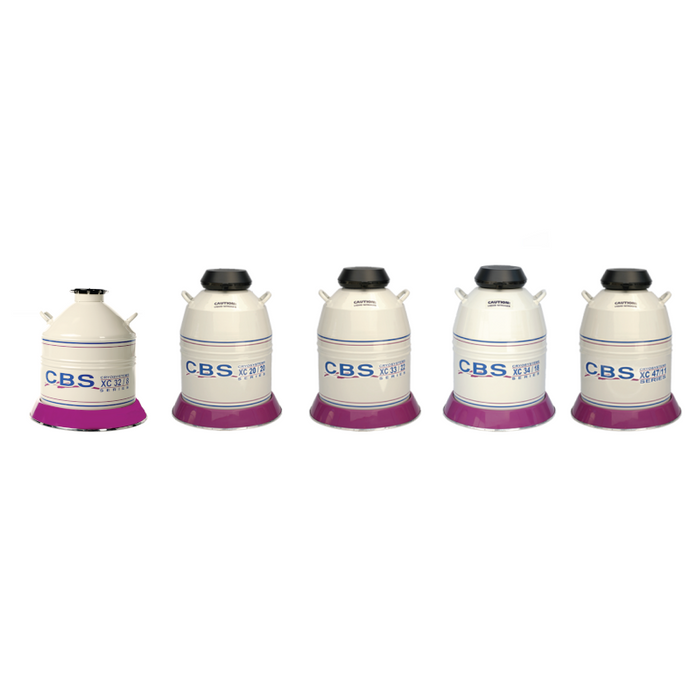

Cryosystems XC Series
The Cryosystems XC Series tanks have capacities ranging from 700-5000 straws and 150 to over 1000 vials.
Manufactured to a world class level of excellence and backed by an industry-leading 5 year vacuum warranty, these durable, lightweight units can be relied on to perform in the most demanding of environments.
Key Features
- Lockable hinged lids.
- Convenient, lightweight package.
- Low liquid nitrogen consumption.
- Designed for large capacity storage.
- Easy access to store or retrieve samples.
- Square racks with boxes or canister and cane storage.
- Alarm options: add on.
- VersAlert remote wireless monitor.
Alarm Options
- BAT-1B
- LA-2B Liquid Level Alarm
Available Accessories
- LN2 Level Stick
- Phase Separator
- Cryo Gloves
- LN2 TransferHose
- “Y” Connector
- “T” Valve
- Canes and Straws
- Roller Base
Specifications
Overview
-
Nominal Height:25.70" (65.28 cm)
Technical Data
-
Number of Canisters:6
-
Number of 1.2 & 2 ml Vials 5 Cane:210
-
Number of 1/2 cc Straws 10 Cane:780
-
Number of 1/2 cc Straws 1 Level Bulk:1,122
Liquid Nitrogen Usage & Capacities
-
Liquid Nitrogen Capacity (Liters):20.5
-
Static Evaporation Rate (Liters Per Day):0.09
-
Normal Working Days:140
Dimensions
-
Neck Opening in (mm):2.18 (55.4)
-
Overall Height in (mm):25.7 (652)
-
Outside Diameter in (mm):14.5 (368)
-
Canister Height in (mm):11 (279)
-
Canister Diameter in (mm):1.65 (41.9)
-
Weight Empty lbs. (kg):26 (11.8)
-
Weight Full lbs. (kg):62.5 (28.3)
