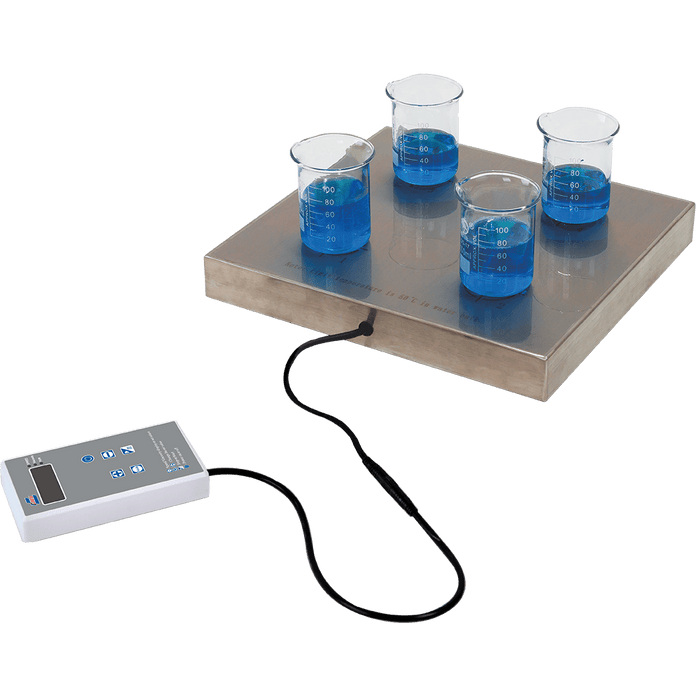

Crystal Industries - MS-04BSUA - 4-Position Magnetic Stirrer
Features
This Multi-Position Magnetic Stirrer base is fully submersible, ideal for Water Bath or CO2 Incubator. A remote panel allows for full control while in operation.
- Sealed stainless steel plate protects against intrusion and guarantees reliability
- Waterproof body for use in a water bath. Protection Level: IP21 (Control), IP68S (Platform)
- Magnetic coil drive mechanism provides long & quiet operation
- Five stirring levels provide excellent mixing capability, including liquids with high viscosity
- The previous setting is automatically saved when restarting the unit
Specifications
Overview
Technical Data
-
Speed:80 ~ 2000 RPM
-
Speed Accuracy:±10%
-
Max Stirrer Bar Length:≤50 mm (1.97 inch)
-
Platform Dimensions:250 x 254 mm (9.84 x 10 inch)
-
Number of Stirring Positions:4
-
Capacity:4 x 1000ml
-
Control Interface:Control Box
-
Accessories Included in Standard Packaging:1 x MSA04 (Φ12 x 30 mm)
-
Platform Ambient Temperature:5°C ~ 50°C
-
Control Box Ambient Temperature:5°C ~ 40°C (Must be Kept Out of Water)
-
Platform Ambient Relative Humidity:100%
-
Control Box Ambient Relative Humidity:≤80%
-
Power Supply:AC100~240V, 50/60Hz
-
Max Power:20W
-
Platform Material:304 Stainless Steel
-
Net Weight:19.84 lb (9 kg)
-
Protection Level:IP68S for Host Module, IP21 for Control Line
-
Certifications:CE
