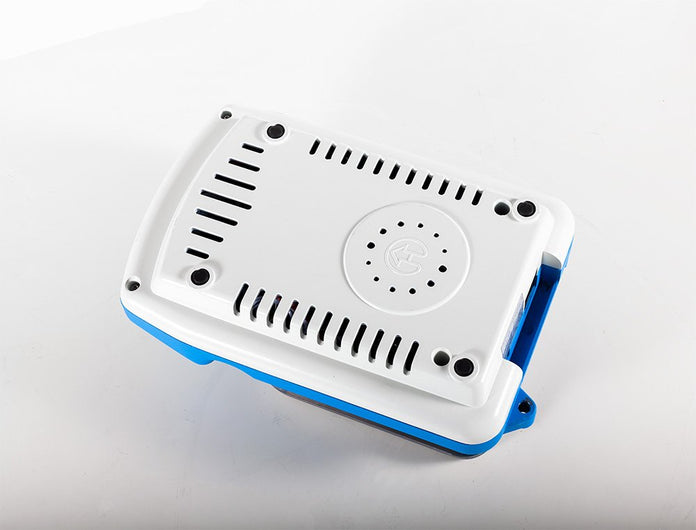

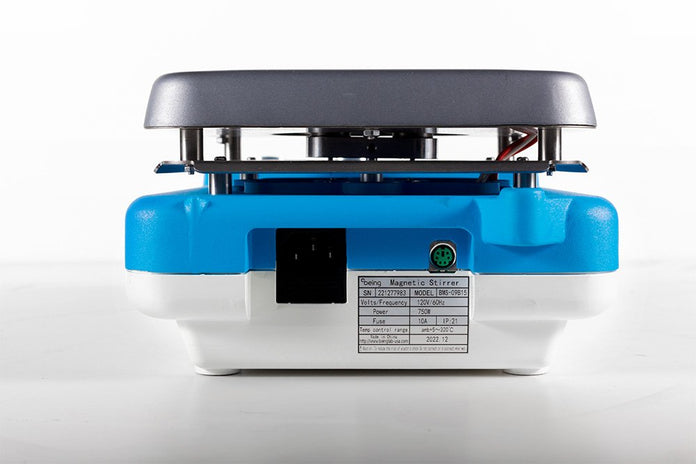

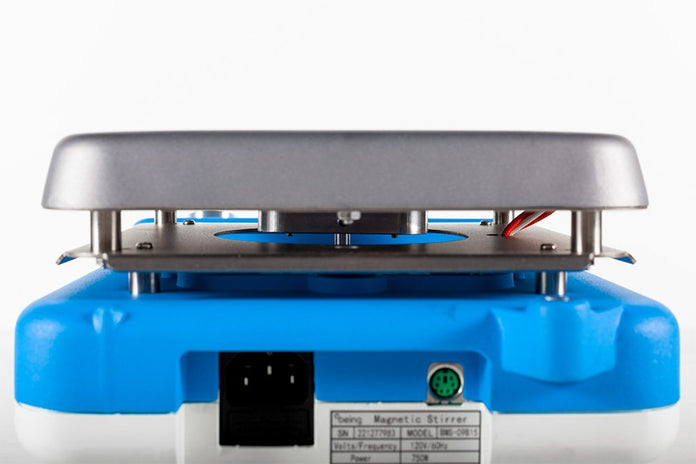

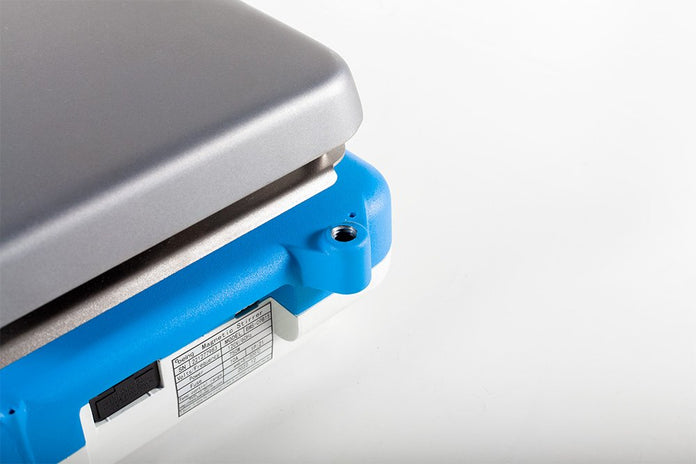

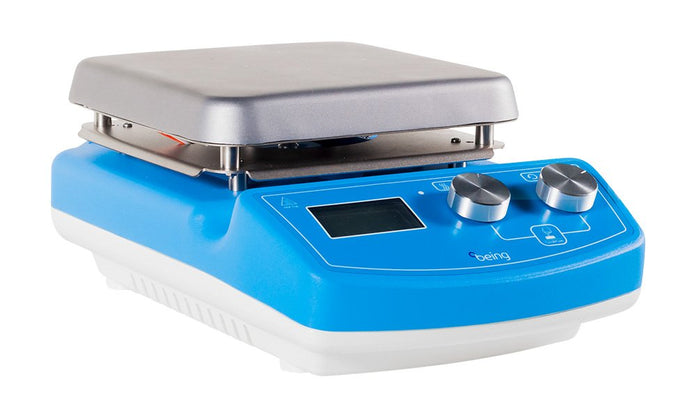

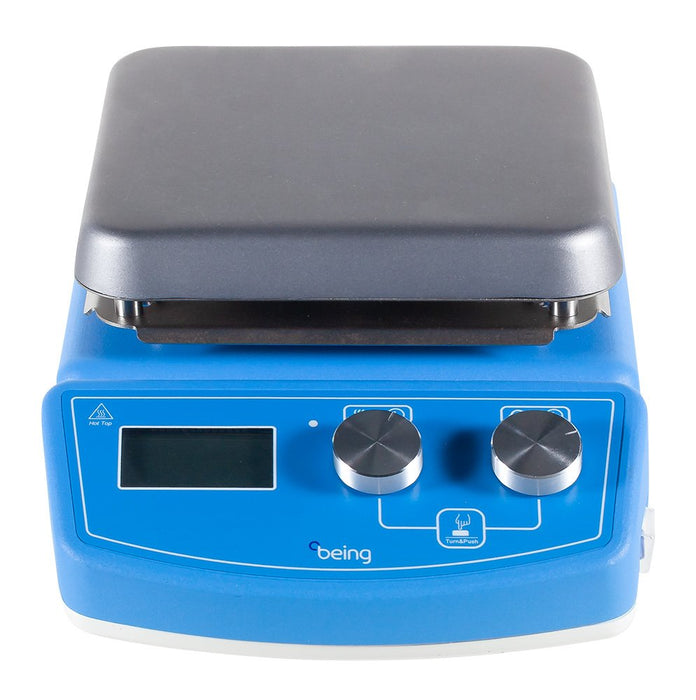

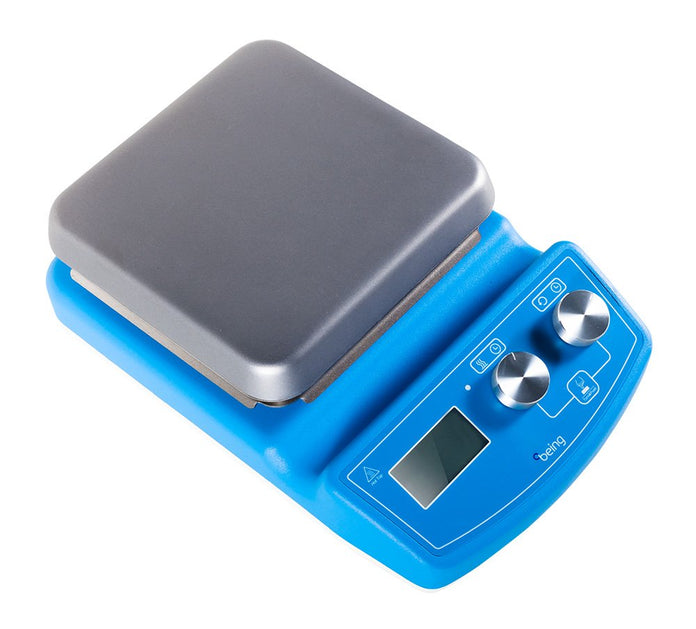

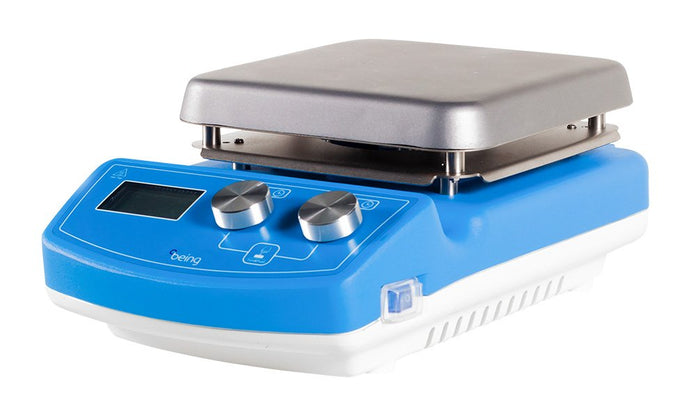

Being - BMS-07B3 - Square Plate Magnetic Heated Stirrer, 3L B
Features
The BEING Magnetic Heated Stirrers offer a large variety of sizes and temperature ranges to accommodate your laboratory needs. Our stirrers provide a user friendly PID controller offering a large LCD color screen for easy viewing. They are constructed for durability, high performance and safety.
Performance and Features
- Microprocessor PID control
- Automatic Calibration Function
- Durable and accurate brushless DC motors
- Wide speed range even with heavy workloads
- Ceramic cover provides high thermal efficiency
Convenience

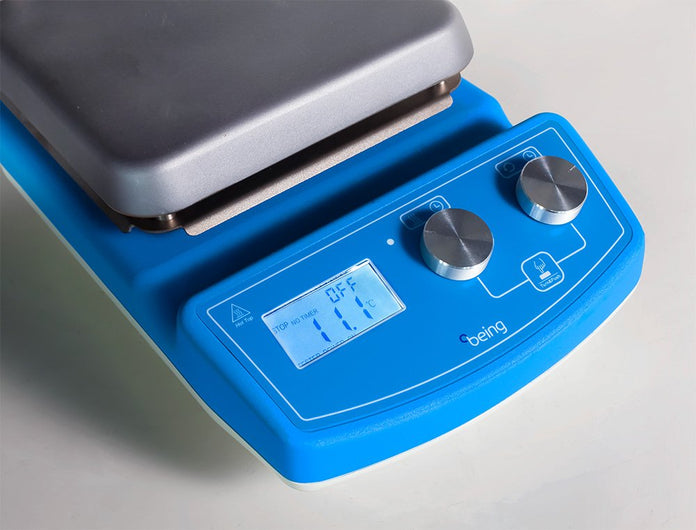

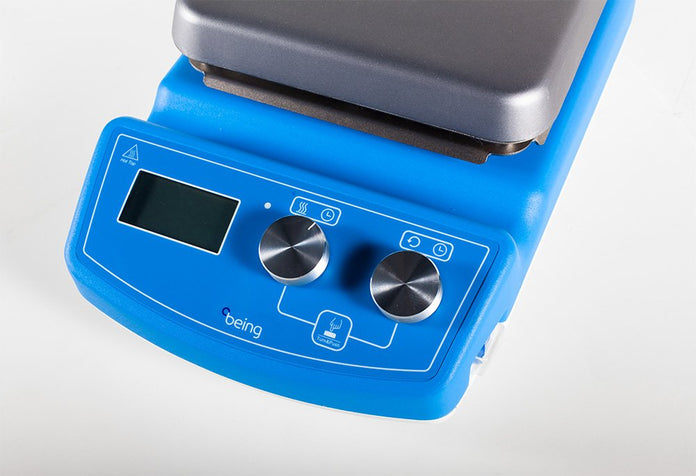

- Large LCD display screen and interface provides for user-friendly operation
- Maintenance-free operation with easy to clean surface
- Easy to set Adjustable Timer.(1 minute to 5,999 minutes)
Safety & Peace of Mind
- Built-in power interruption protection function, automatic run after power interruption
- Smooth Start/Shutdown System prevents spillage of stirring samples no matter what the speed setting
- Temperature deviation alarm
- Too Hot to Touch Heating Plate Light
Specifications
Overview
-
Nominal Height:4.3" (10.92 cm)
-
Nominal Width:5.9" (14.99 cm)
-
Nominal Length:9.8" (24.89 cm)
Technical Data
-
Stirring Capacity (H2O):3L
-
Plate Dimension (WxD):5.1" x 5.1" (130mm x 130mm)
-
Max Heating Power:350W
-
Liquid Temperature Range:Ambient +5°C to 320°C
-
Net Weight:3.5kg
-
Speed Range (rpm):200 - 2000rpm
-
Temperature Accuracy:±15°C
-
Electrical Plug Type:NEMA 5-15
-
Power Supply:AC120V/60Hz
-
Hot Top Indicator:Warning lamp
-
Over Current:Current limit protection
-
Motor:BLDC motor
-
Top Plate Shape:Square type
-
Top Plate Material:Ceramic coated aluminum
-
Body Shape:Straight body
-
Body Material:Aluminum
-
Catalog Number:BMB150703U
-
Warranty:2 years
