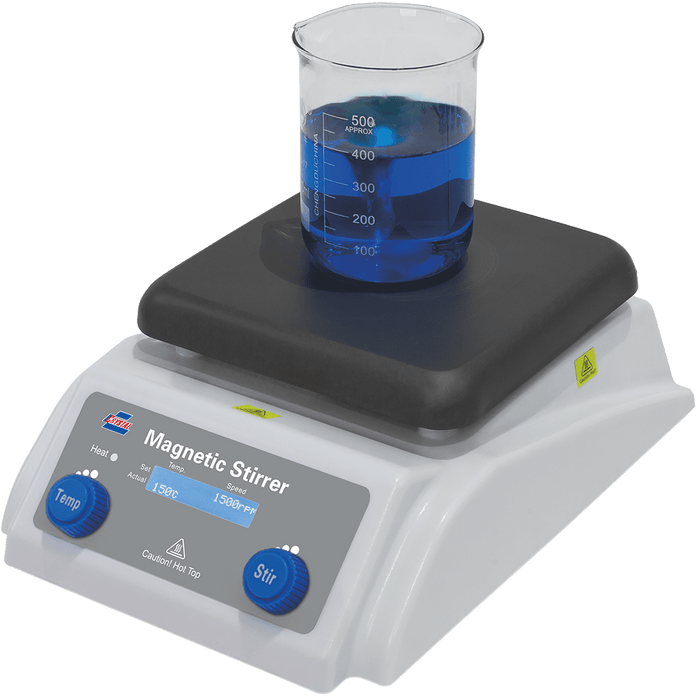

Crystal Industries - MS-01HA - Digital Hotplate Stirrer
Features
Digital Hotplate Stirrers are ideal for general lab applications such as mixing reagents and stirring bacteriological cultures. Constructed of anodized high-grade aluminum alloy (MS-01HA) or white glass-ceramic (MS-01H7A And MS-01H10A) ensure these units are durable and highly resistant to corrosion. The aluminum body and brushless motor provide maintenance-free operation.
- Fast heat time is less than 8 minutes for plates to rise from ambient to 300°C
- A Brushless DC motor provides accurate stirring speed and maintenance-free operation
- These plates have strong magnets to prevent loss of stirring speed
- When the plate is hot during operation, a warning light flashes
- Automatic shut-off if plate's temperature exceeds model limits or shows no temperature rise after 30 seconds of heating
- External temperature probe connector
Specifications
Overview
-
Nominal Height:5.1" (12.95 cm)
-
Nominal Width:9.5" (24.13 cm)
-
Nominal Length:14" (35.56 cm)
Technical Data
-
Stirring Speed:0 (stop), 80~1500 RPM
-
Speed Resolution:10 RPM
-
Plate Temperature:Ambient ~ 300℃
-
Temperature Accuracy:@100℃ ≤±10℃
-
Temperature Fluctuation:@100℃ ≤±5℃
-
Temperature Resolution:0.1℃
-
Safety Shut Off Temperature:360℃
-
Max Stirrer Bar Length:80 mm (3.1 inch)
-
Platform Size:175 x 175 mm (6.9 x 6.9 inch)
-
Capacity:10L
-
Platform Material:Aluminum
-
Number of Stirring Positions:1
-
Accessory Included in Standard Package:MSA15 Stirrer BarØ12x50 mm (Ø0.47 x 1.97 inch)
-
Display:LCD
-
Operating Environment - Ambient Temperature:5℃~40℃
-
Operating Environment - Ambient Relative Humidity:≤80%
-
Max Power:1000W
-
Power Supply:AC 110V±11V, 60Hz
-
Weight:4.5 kg (9.9 lb)
