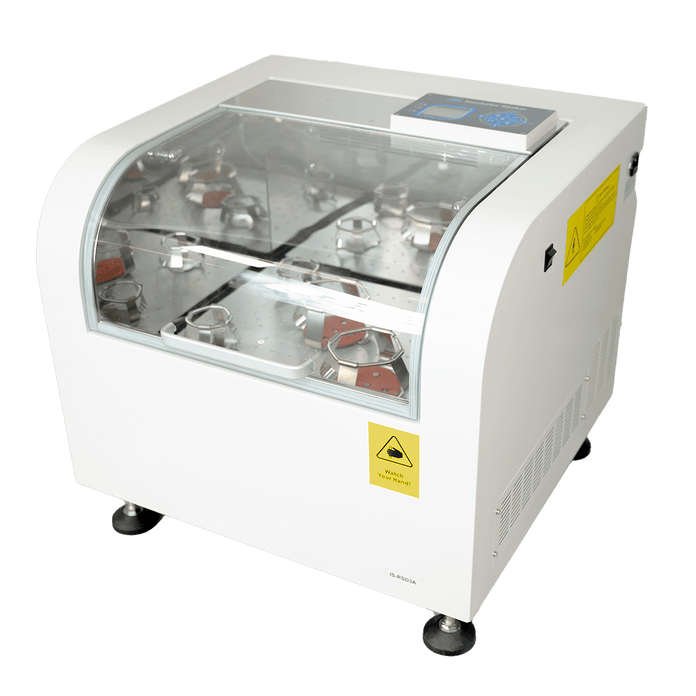

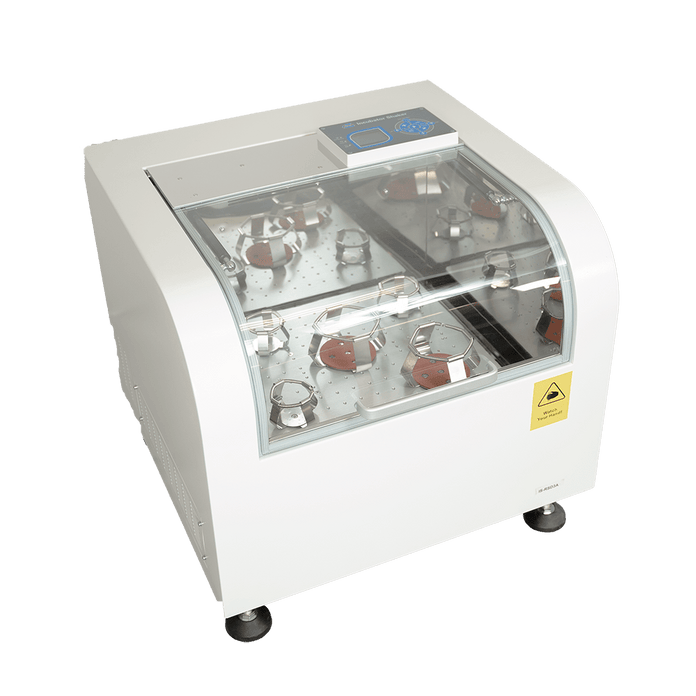

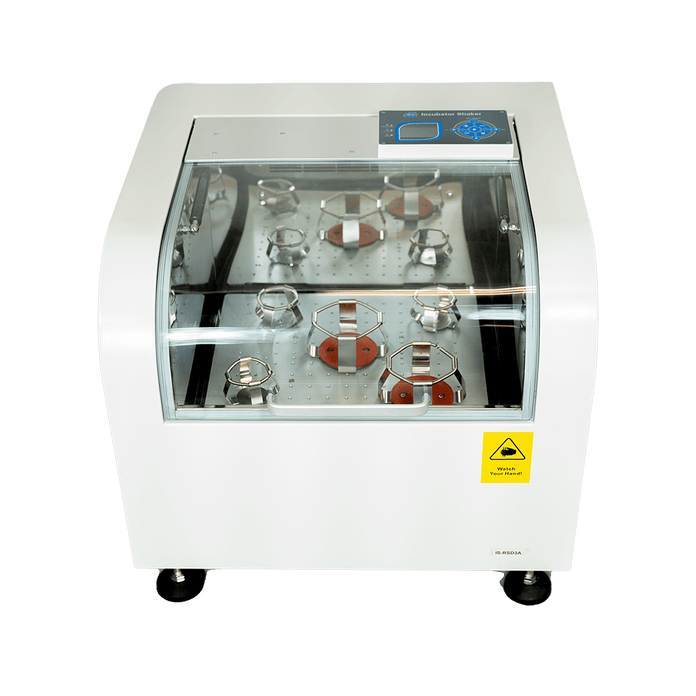

Crystal Industries - IS-RDD3A - Top-Hinge Incubator Shaker with Cooling

Crystal Industries - IS-RDD3A - Top-Hinge Incubator Shaker with Cooling
Crystal Industries - IS-RDD3A - Top-Hinge Incubator Shaker with Cooling
Crystal Industries - IS-RDD3A - Top-Hinge Incubator Shaker with Cooling

Crystal Industries - IS-RDD3A - Top-Hinge Incubator Shaker with Cooling

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Top-hinge incubator shaker, with refrigeration, includes 45 x 40 cm platform.

Features

Crystal's Technology and Industries versatile Benchtop incubator shakers with optional refrigeration (IS-RDD3A has a built-in refrigeration module with auto-defrost) are designed to provide an optimal environment to safely shake flasks, tube racks, and micro-plates. These incubators are quiet, easy to operate, and convenient to load. Incubator Shakers are ideal for cell culture, solubility studies, extraction procedures, protein expression, and many other applications.



  • Easy to use LCD user interface
  • Precise Proportional-Integral-Derivative temperature control resulting in ±0.1°C accuracy
  • A highly efficient inverted compressor refrigeration system allows for temperatures as low as 15°C below room temperature or 4°C with low energy consumption (IS-RDD3A only)
  • Clear curved tempered glass window for viewing samples without disturbing chamber temperature
  • The terminal feedback system ensures precise shaking speed
  • Designed to reduce noise for quiet operation
  • Max capacity is 8 x 1L flasks
  • Timer 0~999 hours
  • Audible and visual alarms activate when abnormal parameters are detected
  • The program mode allows users to set up to 6 segments of varying temperature and speed



Watch the video

Specifications

Overview

  • Nominal Height:
    24.72" (62.79 cm)
  • Nominal Width:
    28.03" (71.2 cm)
  • Nominal Length:
    27.05" (68.71 cm)
  • Internal Height:
    13.78" (35.0 cm)
  • Internal Width:
    19.67" (49.96 cm)
  • Internal Length:
    18.11" (46.0 cm)

Technical Data

  • Temp. Range:
    Ambient -15°C~60°C (Minimum
  • Temp. Accuracy:
    0.1°C
  • Temp. Uniformity:
    ±0.5°C (@37°C)
  • Speed Range:
    0 rpm, 30 rpm - 400 rpm
  • Speed Accuracy:
    ±1 rpm
  • Orbit Diameter:
    026 mm
  • Programmable Segments:
    6 Segments
  • Timer:
    0-999 hrs
  • Platform Size:
    450 x 400 mm (17.72 x 15.75 inch)
  • Number of Platforms:
    1
  • Maximum Capacity - Clamp Capacity:
    42x50ml, 25x100ml, 24x150ml, 20x200ml, 20x250ml, 12x500ml, 8x1000ml, 4x2000ml
  • Maximum Capacity - Sticky Mat:
    56x50ml, 42x100ml, 30x150ml, 30x200ml, 24x250ml, 20x300ml, 14x500ml, 9x1000ml, 4x2000ml
  • Power:
    <700 W
  • Power Supply:
    AC 110V/60Hz
  • Working Chamber Height:
    310 mm (12.2 inch)
  • Net Weight:
    242 lb (110 kg)
  • Certification:
    CE, UL, CUL
