Amerex's GYROMAX™ and SteadyShake™ orbital shakers incorporate design features that offer quiet, maintenance-free shaking under a constant and reproducible temperature environment. Eleven different models meet the needs of most biological research laboratories for shaking under a precisely controlled temperature environment are available in four basic housing configurations.

Features

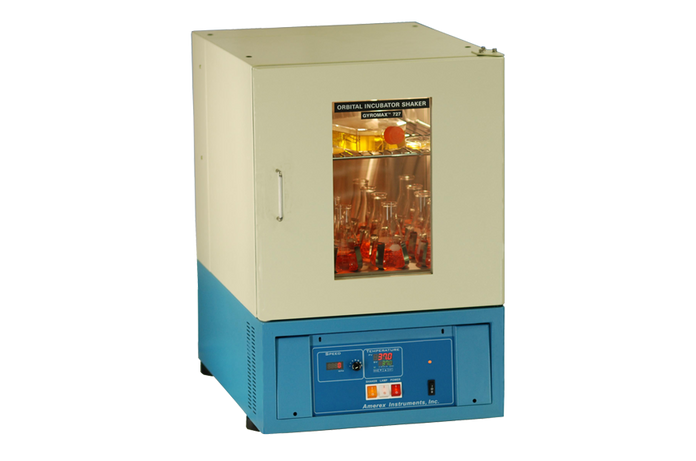

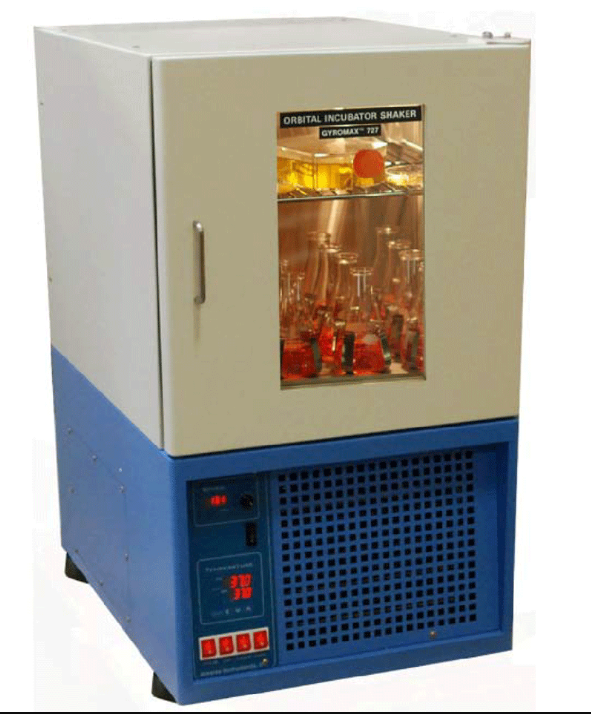

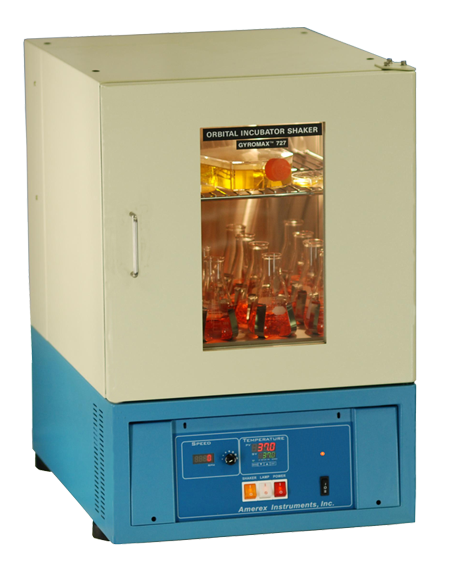

The GYROMAXTM 727R orbital, refrigerated incubator shaker is a benchtop model with the added benefit of an adjustable shelf for incubation. The double-walled construction, with 1.25" of insulation and a triple-paned viewing glass window, minimizes heat loss. This construction, together with an efficient circulation system, ensures unrivaled optimum temperature uniformity throughout the chamber.



The temperature is microprocessor controlled and is monitored accurately by a Pt-100 RTD. It is digitally and reproducibly set from a membrane keypad and displayed by an LED to 0.1oC. The working temperature is from 4oC to 80oC. Independent high and low limit thermostats protect valuable samples by preventing the chamber from overheating and overcooling. You can program the timer for up to 99 hours and 59 minutes or for continuous operation.



A large, quiet fan ensures air and temperature uniformity throughout the stainless steel chamber. A brushless, drive motor generates speeds from 40 to 400 RPM that is displayed digitally. At the same RPM, the standard shaking orbit of 25 mm provides a higher oxygen transfer rate (OTR) compared with shakers with a 19 mm orbit because OTR is directly proportional to orbit size. The motor incorporates a built-in fan that lowers the operating temperature, thereby prolonging its life. A tripleeccentric drive with counter-balancing weights provides stable shaking of heavy loads without the need for adjustments as the load increases. The shaking stops when the door is opened. The chamber lamp is turned on and off with a switch on the control panel. The 15” x 15" platform can accommodate Erlenmeyer flasks up to 4 liters.



Optional Accessories Include: Platforms, clamps, spring racks, tube racks, and plate holders. Platform holes are drilled to accommodate the different clamps purchased. The versatile spring rack is designed for holding tubes in a horizontal, angled, or upright position. It can also be used to hold flasks up to 1-liter without clamps. The rack consists of a 2-tier grid of springs. The distance between spring racks is adjustable to accommodate tubes and flasks of different heights. They are mounted onto the platform by four screws.

Specifications

Overview

  • Nominal Height:
    35.5" (90.17 cm)
  • Nominal Width:
    20" (50.8 cm)
  • Nominal Length:
    27.5" (69.85 cm)

Technical Data

  • Temperature Range:
    4ºC to 80ºC
  • Temperature Control: :
    PID microprocessor temperature controller, Pt-100 RTD sensor
  • Temperature Display:
    Digital to 0.1ºC
  • Accuracy/Uniformity:
    ±0.1ºC/±0.5ºC at 37ºC
  • Speed Range:
    40 to 400 RPM
  • Display:
    Digital
  • Orbit:
    25mm (1") orbit providers higher oxygen transfer rate than 19mm
  • Timer:
    Programmable up to 99 hours 59 minutes or for continuous operation
  • Insulation:
    1.25" double wall housing w/ polyurethane insulation minimizes heat loss
  • Shelf: One supplied:
    additional shelves optional
  • Viewing Window:
    Triple-pane 1.25" (30mm) thick
  • Spring Rack:
    Accommodates an accessory spring rack that can shake flasks up to 1-L without the use of clips or clamps as well as 15-mL or 50-mL Falcon tubes placed horizontally, vertically, or at 45º to the platform
  • Other Accessories:
    Platform, clamps, spring racks, tube racks, and plate holders
  • Drive:
    Triple-eccentric drive with counter-balancing weights provides stable shaking of heavy loads without the need for adjustments as the load increases
  • Motor:
    Maintenance-free, brushless motor with a built-in cooling fan
  • Chamber Dimensions:
    17.7"W x 17.9"D x 17.3"H (450mm x 455mm x 440mm)
  • Platform Dimensions:
    15"W x 15"D (380mm x 380mm)
  • Overall Dimensions:
    20"W x 27.5"D x 35.5"H (510mm x 700mm x 910mm)
  • Power Source:
    120V or 220V, 50/60Hz, 11A
  • Warranty:
    2 years
