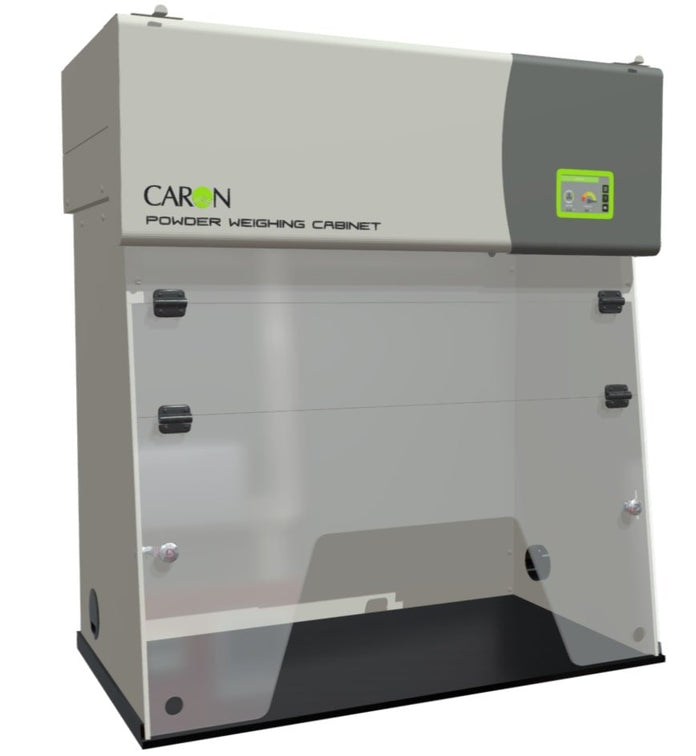

Caron - XP0804 - Micro Balance Powder Weighing Cabinets

Caron - XP0804 - Micro Balance Powder Weighing Cabinets

Caron - XP0804 - Micro Balance Powder Weighing Cabinets

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Experience precision and safety with Caron Powder Weighing Cabinets, designed to suit all your weighing needs. Whether you require compact units for basic 3-decimal balances or full-sized units for micro balance precision up to 6 decimals, Caron has the perfect solution.

Product Range

SKU Name
XP0804-1 Caron - XP0804-1 - Micro Balance Powder Weighing Cabinets 800mm

Features

Designed for optimal focus, these cabinets boast quiet operation and 360-degree crystal-clear visibility. For added safety, select models come equipped with Caron's exclusive Safechange technology, allowing HEPA filter servicing under negative pressure without compromising safety. Choose Caron for precision, safety, and clarity in every measurement.


Key Features


  • A quiet operation
  • 800mm width, Clearview for 6 decimal weighing
  • 360-degree clear Clearview acrylic visibility
  • Select models are equipped with Safechange technology, allowing for HEPA filter removal under negative pressure, ensuring a secure and contaminant-free maintenance process.

Specifications

Overview

  • Nominal Height:
    45.08" (114.5 cm)
  • Nominal Width:
    32.28" (81.99 cm)
  • Nominal Length:
    22.44" (57.0 cm)
  • Internal Height:
    30.31" (76.99 cm)
  • Internal Width:
    31.89" (81.0 cm)
  • Internal Length:
    20.08" (51.0 cm)

General Specifications

  • Pre-Filter:
    Oiled pre-filter media eliminates particles >5µm to ISO 16890
  • Main-Filter:
    HEPA CLASS H-14 tested to EN 1822-1,2009, efficiency 99.995% @0.3μm MPPS
  • Opening Type:
    Open aperture
  • Face Velocity:
    >0.4m/s
  • Fan Control:
    Automatic, programmable nextion TFT fan & alarm control system
  • Airflow Alarm:
    Nextion TFT fan & alarm control system
  • Lighting:
    Integrated LED lighting
  • UV Light (optional):
    UVc
  • Sound Levels:
    Less than 50dBA at 1 meter
  • Finish Ext:
    Light grey, gloss finish, plastic coating
  • Weight:
    53 kg

Electrical

  • Operating Voltage & Frequency:
    230V +10% -6% 50 Hz
  • Current:
    8A
  • Load Amps:
    1.5A
  • Power Consumption:
    106.76W
