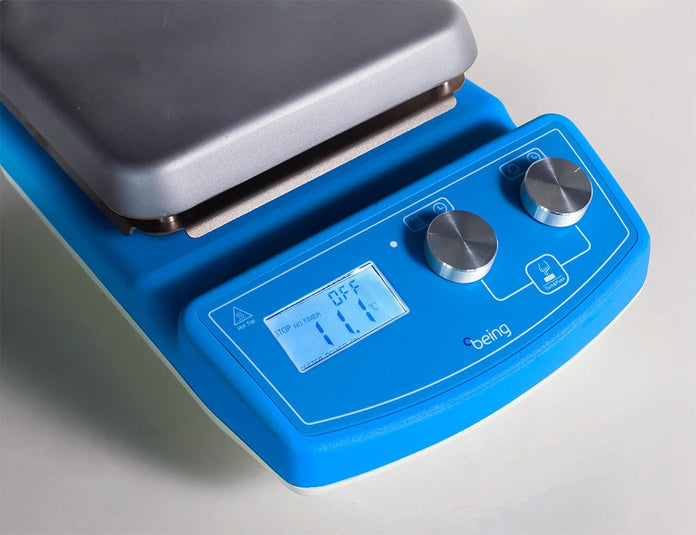

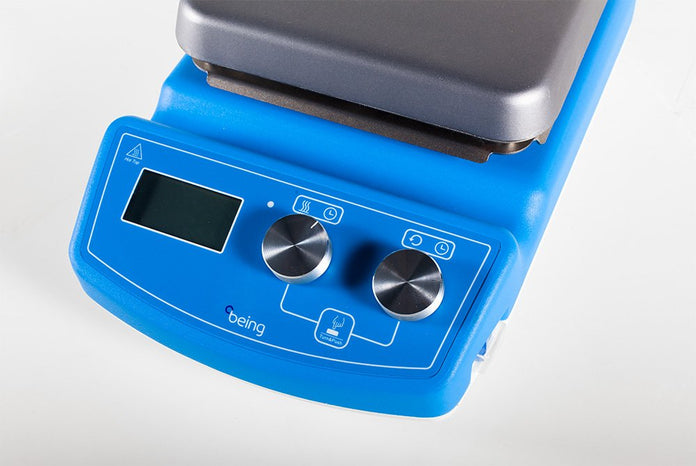

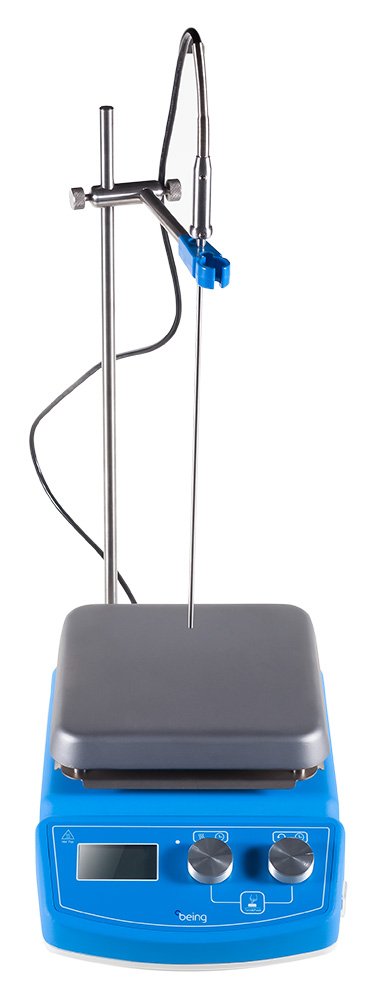

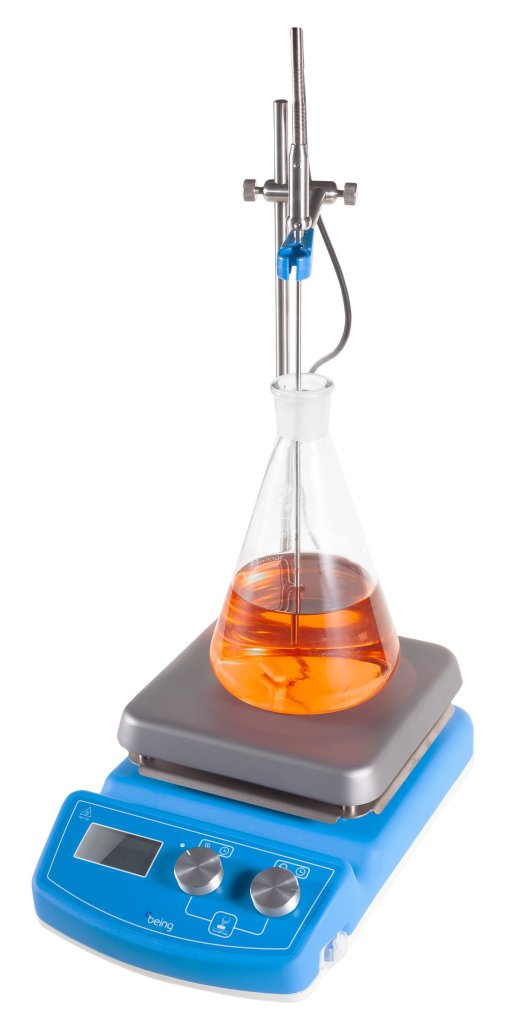

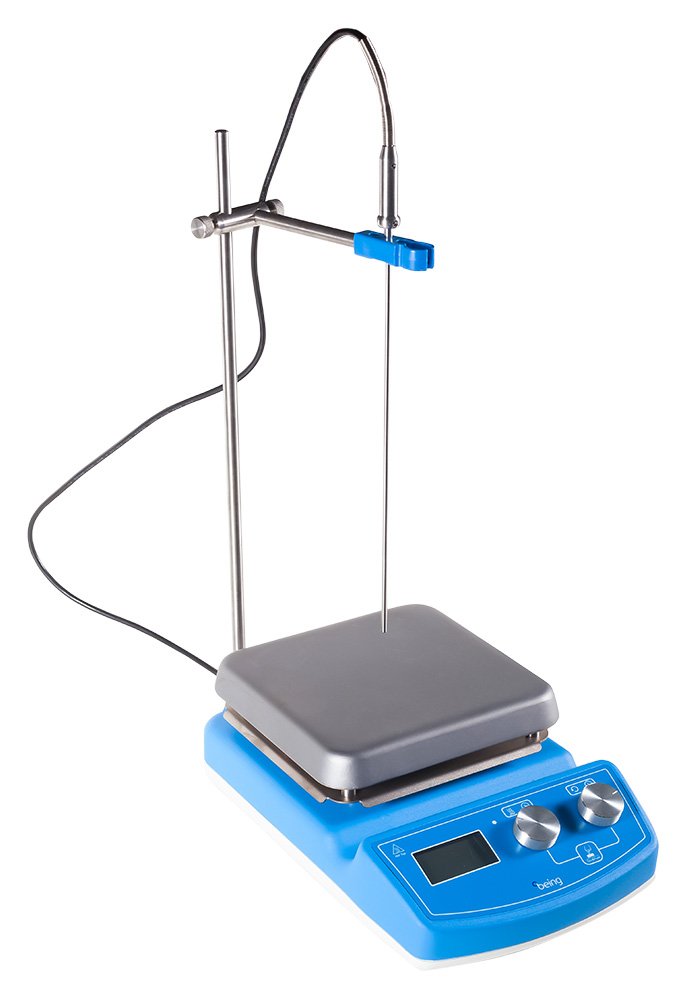

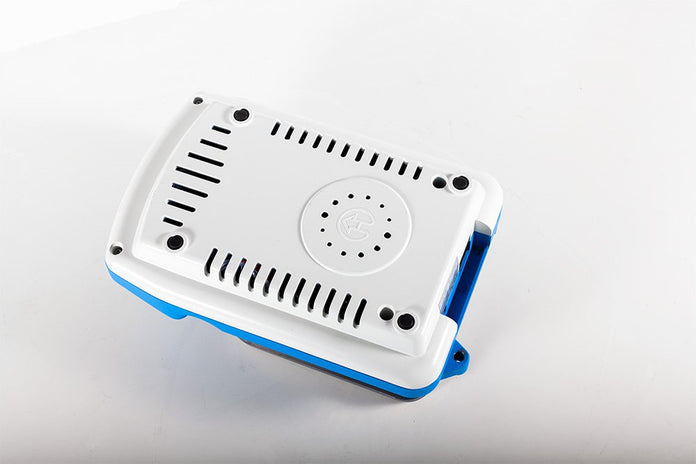

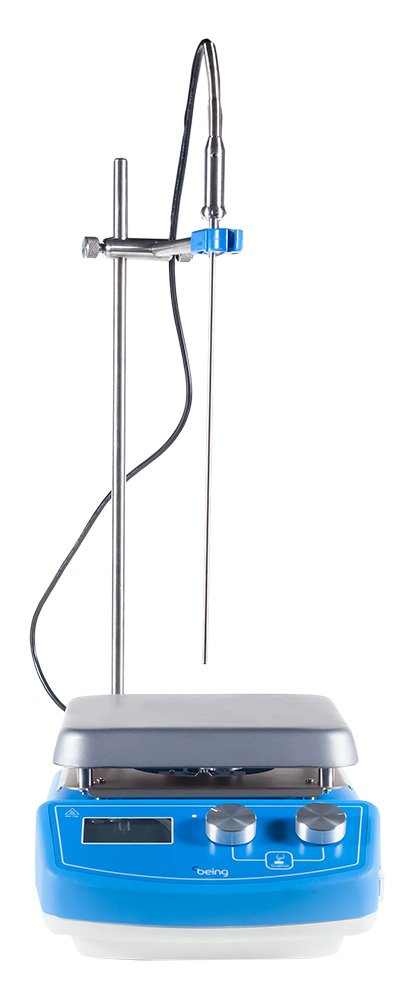

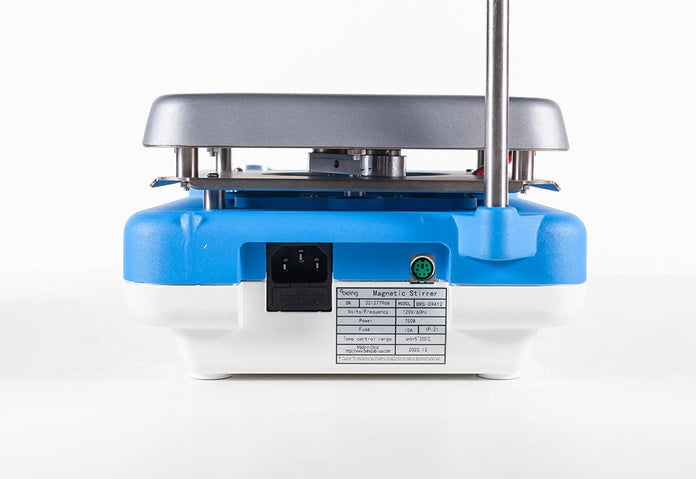

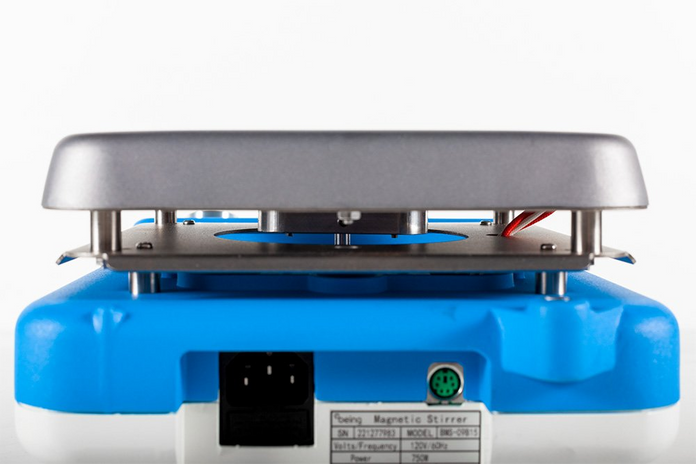

Being - BMA150905U - Square Plate Magnetic Heated Stirrer
Features
The BEING Magnetic Heated Stirrers offer a large variety of sizes and temperature ranges to accommodate your laboratory needs. Our stirrers provide a user-friendly PID controller offering a large LCD color screen for easy viewing. They are constructed for durability, high performance, and safety.
Performance and Features
- Microprocessor PID control.
- Automatic Calibration Function.
- Durable and accurate brushless DC motors.
- Wide speed range even with heavy workloads.
- Ceramic cover provides high thermal efficiency.
Convenience

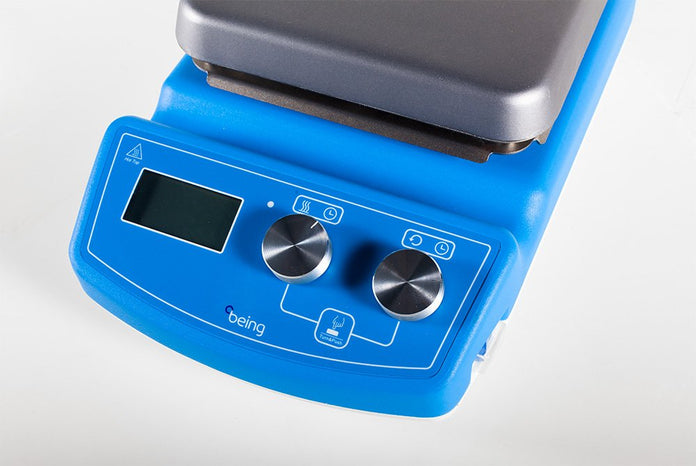

- Large LCD display screen and interface provides for user-friendly operation.
- Maintenance-free operation with easy-to-clean surface.
- Easy to set Adjustable Timer (1 minute to 5,999 minutes).
Safety & Peace of Mind
- Built-in power interruption protection function, automatic run after power interruption.
- Smooth Start/Shutdown System prevents spillage of stirring samples no matter what the speed setting.
- Temperature deviation alarm.
- Too Hot to Touch Heating Plate Light.
Specifications
Overview
-
Nominal Height:5.1" (12.95 cm)
-
Nominal Width:8.3" (21.08 cm)
-
Nominal Length:13" (33.02 cm)
Magnetic Hotplate Stirrer with Liquid Temperature Control Specifications
-
Max. Stirring Capacity:5L
-
Plate Dimension WxD:7.1 × 7.1 in (180 × 180 mm)
-
Speed Range:200 - 2000 rpm
-
Frequency Accuracy:±1 rpm
-
Control:LCD microprocessor PID
-
Temperature Range:Ambient +5°C to 200°C (Ambient +9°F to 392°F)
-
Temperature Accuracy:±0.3°C (±0.54°F)
-
Display Resolution:0.1
-
Timer:1~9959 mins
-
Heating Power:550W
-
Electrical Requirement:100V - 240V 50/60Hz
-
Electrical Plug Type:NEMA 5-15
-
Power Consumption:600W
-
Net Weight:11.0 Ib (5 kg)
-
Warranty:2 years
Downloads
-
BEING BMS Stirrers FlyerDownload
