-25°C to -10°C Biomedical freezer. Upright model 48 ft³. Energy star certified. Integrated data logger. Forced air cooling. Key lock security. SNAP/EPA compliant.

Features

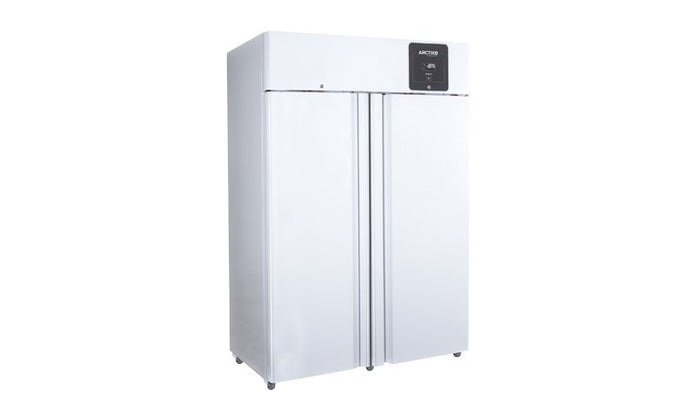

ARCTIKO's LF 1350 high-capacity upright freezer is a cutting-edge solution designed to meet the stringent requirements of biomedical applications. This low-energy eco-friendly biomedical freezer boasts a substantial capacity of 48 ft³ and precise temperature control within the range of -25 °C to -10 °C.



Energy Star Certified



Energy Star certified, guaranteeing exceptional energy efficiency and reduced environmental impact, while maintaining superior performance in temperature sensitive storage applications.



Integrated Data Logger



Combining accurate temperature monitoring for optimal sample storage and regulatory compliance, the integrated data logger empowers you with on-the-go control via detailed graphs, alarms, and settings accessible through your phone's Bluetooth connection to the unit's display.



Forced Air Cooling



Forced air cooling provides excellent temperature stability. Forcing the airflow around the stored items ensures quick temperature recovery after door openings.



Key Lock Security



Equipped with a secure key lock, providing an added layer of protection for valuable contents and preventing unauthorized access. This feature ensures the integrity and confidentiality of stored items, making it ideal for environments where security is paramount.



Alarm Functions



Visual and acoustic alarms for high/low temperature, open door, probe failure, power failure and low battery conditions ensure that you can react quickly in the unlikely event of a power, equipment or process issue.



SNAP/EPA Compliant Refrigerant



Utilizes refrigerants that are fully compliant with the Environmental Protection Agency (EPA) and the Significant New Alternatives Policy (SNAP) regulations, ensuring environmentally responsible operation without compromising performance or safety.

Specifications

Overview

  • Nominal Height:
    79" (200.66 cm)
  • Nominal Width:
    57" (144.78 cm)
  • Nominal Length:
    31" (78.74 cm)
  • Internal Height:
    60" (152.4 cm)
  • Internal Width:
    52" (132.08 cm)
  • Internal Length:
    26" (66.04 cm)
  • Capacity:
    48

Technical Data

  • Temperature Range:
    -25°C to -10°C
  • Max. Ambient Temperature:
    +40°C
  • Weight:
    485 lb (220 kg)
  • Insulation:
    2.36 in (60mm)
  • Cooling Technology:
    Forced Air
  • Controller Model / Probe Type:
    Carel IJS / NTC
  • Power Supply (V):
    115
  • Frequency (Hz):
    60
  • Power Consumption (kWh/24h):
    3.81
  • AMP (A):
    3.2
  • Power (Watt):
    290
  • Horse Power (HP):
    3/4

Refrigerant & Cabinet

  • Number of Compressors:
    1
  • Refrigerant:
    R290
  • Interior Cabinet Material:
    Hot-dipped galvanized steel, anticorrosion treated, PVC film coated
  • Exterior Cabinet Material:
    Hot-dipped galvanized steel, anticorrosion treated, PVC film coated
  • Colour (Exterior Cabinet):
    White
  • Foam Agent:
    Cyclopentane Polyurethane
  • VIP Vacuum Insulated Panels:
    No

Shipping

  • Shipping Weight:
    531 lb
  • Shipping Dimensions WxDxH:
    60 x 36 x 87 in
  • Shipping Volume:
    109.48 cu.ft
