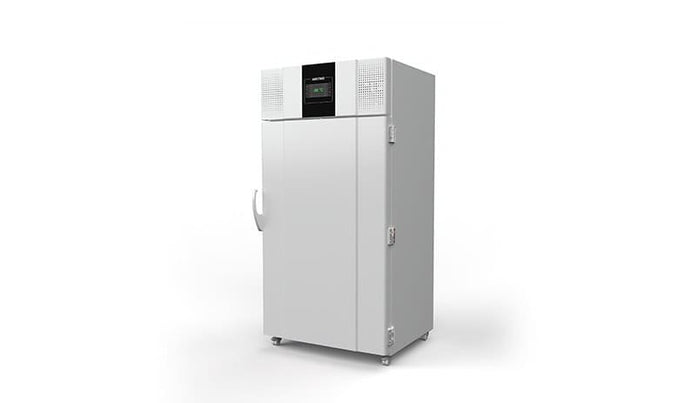

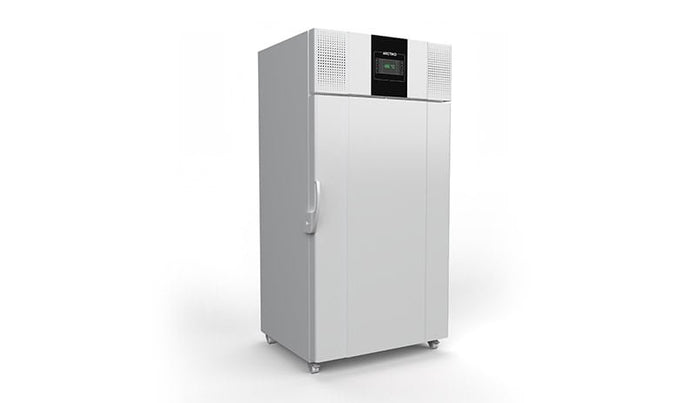

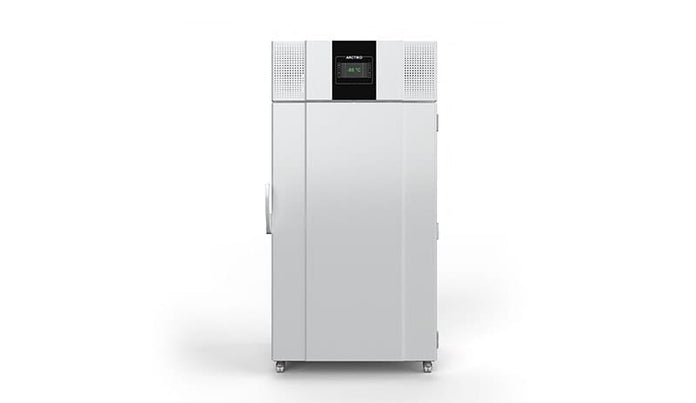

Arctiko - 1000049 - Large Upright Freezer ULUF P620 MV

Features
The ULUF P620 MV is a high-performance ultra-low temperature freezer designed for laboratories and research facilities requiring secure, long-term storage of sensitive biological samples, vaccines, and pharmaceuticals. Engineered with ARCTIKO's TRUE DUAL™ cooling technology, this freezer ensures continuous operation, maintaining temperatures as low as -86°C – even in the event of a compressor failure.
- Superior temperature stability: Reaches -80°C in under 4 hours and ensures rapid recovery after door openings.
- TRUE DUAL™ technology: A dual-compressor system provides backup cooling, keeping samples safe at -70°C in case of failure.
- Eco-friendly and energy-efficient: Utilises natural refrigerants with low global warming potential (GWP < 4), reducing environmental impact.
- Advanced security and control: A 7" touchscreen V700 controller with multiple alarms, RFID smart lock, and password protection for added security.
- Multi-voltage compatibility: Operates across 100–240V for seamless global integration without the need for adapters.
- Durable and ergonomic design: Features adjustable perforated shelves (holding up to 50 kg), a one-grip handle, and four insulated inner doors to minimise temperature loss.
- Comprehensive data logging: Includes a USB port for data downloads, optional RS485 connectivity, and temperature chart recording capabilities.
Combining cutting-edge technology with user-friendly features and environmental responsibility, the ULUF P620 MV is the ideal choice for laboratories needing reliable ultra-low temperature storage.
Specifications
Overview
-
Nominal Height:78.7" (199.9 cm)
-
Nominal Width:40.75" (103.51 cm)
-
Nominal Length:33.84" (85.95 cm)
-
Internal Height:51.97" (132.0 cm)
-
Internal Width:29.37" (74.6 cm)
-
Internal Length:24.41" (62.0 cm)
-
Capacity:21.7
Main Specifications
-
Temperature Range:-40°C to -86°C
-
Max. Ambient Temperature:32°C
-
Capacity (L):614
-
Weight (kg):247
-
Insulation (mm):120
-
Cooling Technology:Dual system / Static
-
Controller Model / Probe Type:V700 / Pt100
-
Power Supply Voltage (V):100 - 240
-
Frequency (Hz):50 / 60
-
Power Consumption (kWh/24h):8.4
Refrigerant & Cabinet
-
Number of Compressors:2
-
Refrigerant:GG20
-
Interior Cabinet Material:Stainless steel
-
Exterior Cabinet Material:Painted steel
-
Colour (Exterior Cabinet):White
-
Foam Type:Polyurethane
-
VIP Vacuum Insulated Panels:Yes
Shipping
-
Shipping Weight (kg):387
-
Shipping Dimensions WxDxH (cm):115 x 127 x 225
-
Shipping Volume (m³):3.29
Drawings
-
Wiring Diagram ULUF P620 MVVisit Link
Useful Links
-
Product Datasheet ULUF P620 MVVisit Link
-
Safety Datasheet GG20Visit Link
-
CE Certificate Integraline ULUF P620 MVVisit Link
