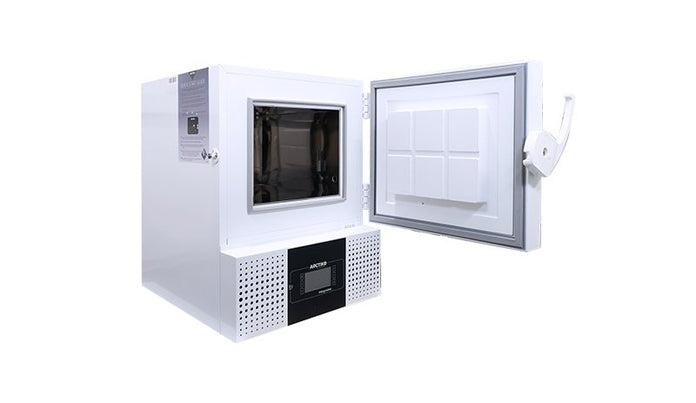

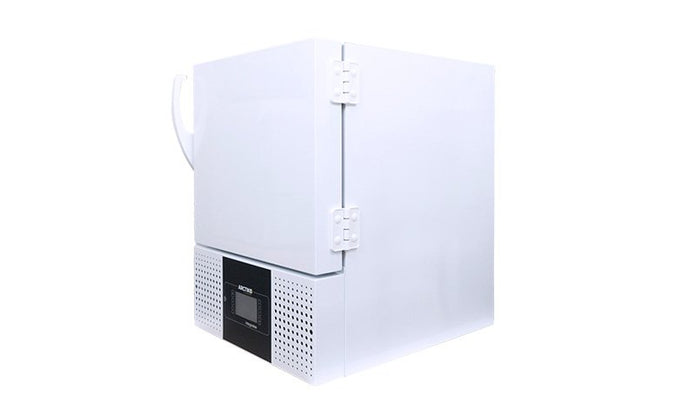

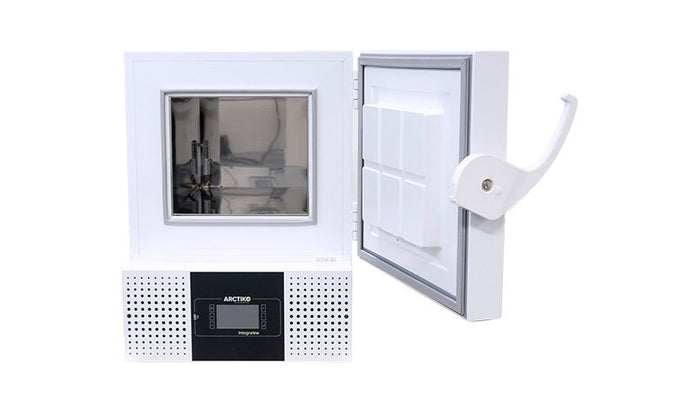

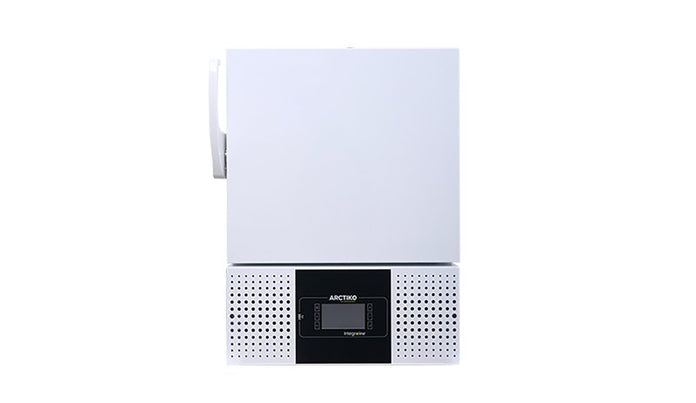

Arctiko - 1000002-01 - Small Benchtop Freezer ULUF P50 MV

Features
The compact freezer provides easy access to samples and flexible placement options in the workplace. It's ideal for positioning under or on your table, counter, or near your workstations. ARCTIKO's original single compressor technology ensures superior temperature uniformity and exceptional cooling performance, allowing you to focus on your research. Overall, this freezer offers a highly reliable solution for laboratory research, especially when your lab or clinical space is too limited for a full-size ULT freezer.
- Outstanding cooling performance with the true and unique single cooling system and natural refrigerant with ultra-low GWP (Global Warming Potential).
- Compact space-saving design makes the undercounter ULTs the perfect storage solution for laboratories with limited space.
- Single compressor technology with a simple structure ensures easy maintenance, lower heat dissipation, low energy consumption, and noise reduction for a pleasant work environment.
- Direct cooling for optimised temperature stability and uniformity, even with multiple door openings.
- Heated door frame prevents ice buildup around the gasket, securing a stable and uniform temperature inside the freezer.
- Low energy consumption made possible with ECO mode and ultra-efficient vacuum insulated panels.
- Self-diagnostic function to guarantee that your alarm system is always working correctly.
Specifications
Overview
-
Nominal Height:32.91" (83.59 cm)
-
Nominal Width:25.87" (65.71 cm)
-
Nominal Length:30.63" (77.8 cm)
-
Internal Height:12.1" (30.73 cm)
-
Internal Width:14.06" (35.71 cm)
-
Internal Length:17.44" (44.3 cm)
-
Capacity:1.8
Main Specifications
-
Temperature Range:-25°C to -86°C
-
Max. Ambient Temperature:32°C
-
Capacity (L):50
-
Weight (kg):82
-
Insulation (mm):120
-
Cooling Technology:Single system / Static inverter / MV
-
Controller Model / Probe Type:V500 / Pt100
-
Power Supply Voltage (V):110 - 230
-
Frequency (Hz):50 / 60
-
Power Consumption (kWh/24h):3.48
-
AMP (A):3.0 (110V) / 1.5A (230V)
-
Power (Watt):280
-
Horse Power (HP):3/4
Refrigerant & Cabinet
-
Number of Compressors:1
-
Refrigerant:Nature R2
-
Interior Cabinet Material:Stainless steel
-
Exterior Cabinet Material:Painted steel
-
Colour (Exterior Cabinet):White
-
Foam Agent:Polyurethane
-
VIP Vacuum Insulated Panels:Yes
Shipping
-
Shipping Weight (kg):109
-
Shipping Dimensions WxDxH (cm):83 x 75 x 103
-
Shipping Volume (m³):0.64
Drawings
-
Wire Drawing ULUF P50 MVVisit Link
-
Dimension Drawing ULUF P50 MVVisit Link
Useful Links
-
Product Datasheet ULUF P50 MVVisit Link
-
Safety Datasheet NatureRVisit Link
-
CE Certificate IntegralineVisit Link
-
ISO 9001Visit Link
-
Operating Instructions Integraline ULUF P10 P50 P90Visit Link
