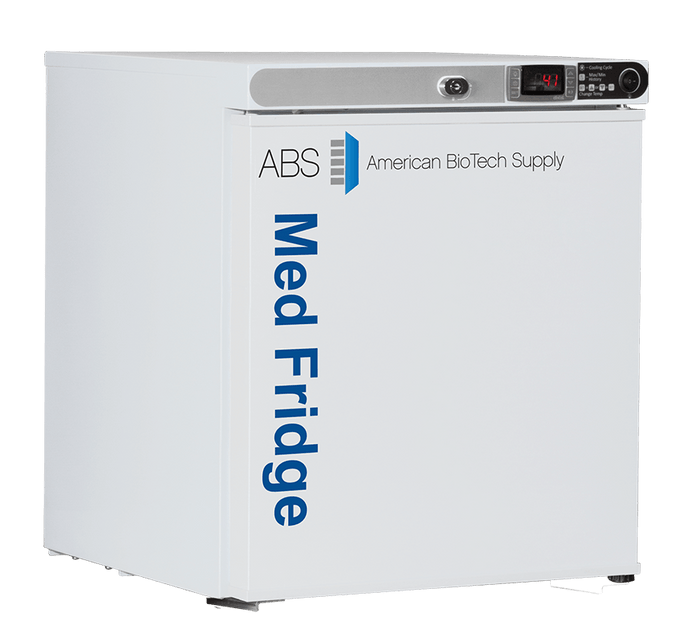

American Biotech Supply - PH-ABT-HC-UCFS-0104 - 1 Cu. Ft. Capacity Premier Pharmacy/Vaccine Countertop Refrigerator Freestanding

Product Range
| SKU | Name |
|---|---|
| PH-ABT-HC-UCFS-0104-LH | American Biotech Supply - PH-ABT-HC-UCFS-0104-LH - 1 Cu. Ft. Pharmacy Countertop Freestanding Refrigerator, Left Hinged |
| PH-ABT-HC-UCFS-0104G | American Biotech Supply - PH-ABT-HC-UCFS-0104G - 1 Cu. Ft. Pharmacy Countertop Freestanding Refrigerator with Glass Door |
| PH-ABT-HC-UCFS-0104G-LH | American Biotech Supply - PH-ABT-HC-UCFS-0104G-LH - 1 Cu. Ft. Pharmacy Countertop Freestanding Refrigerator With Glass Door, Left Hinged |
Features
The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Energy Star Certified.
Details
- 2 adjustable shelves
- Vaccine storage power cord warning label
- Forced draft circulation
- Keyed door lock
- Integrated door handle
- Magnetic door gasket for positive seal
- Leveling legs
- LED interior light
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
- Pyxis®, Omnicell® and AcuDose RX® compatible
Temp Controller

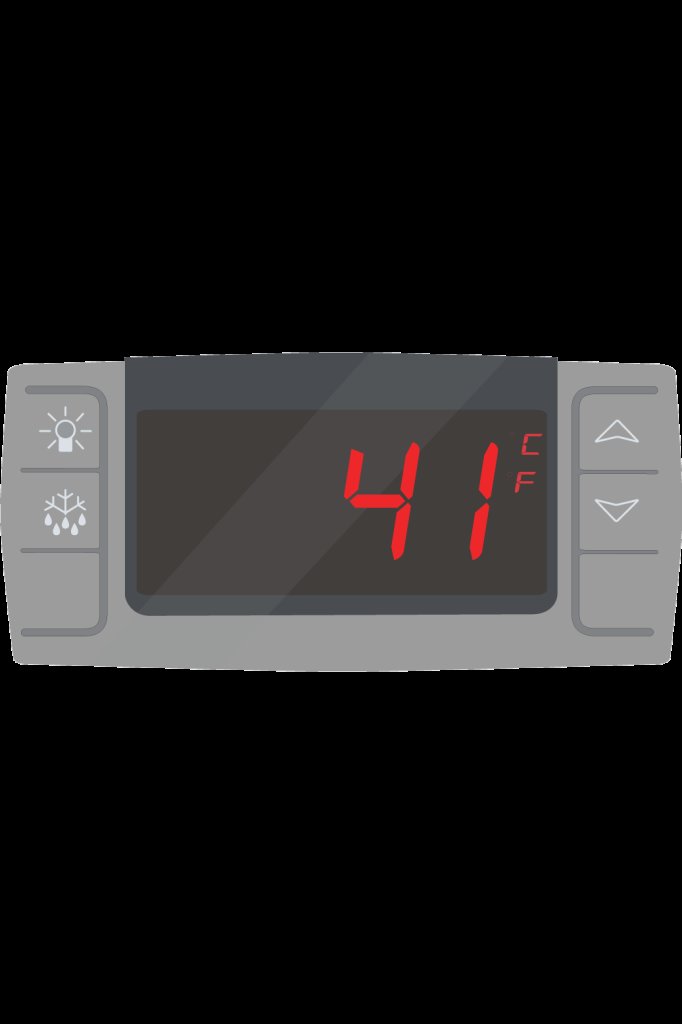

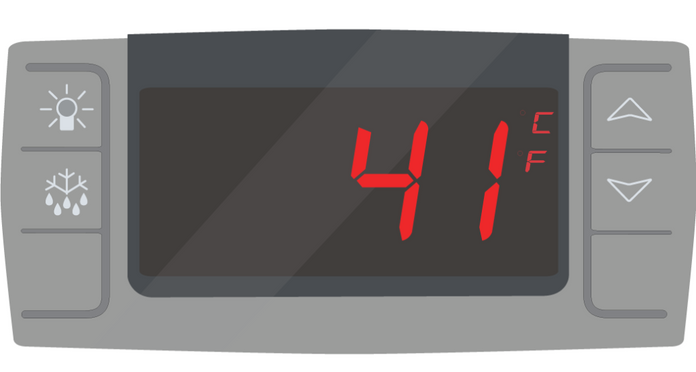

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in sample bottle
- Adjustable operating temperature range: 36°F to 46°F (2°C to 8°C)
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:21.25" (53.98 cm)
-
Nominal Width:17.25" (43.82 cm)
-
Nominal Length:19.25" (48.9 cm)
-
Internal Height:15.75" (40.01 cm)
-
Internal Width:14" (35.56 cm)
-
Internal Length:8.88" (22.56 cm)
-
Capacity:1
Specifications
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Adj
-
Refrigerant:R600a
-
H.P.:0.12
-
Amps:.90
-
Weight:63 lbs.
-
Shipping Weight:91 lbs.
Drawings
-
PH-ABT-HC-UCFS-0104 Ext CutsheetVisit Link
-
PH-ABT-HC-UCFS-0104 Int CutsheetVisit Link
Useful Links
-
PH-ABT-HC-UCFS-0104 SpecSheetVisit Link
-
ABS Natural Refrigerants FlyerVisit Link
