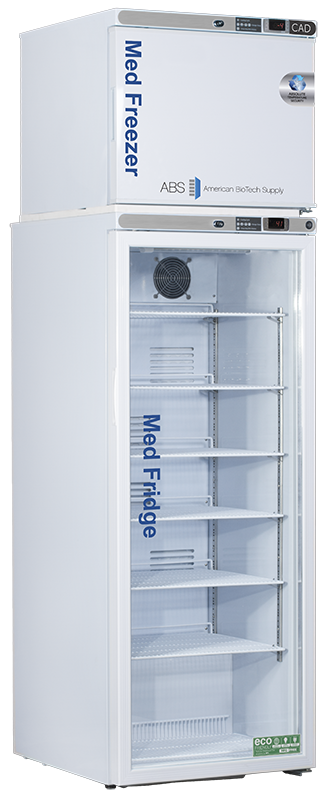

American Biotech Supply - PH-ABT-HC-RFC12GA-CAD - 12 Cu. Ft. Premier Pharmacy/Vaccine Refrigerator and Freezer Combination with Controlled Auto Defrost Freezer with Glass Door

American Biotech Supply - PH-ABT-HC-RFC12GA-CAD - 12 Cu. Ft. Premier Pharmacy/Vaccine Refrigerator and Freezer Combination with Controlled Auto Defrost Freezer with Glass Door

American Biotech Supply - PH-ABT-HC-RFC12GA-CAD - 12 Cu. Ft. Premier Pharmacy/Vaccine Refrigerator and Freezer Combination with Controlled Auto Defrost Freezer with Glass Door

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Our Patented Controlled Auto Defrost Technology provides the convenience of an auto-defrost design while still ensuring that vaccines remain at consistent and stable temperatures below 5°F (-15°C).

Features

Our patented "Controlled Auto Defrost" technology provides the convenience of an auto-defrost design while still ensuring that vaccines remain at consistent and stable temperatures below 5°F (-15°C).



The acceptable temperature ranges for vaccine storage are between 36° Fahrenheit and 46° Fahrenheit (or between 2° Celsius and 8° Celsius) in the refrigerator and between -58° Fahrenheit and +5° Fahrenheit (or between -50° Celsius and -15° Celsius) in the freezer.



Details



  • Refrigerator/Freezer freestanding thermometer with 3-year certificate of calibration, with min/max memory, °F/°C switchable
  • Audible and visual high and low temperature alarms for both refrigerator and freezer
  • Remote alarm contacts for refrigerator and freezer
  • Six adjustable shelves with guard rail on back to prevent product from being pushed against back wall (Refrigerator)
  • Two adjustable shelves with guard rail on back to prevent product from being pushed against back wall (Freezer)
  • Bottom footed shelf to allow air circulation (Refrigerator and Freezer)
  • Vaccine storage power cord warning label
  • Forced draft circulation (Refrigerator)
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Leveling legs
  • Stacking kit
  • Two probe access ports (0.4"): one for refrigerator, one for freezer
  • White powder-coated exterior
  • HFC-free refrigerant (R600a), foam insulation, and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two-year parts and labor warranty, plus an additional three-year compressor parts warranty
  • Compatible with Pyxis®, Omnicell®, and AcuDose RX® systems



Temp Controller



  • Microprocessor temperature controller for refrigerator and freezer
  • Digital temperature display with sample simulated probe for refrigerator and freezer
  • Adjustable operating temperature range: Refrigerator: 36°F to 46°F (2°C to 8°C), Freezer:5°F to -13°F (-15°C to -25°C)
  • Defrost:
    • Auto defrost cycle every 6 hours (at Set Point: -11°F / -24°C)
    • Max air temperature: Empty freezer: 5°F (-15°C), Loaded freezer: 3°F (-16°C)
    • Max sample temperature: Empty freezer: 0°F (-18°C), Loaded freezer: -4°F (-20°C)

Specifications

Overview

  • Nominal Height:
    80.25" (203.84 cm)
  • Nominal Width:
    23.75" (60.33 cm)
  • Nominal Length:
    26.5" (67.31 cm)
  • Capacity:
    12

Technical Data - Freezer

  • Cu. Ft:
    1
  • Defrost:
    Controlled Auto
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    2 Adj
  • Interior Dim. W:
    17.75"
  • Interior Dim. D:
    7.5"
  • Interior Dim. H:
    12.38"
  • Refrigerant:
    R600a
  • H.P:
    0.125
  • Amps:
    1
  • Weight:
    246 lbs.

Technical Data - Refrigerator

  • Cu. Ft:
    10.5
  • Defrost:
    Cycle
  • Door:
    1 Glass
  • Int Door:
    0
  • Shelves:
    6 Adj
  • Interior Dim. W:
    19.87"
  • Interior Dim. D:
    18.38"
  • Interior Dim. H:
    53.5"
  • Refrigerant:
    R600a
  • H.P:
    0.33
  • Amps :
    2.3
  • Shipping weight:
    246 lbs.
