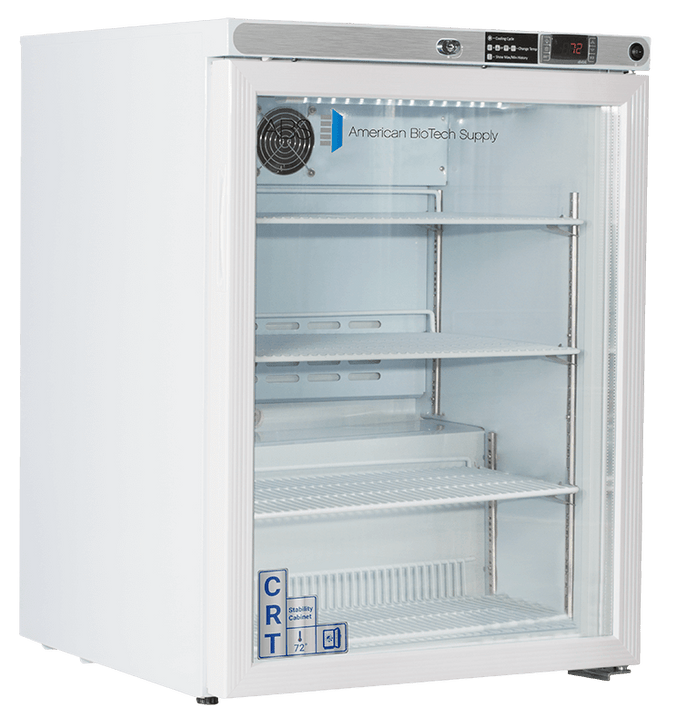

American Biotech Supply - CRT-ABT-HC-UCFS-0504G - 5.2 Cu. Ft. Undercounter Controlled Room Temperature Cabinet, Freestanding-Glass Door

Features
A controlled temperature environment will ensure approved storage; preventing time wasted on unnecessary expense and product recalls.
The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three adjustable shelves with guard rail on back to prevent product from being pushed against the back wall
- Bottom footed shelf to allow air circulation
- Back wall evaporator cover
- Vaccine storage power cord warning label
- Forced draft circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- LED interior light
- Switch activated light
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
- Note: This unit must have 4” clearance on sides and back for adequate ventilation
Temp Control

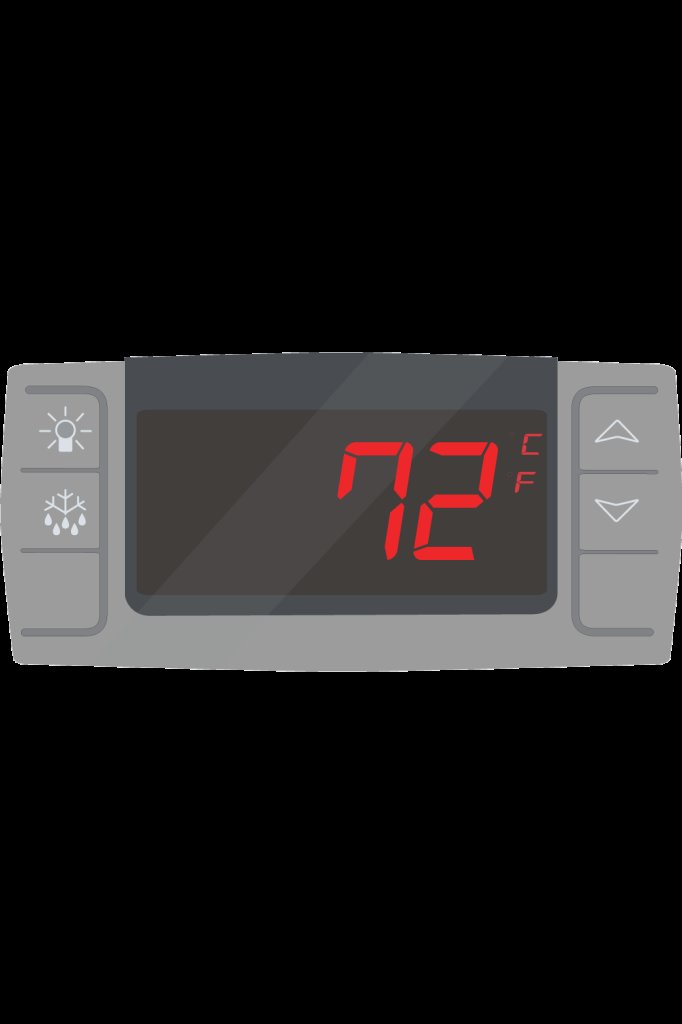

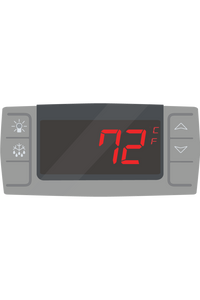

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in sample bottle
- Adjustable operating temperature range: 68°F to 77°F (20°C to 25°C)
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:32.13" (81.61 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24" (60.96 cm)
-
Internal Height:26.75" (67.95 cm)
-
Internal Width:19.88" (50.5 cm)
-
Internal Length:16" (40.64 cm)
-
Capacity:5.2
Technical Data
-
Defrost:Cycle
-
Door:1 Glass
-
Int Door:0
-
Shelves:3 Adj + Footed Bottom
-
Refrigerant:R600a
-
H.P.:0.167
-
Amps:1.3
-
Shipping Weight:129 lbs.
Drawings
-
CRT-ABT-HC-UCFS-0504G Ext CutsheetVisit Link
-
CRT-ABT-HC-UCFS-0504G Int CutsheetVisit Link
Useful Links
-
CRT-ABT-HC-UCFS-0504G SpecSheetVisit Link
-
ABS Natural Refrigerants FlyerVisit Link
