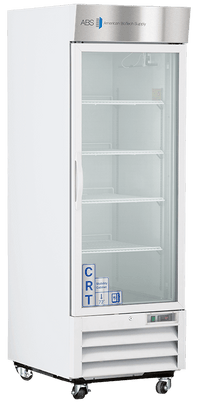

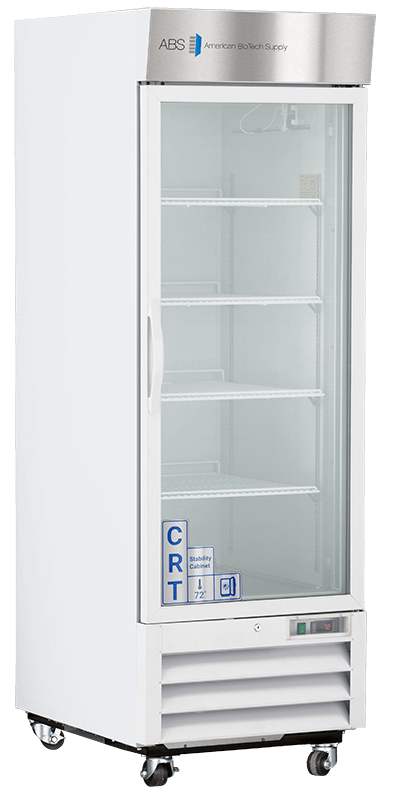

American Biotech Supply - CRT-ABT-HC-S23G - 23 Cu. Ft. Upright Controlled Room Temperature Cabinet, Glass Door

Features
The Upright Controlled Room Temperature Cabinets are purpose built for medical applications. These units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for medication storage at room temperature. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.
A controlled temperature environment will ensure approved storage; preventing time wasted on unnecessary expense and product recalls.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Four adjustable shelves
 - Vaccine storage power cord warning label
 - Forced draft air circulation
 - Keyed door lock
 - Magnetic door gasket for positive seal
 - Heavy duty door handle
 - Swivel Casters (3")
 - LED interior lights are safety shielded and switch controlled
 - Hydrocarbon, natural refrigerant (R290)
 - One year parts and labor warranty, plus an additional four year compressor parts warranty

Temp Controller

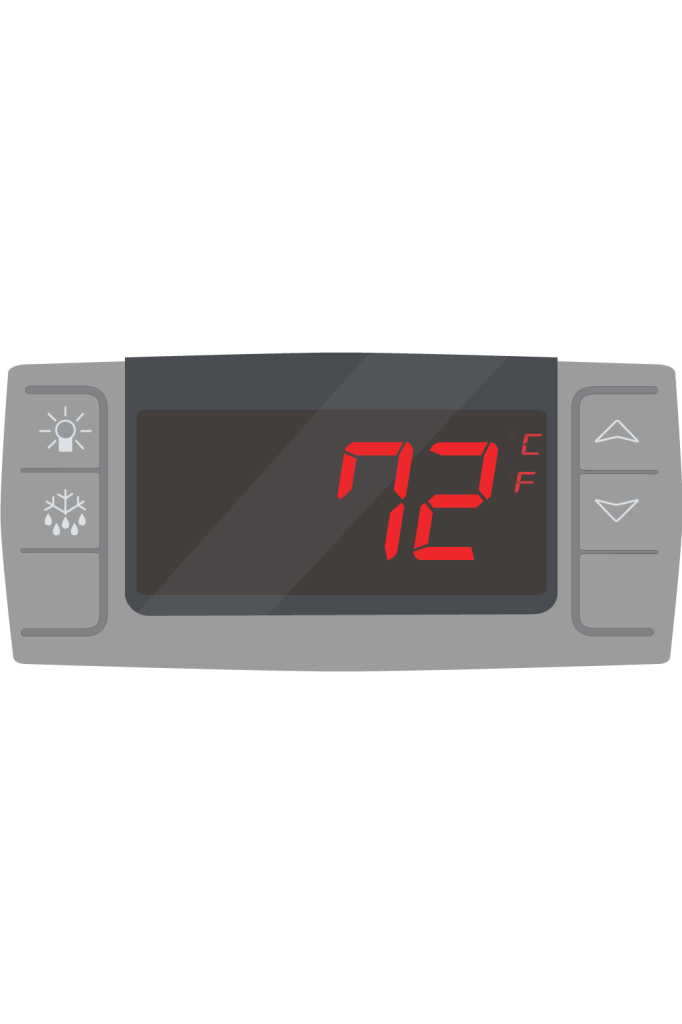

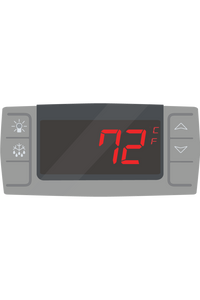

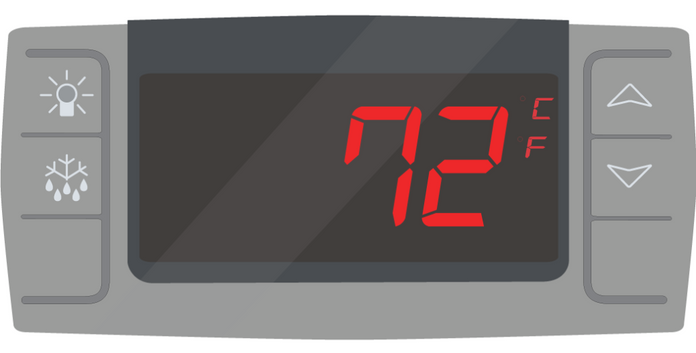

- Microprocessor temperature controller
 - Digital temperature display
 - Audible and visual high and low temperature alarms
 - Remote alarm contacts
 - Adjustable operating temperature range: 68°F to 77°F (20°C to 25°C)
 - 2 probes; 1 in air and 1 in sample bottle
 - Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm

Specifications
Overview
-
							Nominal Height:81.75" (207.65 cm)
 -
							Nominal Width:26.88" (68.28 cm)
 -
							Nominal Length:34.75" (88.27 cm)
 -
							Internal Height:52.5" (133.35 cm)
 -
							Internal Width:22" (55.88 cm)
 -
							Internal Length:25.25" (64.14 cm)
 -
							Capacity:23

Technical Data
-
									Defrost:Cycle
 -
									Door:1 Glass
 -
									Int Door:0
 -
									Shelves:4 Adj
 -
									Refrigerant:R290
 -
									H.P.:0.2
 -
									Amps:3
 -
									Weight:296 lbs.

Drawings
-
										CRT-ABT-HC-S23G Ext CutsheetVisit Link
 -
										CRT-ABT-HC-S23G Int CutsheetVisit Link

Useful Links
-
										CRT-ABT-HC-S23G SpecSheetVisit Link
