American Biotech Supply - ABT-HC-UCBI-0404-ADA-LH - 4.6 Cu. Ft. Capacity Premier Solid Door Undercounter Refrigerator Built-In, ADA-Left Hinged

Features
The 4.6 cu. ft capacity laboratory grade refrigerator is ideal where space is at a premium in laboratory and research environments. This laboratory refrigerator meets ADA compliance with a total height of under 32 inches making it easily wheelchair accessible. The ADA-compliant refrigerator has all the features required for laboratory safety and security for critical cold storage in laboratory refrigeration and medical refrigeration applications.
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three shelves (two adjustable/one fixed) with guard rail on back to prevent product from pushing against back wall
- Back wall evaporator cover
- Forced draft circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handle
- Leveling legs
- LED interior light
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty

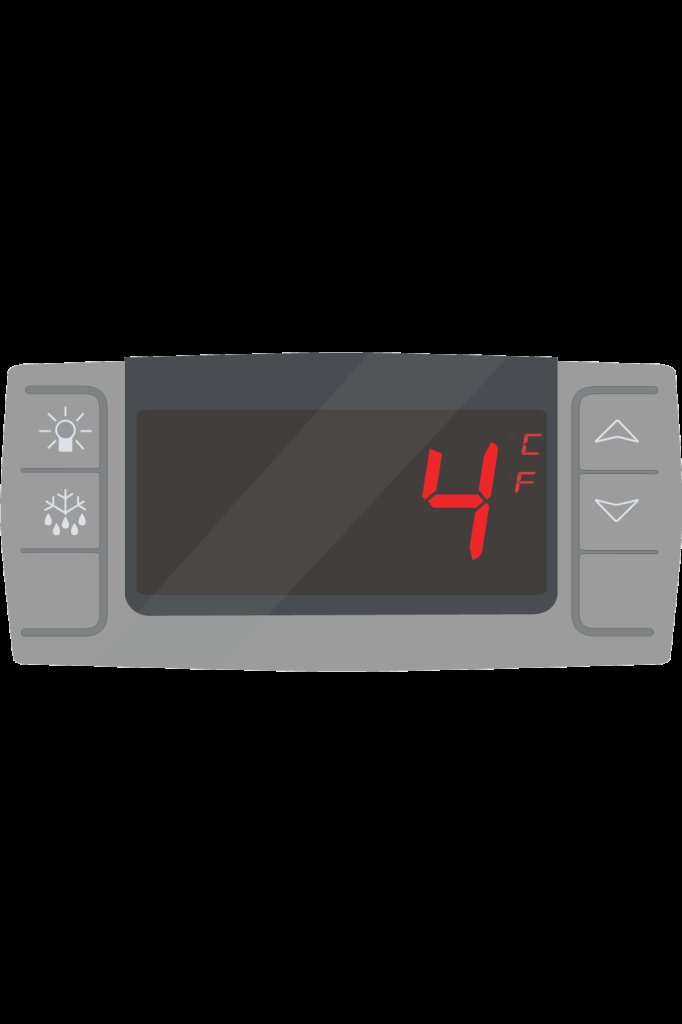

Temp Controller
- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes, 1 in air and 1 in glycol bottle
- Adjustable operating temperature range: 1°C to 10°C
Specifications
Overview
-
Nominal Height:31.94" (81.13 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Internal Height:24.38" (61.93 cm)
-
Internal Width:19.25" (48.9 cm)
-
Internal Length:17.5" (44.45 cm)
-
Capacity:4.6
Technical Data
-
Defrost:Cycle
-
Door:1 Solid LH
-
Int Door:0
-
Shelves:2 Adj/1 Fixed
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1.74
-
Weight:97 lbs.
-
Shipping Weight:150 lbs.
Drawings
-
ABT-HC-UCBI-0404-ADA-LH Ext CutsheetVisit Link
-
ABT-HC-UCBI-0404-ADA-LH Int CutsheetVisit Link
