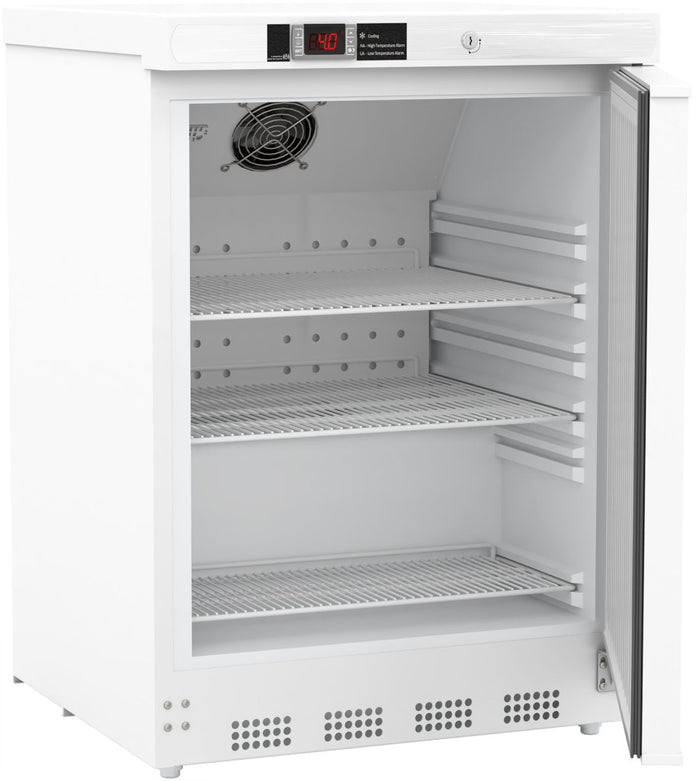

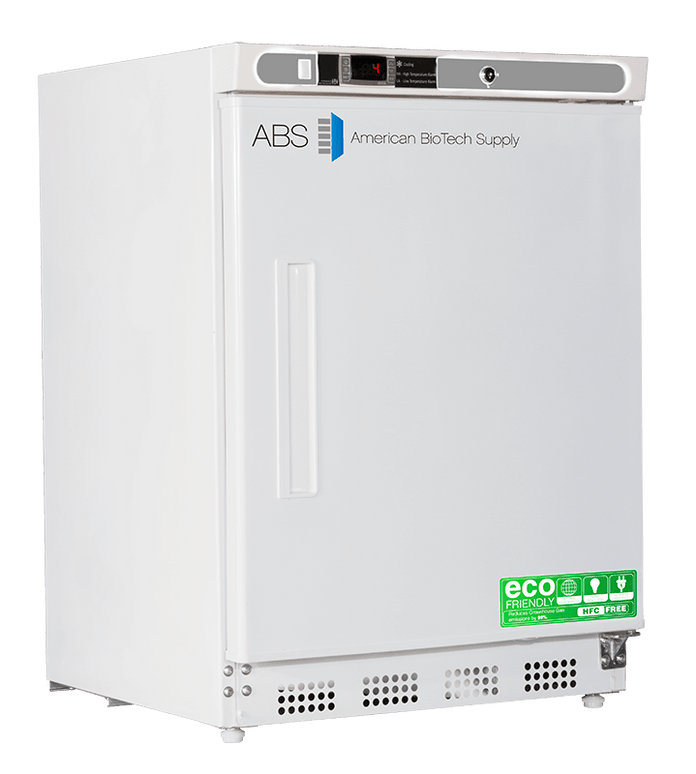

American Biotech Supply - ABT-HC-UCBI-0404 - 4.6 Cu. Ft. Capacity Premier Undercounter Refrigerator Built-In

Product Range
| SKU | Name |
|---|---|
| ABT-HC-UCBI-0404-ADA | American Biotech Supply - ABT-HC-UCBI-0404-ADA - 4.6 Cu. Ft. Capacity Premier Solid Door Undercounter Refrigerator Built-In, ADA |
| ABT-HC-UCBI-0404G-LH | American Biotech Supply - ABT-HC-UCBI-0404G-LH - 4.6 Cu. Ft. Capacity Premier Undercounter Refrigerator Built-In, Left Hinged-Glass Door |
| ABT-HC-UCBI-0404SS-LH | American Biotech Supply - ABT-HC-UCBI-0404SS-LH - 4.5 Cu. Ft. Capacity Premier Undercounter Refrigerator Built-In, Left Hinged |
| ABT-HC-UCBI-0404-ADA-LH | American Biotech Supply - ABT-HC-UCBI-0404-ADA-LH - 4.6 Cu. Ft. Capacity Premier Solid Door Undercounter Refrigerator Built-In, ADA-Left Hinged |
| ABT-HC-UCBI-0404-LH | American Biotech Supply - ABT-HC-UCBI-0404-LH - 4.6 Cu. Ft. Capacity Premier Undercounter Refrigerator Built-In, Left Hinged |
| ABT-HC-UCBI-0404SS | American Biotech Supply - ABT-HC-UCBI-0404SS - 4.5 Cu. Ft. Capacity Premier Undercounter Refrigerator Built-In |
| ABT-HC-UCBI-0404G-ADA-LH | American Biotech Supply - ABT-HC-UCBI-0404G-ADA-LH - 4.6 Cu. Ft. Capacity Premier Undercounter Refrigerator Built-In, ADA-Left Hinged |
| ABT-HC-UCBI-0404G | American Biotech Supply - ABT-HC-UCBI-0404G - 4.6 Cu. Ft. Capacity Premier Undercounter Refrigerator Built-In, Glass Door |
| ABT-HC-UCBI-0404G-ADA | American Biotech Supply - ABT-HC-UCBI-0404G-ADA - 4.6 Cu. Ft. Capacity Premier Undercounter Refrigerator Built-In, ADA |
Features
The Premier Built In Undercounter Refrigerators feature a microprocessor temperature controller and display, which allows for precise temperature control, verification and recovery versus mechanical style thermostats.
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three shelves (two adjustable/one fixed) with guard rail on back to prevent product from being pushed against the back wall
- Back wall evaporator cover
- Forced draft circulation
- Recessed door handle
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
Temp Controller
- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes, 1 in air and 1 in glycol bottle
- Adjustable operating temperature range: 1°C to 10°C
Specifications
Overview
-
Nominal Height:33.38" (84.79 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Internal Height:24.5" (62.23 cm)
-
Internal Width:19.25" (48.9 cm)
-
Internal Length:17.25" (43.82 cm)
-
Capacity:4.6
Technical Data
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Adj/1 Fixed
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1.74
-
Weight:97 lbs.
Drawings
-
ABT-HC-UCBI-0404 Ext Cut SheetVisit Link
-
ABT-HC-UCBI-0404 Int Cut SheetVisit Link
