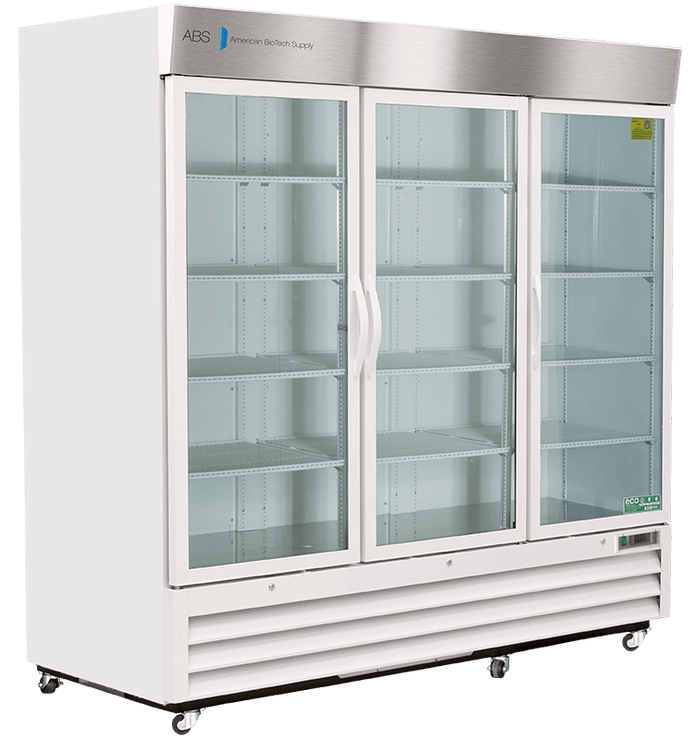

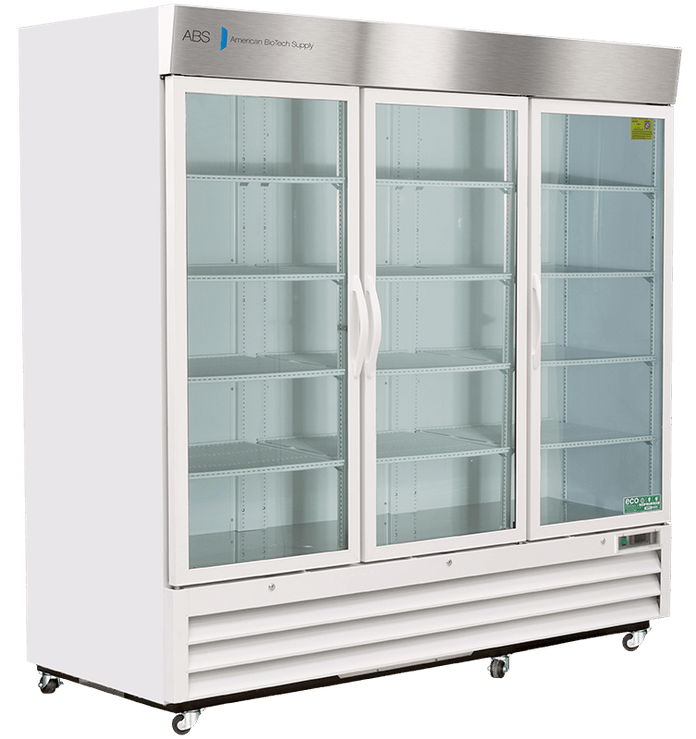

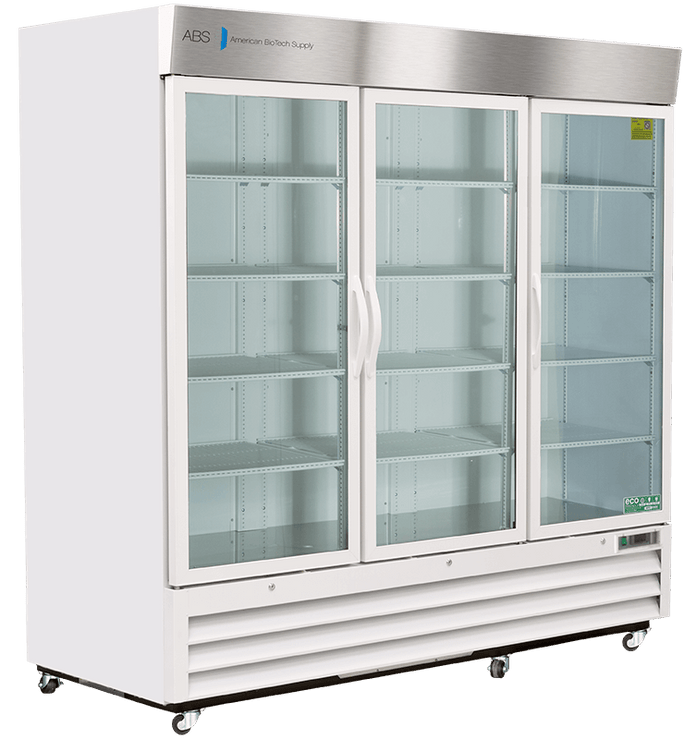

American Biotech Supply - ABT-HC-LS-72 - 72 Cu. Ft. Capacity Standard Glass Door Laboratory Refrigerator

Features
The Standard Series Glass Laboratory Refrigerators are purpose built for scientific and medical applications. Standard Series Glass Door Laboratory Refrigerators feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.
The temperature display and alarm module offers product security with a monitoring and alarm system. Real-time sample simulated temperatures are constantly displayed and supported by audible/visual high and low temperature alarms.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details

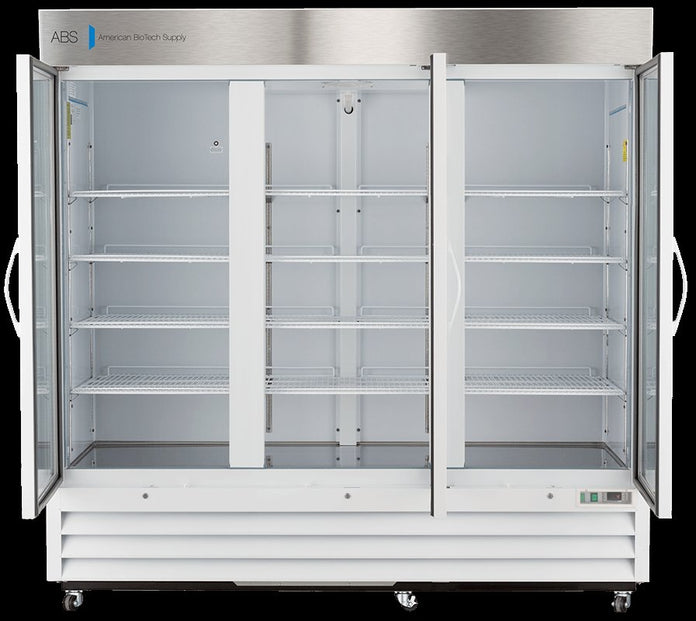

- Twelve adjustable shelves (adjustable in ½"increments)
- Forced draft air circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handles
- Swivel casters (3 ½")
- LED interior lights are safety shielded and switch controlled
- Probe access port (3/8″)
- Powder coated steel white interior and exterior
- High density urethane foam cabinet insulation
- Hydrocarbon, natural refrigerant (R290)
- One year parts and labor warranty, plus an additional four year compressor parts warranty

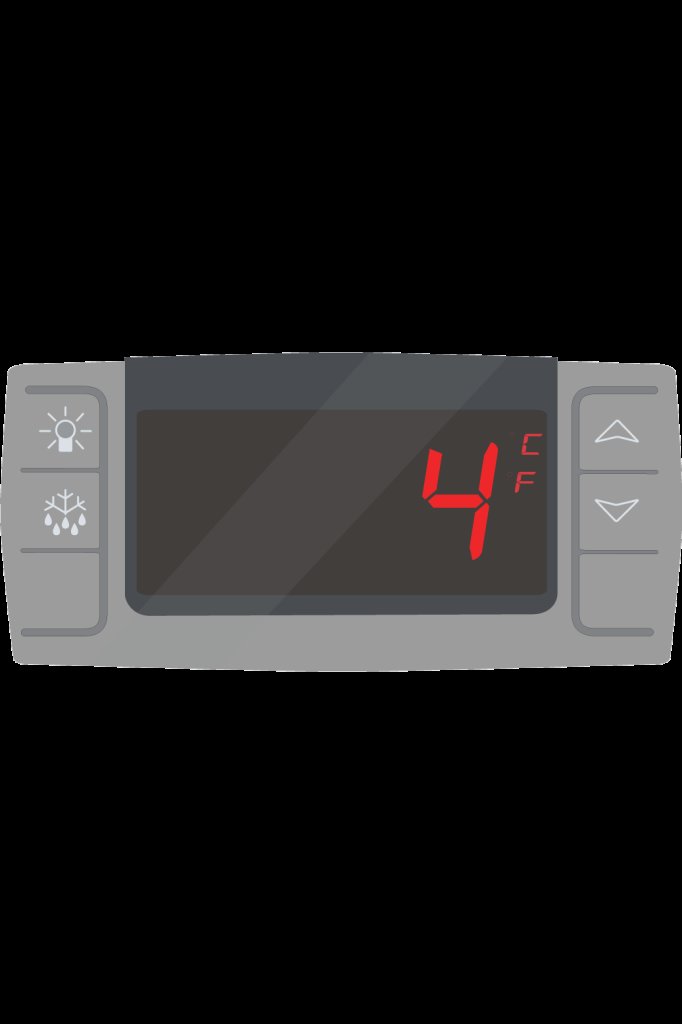

Temp Controller
- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- 2 probes; 1 in air and 1 in sample bottle
- Remote alarm contacts
- Adjustable operating temperature: 1°C to 10°C
Specifications
Overview
-
Nominal Height:81.75" (207.65 cm)
-
Nominal Width:81" (205.74 cm)
-
Nominal Length:34" (86.36 cm)
-
Internal Height:52.25" (132.72 cm)
-
Internal Width:76" (193.04 cm)
-
Internal Length:24.75" (62.87 cm)
-
Capacity:72
General Description and Application
-
Door:Three swing glass doors, self-closing, right and left hinged
-
Shelves:Twelve adjustable shelves (adjustable in ½” increments)
-
Mounting and Installation:Swivel Casters
-
Interior Lighting:LED interior lights are safety shielded and switch controlled
-
Airflow Management:Forced draft air circulation
-
External Probe Access:Probe access port (3/4”)
-
Insulation:Cabinet is foamed-in-place with EPA compliant high density urethane foam
-
Exterior Materials:White powder-coated steel interior and exterior
-
Access Control:Keyed door lock
-
Product Weight (lbs) :693
-
Shipping Weight (lbs):743
-
Rated Amperage:7.5 Amps
-
Power Plug/Power Cord:NEMA 5-15 plug
-
Facility Electrical Requirement:115V, 60 Hz, 7.5 Amps, 1/2 HP
-
Agency Listing and Certification:ETL, C-ETL listed and certified to UL471 standard
