Top-Loading Autoclave with Fully Automatic Drying cycle using heat and vacuum.

Features

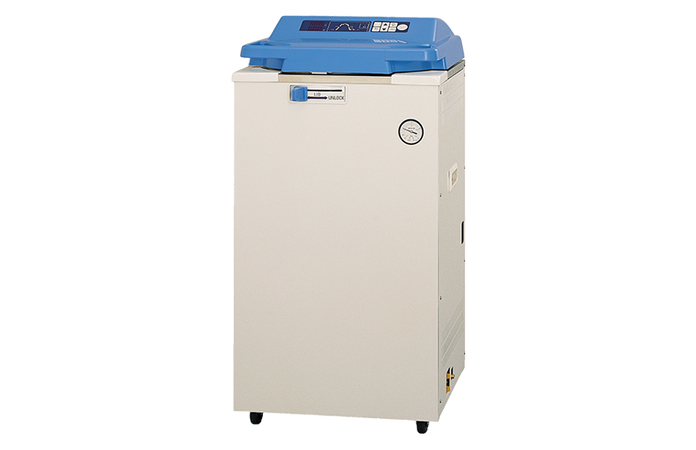

The HVP-50 Autoclave (with a 50-L chamber) is a self-contained, portable floor model mounted on casters. It occupies minimum floor space, operates at 120V, and can fit conveniently into many locations in the laboratory. Its many uses include the sterilization and drying of glassware, pipette tips, lab coats, wastes and also liquids such as agar and media. The HVP-50 can accommodate a 15-L carboy, a 19” x 24” biohazard bag, six 1-L flasks, twenty-one 500-mL bottles, 180 x 20-mm or 270 x 13-mm test tubes in three stacked baskets.



Key Features



  • Space-Saving Design needing only 20”W x 25”D of floor space, with lid opening upwards.
  • Lid Safety Interlock prevents the lid from when the pressure or temperature is high, when a cycle is in progress.
  • One-Touch Lever to easily open and close chamber lid.
  • Door-Closure Sensor prevents a cycle starting unless the door is closed properly.

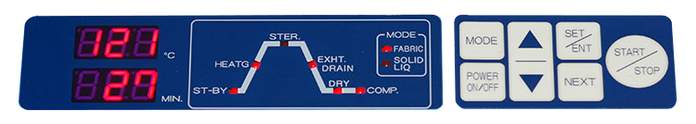

  • Process Display shows the program selected and status of the sterilization.
  • Two Drying Cycles for Solid Loads uses vacuum for faster and more efficient drying.
  • Drying-Only Cycle for additional drying post-sterilization.
  • Cycle for wastes and lab ware without drying
  • Liquid Cycle for media and agar.
  • Vacuum Pump removes air from the chamber when sterilizing solids such as glassware and pipette tips, thereby eliminating cold spots, ensuring faster and more efficient sterilization.
  • Chamber Dimensions: 11.8” D x 28” H, 50L

Specifications

Overview

  • Nominal Height:
    40.9" (103.89 cm)
  • Nominal Width:
    20.1" (51.05 cm)
  • Nominal Length:
    24.8" (62.99 cm)
  • Capacity:
    50

Technical Data

  • Temperature - Operating Range:
    105ºC to 135ºC
  • Temperature - Display Range:
    5ºC to 140ºC
  • Gauge Pressure - Operating Range (Gauge):
    3 to 28.4 psi (0.2 to 2.0 kg/cm² )
  • Timer - Sterilization:
    1 to 250 minutes
  • Timer - Drying:
    1 to 90 minutes
  • Dimension - Chamber (D x H):
    50 liter, 11.8" x 28" (30 x 71 cm)
  • Accessories - Stainless Steel:
    Mesh wire baskets, buckets (pails), and round test tube racks
  • Accessories - Factory or Field Installed:
    Data logger
  • Power - Source:
    120V, 50/60 Hz, single phase (220V/240V available on request)
  • Power - Consumption:
    2000 watts (2000 VA)
  • Power Connection:
    Ring terminal
  • Shipping Weight:
    291 lb (133 kg)
  • Warranty:
    Autoclaves are protected by a 12-month warranty.
