Amerex - HVE-50 - Self-Contained, Portable, Top-Loading Autoclaves with Auto Exhaust and Warming Cycles
Features

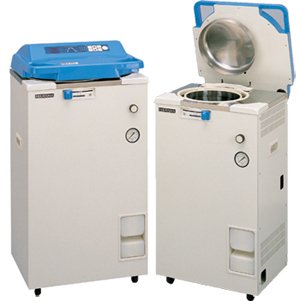

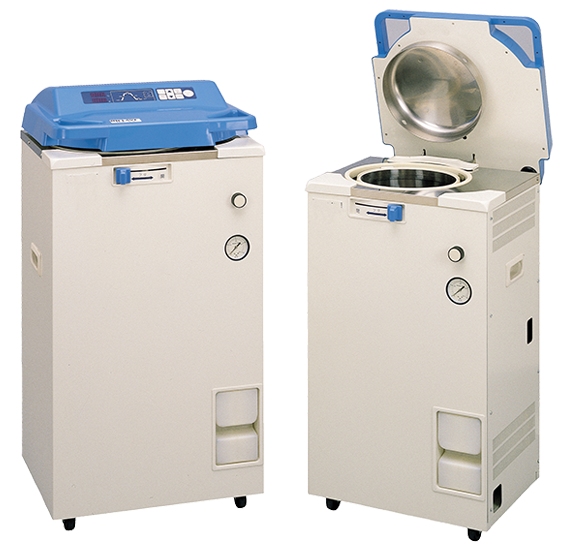

The 50-liter, HVE-50 Autoclave is a self-contained, portable, floor model mounted on casters. It does not need plumbing for installation, it occupies minimum floor space, operates at 120V, and can be placed conveniently in many locations in the laboratory. Its uses include the sterilization of agar, media, waste, and glassware. The HVE-50 can accommodate a 10-liter fermenter, a 15-liter carboy a 19” x 24” biohazard bag, nine 1-liter flasks, one hundred and eighty 20-mm tubes, or two hundred and seventy 13-mm tubes in three stacking baskets.
- Space-saving design with lid opening upward.
- Fully automatic drying cycle for solid loads uses heat and vacuum for faster and more efficient drying.
- Lid safety interlock prevents lid opening when a cycle is in progress, the chamber is pressurized, or when the temperature exceeds 97°C.
- Pre-vacuum cycle - vacuum pump removes air from the chamber when sterilizing solids such as glassware and pipette tips, thereby eliminating cold spots, and ensuring faster and more efficient sterilization.
- One-touch lever to easily open and close chamber lid.
- Liquid cycle for media and agar.
- Process display shows the program progress selected and status of the sterilization cycle.
- Cycle for wastes and glassware without drying.
- Bacteria filter reduces re-contamination.
- Door-closure sensor prevents a cycle from starting unless the door is closed properly.
- HVP-50 size: 50 liters, 11.8" D, 28.0" H.
Specifications
Overview
-
Nominal Height:40.9" (103.89 cm)
-
Nominal Width:20.1" (51.05 cm)
-
Nominal Length:20.8" (52.83 cm)
Technical Data
-
Temperature - Operating Range:105°C to 135°C
-
Temperature - Display Range:5°C to 137°C
-
Temperature - Warming Range:45°C to 60°C
-
Gauge Pressure - Operating Range:3 to 30 psi (0.021 to 0.206MPa)
-
Gauge Pressure - Maximum Allowable:38 psi (0.26MPa)
-
Sterilization Timer:1 to 250 minutes
-
Dimensions - Chamber (D x H):50 liters, 11.8" x 28" (30 x 71 cm)
-
Accessories - Stainless Steel:Mesh wire baskets, buckets (pails), and round test tube racks
-
Accessories - Factory or Field Installed:data logger
-
Power Source:120V, 50/60 Hz, single phase (220V available on request)
-
Power Consumption:2000 watts (2000 VA)
-
Shipping Weight:180 lb (82 kg)
Downloads
-
Model HVE-50 Autoclave BrochureDownload
