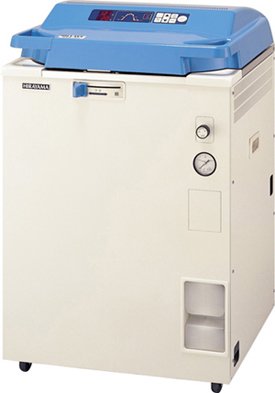

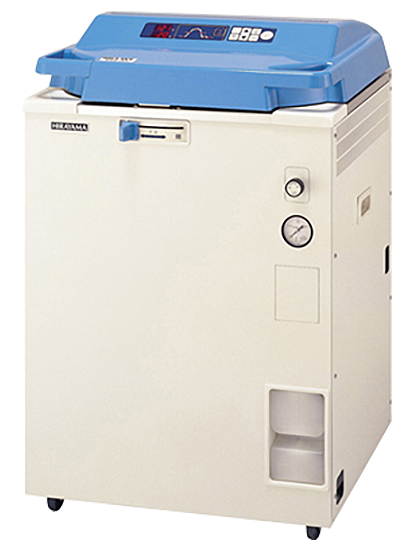

Amerex - HVA-85 - Portable, Top-Loading Autoclaves with Cooling Fan and Advanced Safety and User-Friendly Features
Features
The HVA-85 and HVA-110 models incorporate a 85-liter and a 110-liter chamber, respectively. They are self-contained, portable floor models mounted on caster wheels. Equipped with a chamber 16.5” in diameter, they can accommodate significantly larger loads than 50-liter models. They are ideal for the sterilization of fermenters, media, wastes, and laboratory glassware.
- Space-saving design with lid opening upward.
- Standard built-in cooling fan for faster post-sterilization cooling.
- Dual lid safety interlock prevents lid opening when a cycle is in progress, the chamber is pressurized, or the temperature exceeds 97°C.
- Agar sterilization mode sterilizes agar, and then automatically keeps it warm to prevent it from solidifying.
- One-touch lever to easily open and close chamber lid.
- Agar melting mode for rapidly melting agar and then automatically maintaining it at liquid temperature, or for a hot and faster start-up.
- Door-closure sensor prevents a cycle from starting unless the door is closed properly.
- In-process display shows the status and the progress of sterilization cycle.
Specifications
Overview
-
Nominal Height:39.4" (100.08 cm)
-
Nominal Width:26" (66.04 cm)
-
Nominal Length:25.6" (65.02 cm)
Technical Data
-
Temperature - Operating Range:105°C to 135°C
-
Temperature - Display Range:10°C to 137°C
-
Temperature - Agar Warming Range:After sterilization, agar can be maintained from 45°C to 60°C (programmable) toprevent coagulation for up to 20 hours.
-
Pressure - Max. Pressure (Gauge):0.26MPa
-
Pressure - Pressure Gauge Range:0.021 to 0.206MPa
-
Sterilization Timer:1 to 250 minutes
-
Dimensions - Chamber (D x H):85 liters, 16.5" x 24.2" (42.0 x 61.5 cm)
-
Options:Data logger
-
Power Source:208V/220V/240V, 50/60 Hz, single phase
-
Power Consumption:3000 watts (3000VA)
-
Shipping Weight:255 lb (116kg)
Downloads
-
Models HVA-85 & HVA-110 Autoclaves BrochureDownload
