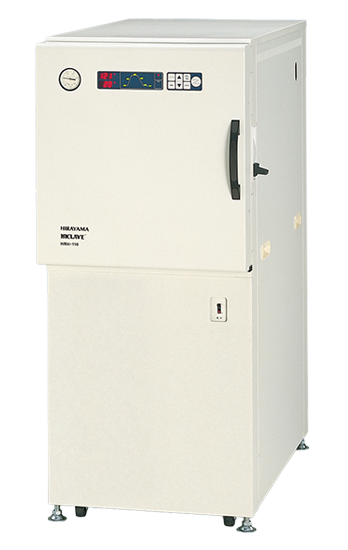

Amerex - AT-HRH-110 - Front-Loading Autoclave with Fully Automatic Drying Cycle Using Heat and Vacuum

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

Zip Code

Add the product to a quote to receive more information.

Front-loading autoclave with fully automatic drying cycle using heat and vacuum.

Fully Automatic Operation from start to finish with or without drying.
Self-contained Design does not require plumbing for set-up, in house steam, or a floor drain hole for steam exhaust.
Cycles for Waste/Solid Loads with or without drying and a Liquid Cycle for media and agar.
Pre-vacuum Cycle: Vacuum pump removesair from the chamber when sterilizing solids such as glassware and pipette tips, thereby eliminating cold spots, and ensuring faster and more efficient sterilization.
Drying by Heat and Vacuum increases drying efficiency and reduces cycle times.
Additional Drying Mode for complete drying without having to re-run the sterilization cycle.
Delay Auto Start allows programming autoclave to start up to 7 days later.
Large Internal Tank for water exhaust eliminates the need for a floor drain hole.
Bacteria Filter reduces re-contamination.
Auto Filling of Chamber - Convenient auto-filling from a 10-liter internal water tank.
One-touch Door Closing Lever opens and closes the door easily, surely and safely.
Door Safety Interlock prevents door from opening during a cycle, when the chamber is pressurized, and the temperature is above 97oC at which point super-heated liquids might boil over when disturbed.
Door-closure Sensor prevents a cycle from starting unless the door is properly closed.
Process Display shows the program selected and the status of the sterilization cycle.
Chamber Dimensions: 16.5” diameter x 31.3” depth (420 mm x 795 mm), 110 liters.

Self-Contained Design:

Does not require in-house steam, plumbing or a floor drain hole for installation
Sterilization Temperature:

105°C - 135°C (programmable)
Temperature Display Range:

5°C - 137°C
Sterilization Timer:

1 ~ 60 min (remaining time displayed)
Drying Timer:

1 ~ 120 min (remaining time displayed)
Drying Method:

Vacuum pump and heating
Chamber Water Source:

Auto water filling from an internal 10L water tank
Maximum Allowable Pressure (Gauge Pressure):

0.206 MPa (2.06 kg/cm2G)
Chamber Size (Diameter x Depth):

110 liters, 16.5" x 31.3" (420 x 795 mm)
Chamber Material:

Stainless steel SUS304
Pressure Gauge:

Analog display
Standard Accessories:

Drain hose, water supply hose, caster stopper
Power Source/Consumption:

AC220V, 50/60Hz, 1 phase, 3.2kW
Net Weight (Approx.):

462 lb, (210 kg)
Warrenty:

1 year
