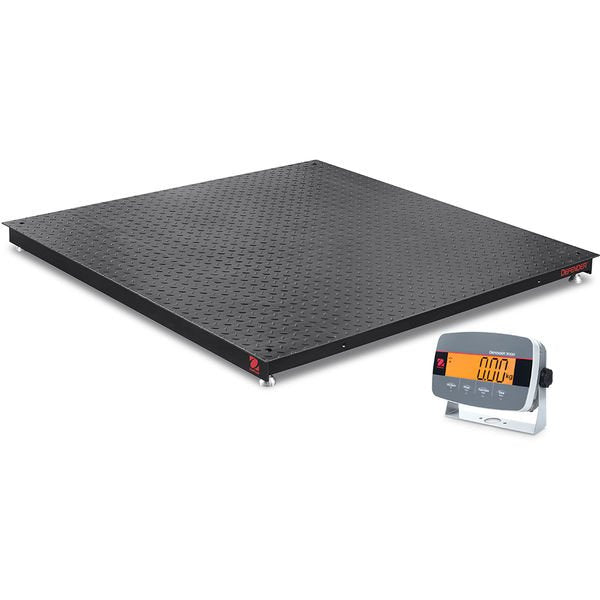

Floor Scales for Basic Industrial Applications.

Features

Defender 3000 Floor Platforms meet dry weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that changes color when in check mode. Scale also includes counting and totalization modes. Ramps and mounting plates are available.


Applications


Weighing, Checkweighing, Counting, Totalization


Display


7 Segment LCD with multicolor backlight


Operation


Internal power supply with power cord (included), 6C (LR14) batteries (not included) or rechargeable battery (not included)


Communication


Standard RS232 and optional USB Device or Ethernet


Construction


ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available


Design Features


Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Specifications

Overview

  • Nominal Height:
    3.5" (8.89 cm)
  • Nominal Width:
    4" (10.16 cm)
  • Nominal Length:
    4" (10.16 cm)

Technical Data

  • Maximum Capacity:
    5,000 lb (2,500 kg)
  • Readability:
    1 lb (0.5 kg)
  • Readability (Certified):
    1 lb (0.5 kg)
  • Platform Size (LxW):
    4 ft x 4 ft (1,219 mm x 1,219 mm)
  • Battery Life:
    30 Hours with Rechargeable Battery, 100 Hours with Disposable Batteries
  • Legal for Trade:
    NTEP Certified
  • Tare Range:
    To capacity by subtraction
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
  • Platform Construction:
    Painted Steel Diamond Plate
  • Net Weight:
    269 lb (122 kg)
  • Protection Rating:
    Not Applicable
  • Communication:
    Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Power:
    6 C (LR14) Batteries (Not Included), Rechargeable Battery (Not Included), AC Power (Included)
  • Units of Measurement:
    Metric Tons, Kilogram, Pound
  • Display:
    7 Segment LCD with multicolor backlight
  • Outputs:
    Not Applicable
