Platforms for Basic Industrial Applications.

Features

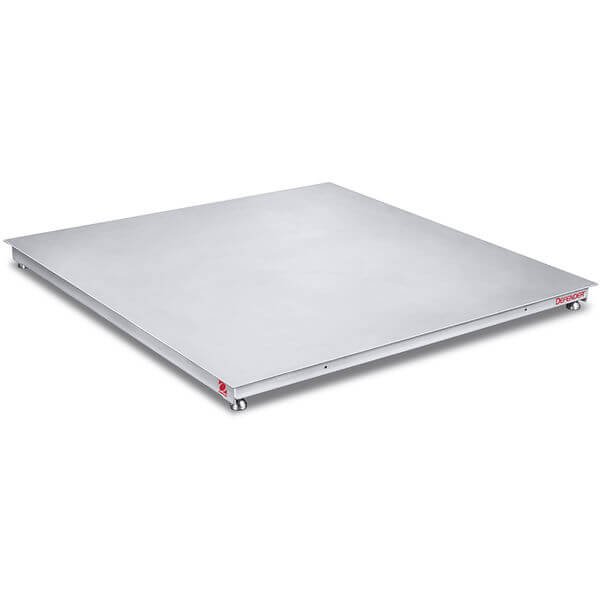

Defender 3000 Floor Platforms meet dry weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. Defender 3000 Series floor platforms offer a unique combination of value and dependability that your company can rely on. Ramps and mounting plates are available.


Construction


5 mm/0.196 in. fixed top plate, black treaded painted steel platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available.


Design Features


Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories).

Specifications

Overview

  • Nominal Height:
    3.5" (8.89 cm)
  • Nominal Width:
    4" (10.16 cm)
  • Nominal Length:
    4" (10.16 cm)

Technical Data

  • Maximum Capacity:
    2,500 lb (1,250 kg)
  • Readability:
    0.5 lb (0.2 kg)
  • Readability (Certified):
    0.5 lb (0.5 kg)
  • Platform Size (LxW):
    4 ft x 4 ft (1,219 mm x 1,219 mm)
  • Protection Rating:
    IP65
  • Legal for Trade:
    NTEP Certified
  • Platform Construction:
    Painted Steel Diamond Plate
  • Net Weight:
    265 lb (120 kg)
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
