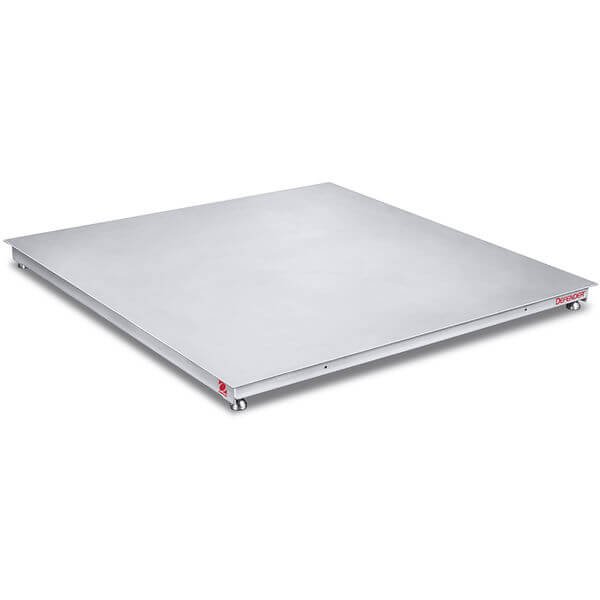

Ohaus - 30716492 - Defender™ 3000 Washdown Floor Platform i-DF2500C1R

Ohaus - 30716492 - Defender™ 3000 Washdown Floor Platform i-DF2500C1R

Ohaus - 30716492 - Defender™ 3000 Washdown Floor Platform i-DF2500C1R

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Platforms for Basic Industrial Applications.

Features

Defender 3000 Floor Platforms meet washdown weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. Defender 3000 Series floor platforms offer a unique combination of value and dependability that your company can rely on. Stainless steel bases include IP68 load cells for wet areas. Ramps and mounting plates are available.


Construction


5mm / 0.196in. fixed top plate, 304-grade stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, stainless steel ramp available.


Design Features


Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories).

Specifications

Overview

  • Nominal Height:
    3.5" (8.89 cm)
  • Nominal Width:
    3" (7.62 cm)
  • Nominal Length:
    3" (7.62 cm)

Technical Data

  • Maximum Capacity:
    2,500 lb (1,250 kg)
  • Readability:
    0.5 lb (0.2 kg)
  • Readability (Certified):
    0.5 lb (0.5 kg)
  • Platform Size (LxW):
    3 ft x 3 ft (914 mm x 914 mm)
  • Protection Rating:
    IP68
  • Legal for Trade:
    NTEP Certified
  • Platform Construction:
    Stainless Steel
  • Net Weight:
    212 lb (96 kg)
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
