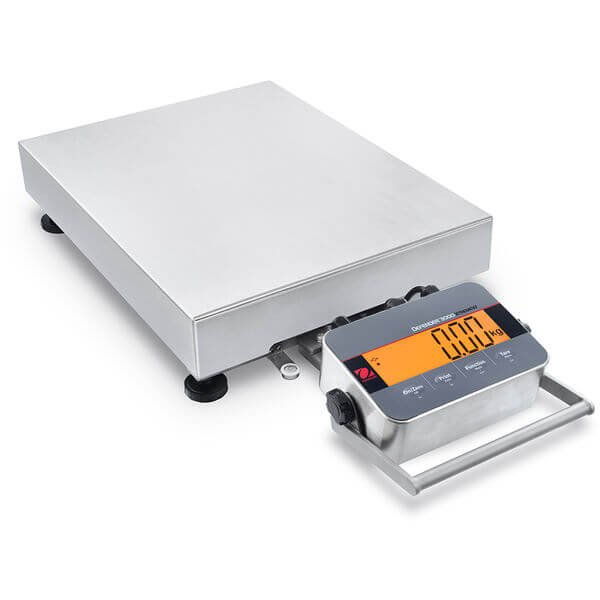

Stainless Steel Bench Scales for Basic Industrial Washdown Applications.

Features

The Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multicolor backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.


Applications


Weighing, Checkweighing, Counting, Totalization.


Display


7 Segment LCD with multicolor backlight.


Operation


Internal power supply with power cord (included) or Rechargeable Battery (included).


Communication


Standard RS232 and optional USB Device or Ethernet.


Construction


304-grade stainless steel platform and frame, stainless steel IP66 indicator, IP67 load cell, non-slip adjustable rubber feet.


Design Features


150% overload protection.

Specifications

Overview

  • Nominal Height:
    5.3" (13.46 cm)
  • Nominal Width:
    16.5" (41.91 cm)
  • Nominal Length:
    33.1" (84.07 cm)

Technical Data

  • Maximum Capacity:
    300 lb (150 kg)
  • Readability:
    0.05 lb (20 g)
  • Readability (Certified):
    0.1 lb (50 g)
  • Platform Size (LxW):
    21.6 in x 16.5 in (550 mm x 420 mm)
  • Legal for Trade:
    NTEP Certified, Measurement Canada Approved
  • Power:
    AC Power (Included), Rechargeable Battery (Included)
  • Units of Measurement:
    Kilogram, Gram, Pound, Ounce
  • Display:
    7 Segment LCD with multicolor backlight
  • Battery Life:
    100 Hours with Rechargeable Battery
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
  • Tare Range:
    To capacity by subtraction
  • Outputs:
    Not Applicable
  • Platform Construction:
    Stainless Steel
  • Net Weight:
    40 lb (18.1 kg)
  • Second Scale Input:
    Not Applicable
  • Protection Rating:
    IP66
  • Communication:
    Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
