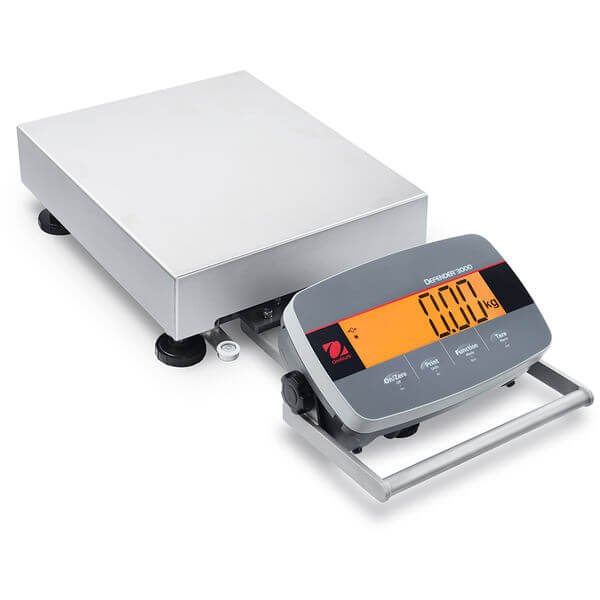

Ohaus - 30685204 - Defender™ 3000 Bench Scale i-D33P30B1R5 AM

Ohaus - 30685204 - Defender™ 3000 Bench Scale i-D33P30B1R5 AM

Ohaus - 30685204 - Defender™ 3000 Bench Scale i-D33P30B1R5 AM

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Bench Scales for Basic Industrial Applications.

Features

The Defender 3000 Series bench scales are ideal for general weighing, simple counting, and checkweighing applications in production, packaging, warehouse, inventory, shipping, and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, multicolor backlit LCD display, AC or battery operation, and flexible mounting capabilities.


Applications


Weighing, Checkweighing, Counting, Totalization.


Display


7 Segment LCD with multicolor backlight.


Operation


AC Power (included), 6C (LR14) Batteries (not included), or Rechargeable Battery.


Communication


Standard RS232 and optional USB Device or Ethernet.


Construction


ABS plastic indicator, 304-stainless steel platform, powder-coated steel tubular frame, aluminum load cell, non-slip adjustable rubber feet.


Design Features


150% overload protection.

Specifications

Overview

  • Nominal Height:
    5.1" (12.95 cm)
  • Nominal Width:
    12" (30.48 cm)
  • Nominal Length:
    25.4" (64.52 cm)

Technical Data

  • Maximum Capacity:
    60 lb (30 kg)
  • Readability:
    0.01 lb (5 g)
  • Readability (Certified):
    0.02 lb (10 g)
  • Platform Size (LxW):
    14 in x 12 in (355 mm x 305 mm)
  • Legal for Trade:
    NTEP Certified, Measurement Canada Approved
  • Power:
    6 C (LR14) Batteries (Not Included), Rechargeable Battery (Not Included), AC Power (Included)
  • Tare Range:
    To capacity by subtraction
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
  • Platform Construction:
    Stainless Steel
  • Net Weight:
    22.4 lb (10.2 kg)
  • Second Scale Input:
    Not Applicable
  • Protection Rating:
    Not Applicable
  • Communication:
    Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Units of Measurement:
    Kilogram, Gram, Pound, Ounce
  • Display:
    7 Segment LCD with multicolor backlight
  • Battery Life:
    100 Hours with Rechargeable Battery, 360 Hours with Disposable Batteries
  • Outputs:
    Not Applicable
