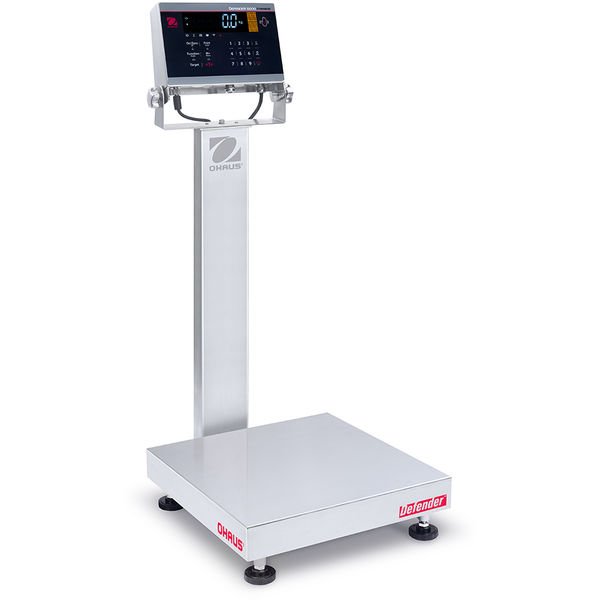

Ohaus - 30631724 - Defender™ 6000 Hybrid Advanced IP68/IP69k Washdown Bench Scale i-D61XWE125WQL7

Ohaus - 30631724 - Defender™ 6000 Hybrid Advanced IP68/IP69k Washdown Bench Scale i-D61XWE125WQL7

Ohaus - 30631724 - Defender™ 6000 Hybrid Advanced IP68/IP69k Washdown Bench Scale i-D61XWE125WQL7

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Advanced IP68/IP69k Washdown Bench Scale.

Features

The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.


Applications


Weighing, counting with APW optimization, percent weighing, checkweighing, checkcounting, filling, dynamic weighing/display hold


Display


6-digit, 7-segment white LED, 20 mm high digits


Operation


100-240 VAC / 50/60 Hz universal power supply, hardwired


Communication


Easy access communication ports including RS232 and USB host (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, discrete I/O and analog output (sold separately as accessories),GLP/GMP data output with real-time clock


Construction


316 stainless steel platform and frame, hermetically-sealed, stainless steel load cell, IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel


Design features


150% overload capacity protection, bar matrix check light, customizable print templates, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto shut-off, auto tare, adjustable non-slip rubber feet

Specifications

Overview

  • Nominal Height:
    37.3" (94.74 cm)
  • Nominal Width:
    18" (45.72 cm)
  • Nominal Length:
    24.7" (62.74 cm)

Technical Data

  • Maximum Capacity:
    250 lb (125 kg)
  • Readability:
    0.01 lb (5 g)
  • Readability (Certified):
    0.05 lb (50 g)
  • Platform Size (LxW):
    18 in x 18 in (457 mm x 457 mm)
  • Legal for Trade:
    NTEP Certified, Measurement Canada Approved
  • Power:
    Rechargeable Battery (Not Included), AC Power (Included)
  • Battery Life:
    Not Applicable
  • Communication:
    Ethernet (Available as an Accessory), 2nd RS232/RS485/USB (available as an accessory), RS232, USB Host, WiFi/Bluetooth (available as an accessory)
  • Display:
    7-Segment white LED, height 20 mm + 3 color checkweigh dot matrix LED
  • Net Weight:
    44.1 lb (20 kg)
  • Outputs:
    4-20 mA, 0-10V, 2 In / 4 Out digital I/O
  • Platform Construction:
    Stainless Steel
  • Protection Rating:
    IP69k, IP68
  • Second Scale Input:
    Not Applicable
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Gram, Kilogram, Pound, Ounce, Pound, Ounce
  • Working Environment:
    14°F - 104°F, 80%RH, non-condensing (-10°C - 40°C, 80%RH, non-condensing)
