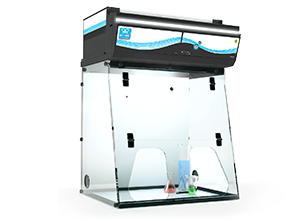

Erlab - 321SMART - Captair Smart Ductless Fume Hoods

Features
ERLAB filtering chemical fume hoods provide unrivalled filtration quality, ensuring a superior level of user protection to all other filtration or extraction devices.
By capturing toxic gases at source and filtering them with the most powerful ERLAB-developed filters in the world (10 to 1,000 times more effective than other filters on the market) they deliver at least 99.995% pure air, inside and out.
At last, these devices supply an exceptional working comfort which removes any anxiety and allowing greater concentration on research.
Safer to operate
- Erlab’s advanced carbon filtration technology and/or HEPA/ULPA accommodates your specific needs
- Meets AFNOR NF X 15 211/ANSI Z9.5-2012 filtration efficiency standard (class 1 and 2)
- Sensors that detect filter breakthrough of solvents, acids or formaldehyde
- Safety back up filter in case of main filter saturation
- Continuous monitoring of Air face velocity
- Erlab Safety Program: application analysis and validation, usage certification, filter change reminders
- Connect with eGuard for real-time status, notifications and alerts
Simpler to use
With Smart Technology, you can easily see that the hood is operating safely. Should the light pulse you are notified that:
- Containment has been compromised or,
- The filter has breakthrough or,
- There is a Fan failure
Flexibility
- The configurable filtration column will accommodate application changes
- No ductwork needed. This allows you to move the hood anywhere
Savings
- No ductwork cost
- Annual energy costs decreases significantly
- Energy savings outweigh filter replacement costs
Environment
- No dangerous chemical released into the atmosphere
- Low energy consumption
Specifications
Overview
-
Nominal Height:45.3" (115.06 cm)
-
Nominal Width:31.5" (80.01 cm)
-
Nominal Length:24.4" (61.98 cm)
Product Data
-
Air Flow:220 m3/h
-
Air Face Velocity:0.4 to 0.6 m/s
-
Voltage/Frequencyy:100-240 V / 50-60 Hz
-
Power Consumption/Max. Amperage Absorbed:65 W / 0.65A
-
Net Weight (kg):28.6kg
-
Sash Openings:Ergonomic oblong holes
-
Structure:Corrosion resistant electro-galvanized steel coated with anti-acid polymer
-
Side and Front Panels:Chemical resistant acrylic, Poly (methyl methacrylate) (PMMA)
-
Filtration Module:Polypropylene (flame retardant)
