Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE

Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE
Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE
Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE
Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE
Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE
Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE
Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE
Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE

Sheldon - SVAC2E - Economy Vacuum Ovens, 1.7 Cu.ft, 115V, Non-CE

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Vacuum ovens feature highly accurate temperature control, and gentle drying-perfect for heat sensitive materials.

Features

SHEL LAB vacuum ovens provide exceptional capabilities for fast and gentle drying of heat-sensitive materials. They prevent residue accumulation on products and allow safe drying of materials at lower temperatures than typically required when using convection ovens.



These units feature a radiant heating system that optimizes chamber space and provides excellent heat transfer and temperature uniformity. All SHEL LAB vacuum ovens are built with stainless steel chambers that are easy to clean and have exceptional durability.

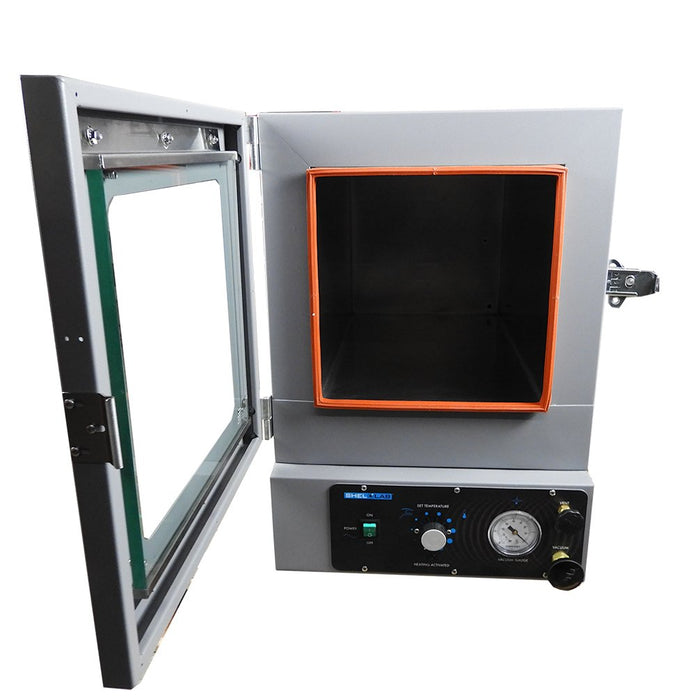

The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples. A selection of gaskets (for specific applications) and a small benchtop footprint increase the versatility of these ovens.



The SHEL LAB economy series of vacuum ovens are outstanding in any application.



Include



  • Analog Temperature Control
  • Stainless-Steel Interior
  • Built-in Overtemperature Protection
  • 24 Month Limited Warranty

Specifications

Overview

  • Nominal Height:
    25.3" (64.26 cm)
  • Nominal Width:
    18.5" (46.99 cm)
  • Nominal Length:
    27.8" (70.61 cm)
  • Internal Height:
    12" (30.48 cm)
  • Internal Width:
    12" (30.48 cm)
  • Internal Length:
    20" (50.8 cm)
  • Capacity:
    1.67

Technical Data

  • Shelf Dimensions (W x D):
    11.3 x 19.0 (287 mm x 482 mm)
  • Unit Weight:
    108 lbs (49 kg)
  • Interior Metal:
    300 SST
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +15°C - 210°C
  • Temperature Uniformity - Midrange:
    9.0°C
  • Temperature Stability - Midrange:
    0.5°C
  • Controller Type:
    Analog
  • Power Voltage, Frequency and Current:
    110-120 VAC, 50/60 Hz, 10.0 Amps
  • Max HVAC Load:
    3480 BTUs/hr

Temperature Data

  • Temperature Range Ambient:
    +15° to 210°C
  • Temperature Uniformity:
    ±9.0 @ 110°C

Accessories

  • Gasket 12 x 12 Fluorosilicone:
    3450611
  • Gasket 12 x 12 Viton:
    3450670
  • Gasket 12 x 12 Silicone Red:
    3450707
  • Gasket 12 x 12 Black Buna:
    3450708
  • Gasket 12 x 12 Red Silicone - Outgassed/Cured:
    9490542
  • SVAC2E 1-Year Extended Warranty:
    SVAC2EEXT1
  • SVAC2E 2-Year Extended Warranty:
    SVAC2EEXT2
  • SVAC2E 3-Year Extended Warranty:
    SVAC2EEXT3
