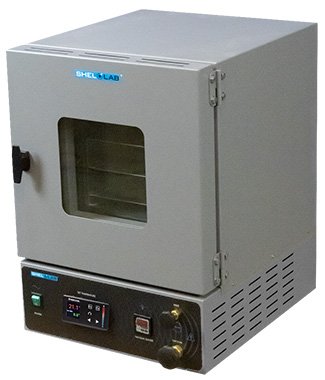

Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V

Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V
Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V
Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V
Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V
Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V
Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V
Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V
Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V
Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V
Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V

Sheldon - SVAC1 - Vacuum Ovens, 0.6 Cu.ft, 115V

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Vacuum ovens feature highly accurate temperature control, and gentle drying-perfect for heat sensitive materials.

Features

Our revamped SHEL LAB SVAC vacuum ovens provide exceptional capabilities for fast and gentle drying of heat-sensitive materials. Vacuum ovens prevent residue accumulation on products and use lower temperatures than typical convection ovens. Your products are processed with minimal impact and maximum throughput.

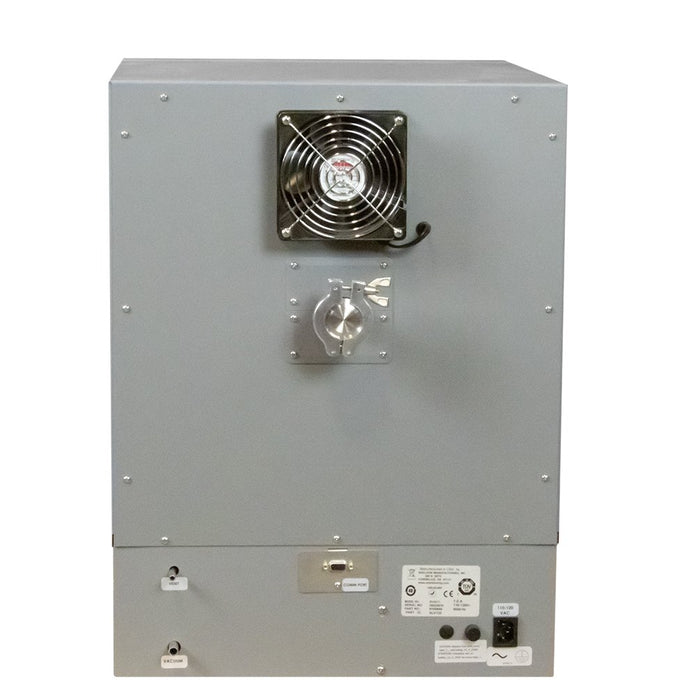

SHEL LAB vacuum ovens have stainless steel interiors and provide exceptional durability and stability. Available in 4 sizes, SVAC Vacuum Ovens support a diverse array of applications. To achieve required vacuum levels, users can choose from a 3/8-inch orifice or a KF-25 fitting to withstand heavy use and minimize draw-down time.

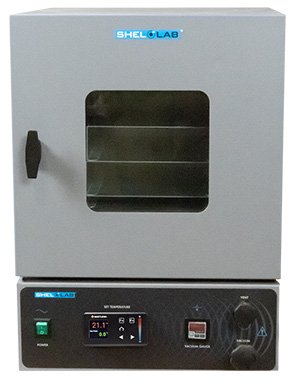

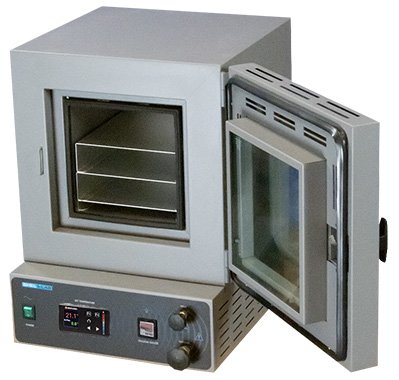

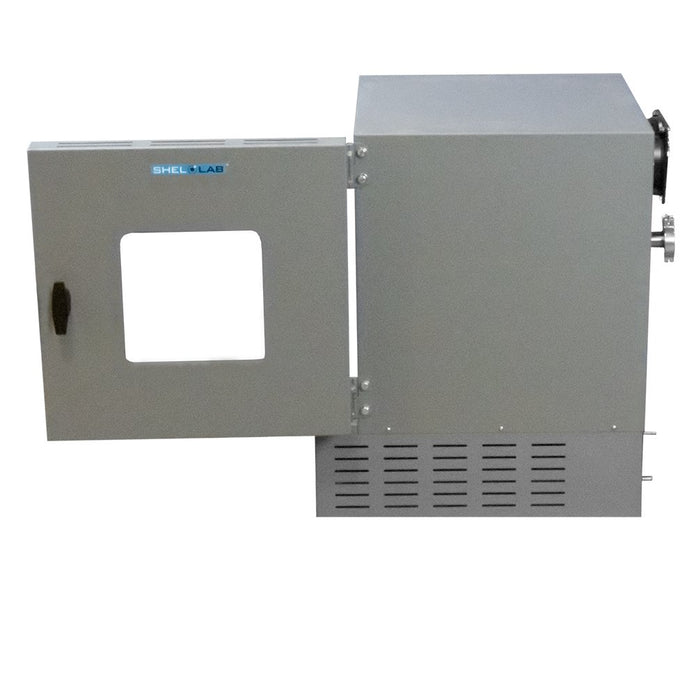

The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples.



SHEL LAB Vacuum Ovens are equipped with silicone gaskets.



Include

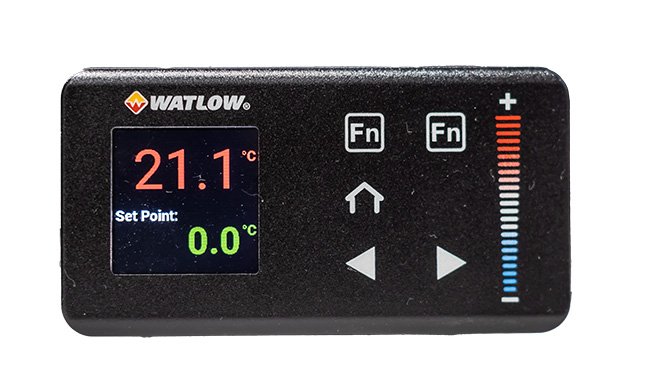

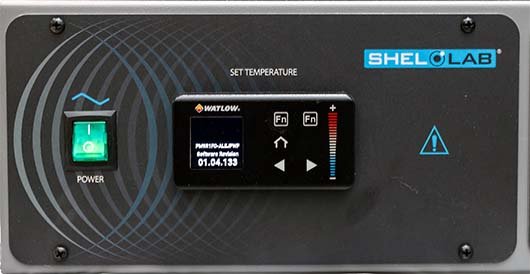

  • Watlow PM9 Plus Controller
  • Generous Usable Shelf Area
  • Achieve Impressive Vacuum Levels
  • Sizes Range from 0.6 - 4.5 Cubic Feet
  • Built-in Overtemperature Protection
  • 24 Month Limited Warranty
  • Extended Warranties Available (Ask Your SHEL LAB Sales Rep)

Specifications

Overview

  • Nominal Height:
    23.7" (60.2 cm)
  • Nominal Width:
    17.5" (44.45 cm)
  • Nominal Length:
    23" (58.42 cm)
  • Internal Height:
    9" (22.86 cm)
  • Internal Width:
    9" (22.86 cm)
  • Internal Length:
    12" (30.48 cm)
  • Capacity:
    0.56

Technical Data

  • Shelf Dimensions (W x D):
    8.8 x 11.0 (223 mm x 279 mm)
  • Maximum Weight per Shelf:
    35 lb (15.8 kg)
  • Permitted Total Load:
    105 lb (47.6 kg)
  • Unit Weight:
    102 lbs (47 kg)
  • Interior Metal:
    300 Stainless Steel
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +10°C - 220°C
  • Temperature Stability - Midrange:
    +/- 0.1 @ 150°C
  • Controller Type:
    Watlow PM9 Plus
  • Display Resolution:
    0.1°C
  • Power Voltage, Frequency:
    110-120 VAC, 50/60 Hz
  • Safety Certifications:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE

Voltage Specific

  • Frequency:
    50/60Hz
  • Voltage:
    110V-120V/220V-240V
  • Power Current (Max Draw), Amps:
    7/4.5
  • Heat-Up to Ambient - Minutes to 80°C:
    40
  • Heat-Up to Ambient - Minutes to 150°C:
    70
  • Heat-Up to Ambient - Minutes to 220°C:
    120
  • Temperature Range:
    10°C above ambient to 220°C
  • Temperature Stability:
    +/- 0.1°C @ 150°C
  • Operational Vacuum Range:
    -3.0 to -29.9 InHg
  • Vacuum Display Range:
    0-29.9 InHg

Description/Temp - Application

  • Gasket Red 230°c - General & Hi-Temp:
    3450630/9"
  • Gasket Black Silicone 230°c - General & Hi-Temp:
    3450706/9490543 Outgassed/9"
  • Gasket Viton 205°c - Acidic:
    3450669/9"
  • Gasket Fluorosilcone 175°c - Acidic:
    3450610/9"
  • Gasket Black Buna 125°c - Solvent:
    3450712/9"
