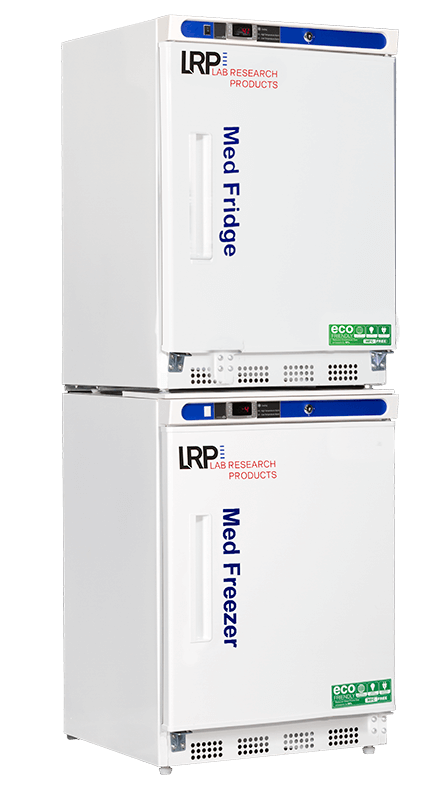

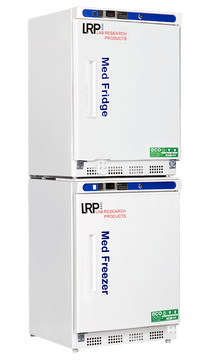

Lab Research Products - PH-LRP-HC-RFC9 - 9 Cu. Ft. Plus Series Pharmacy/Vaccine Refrigerator & Freezer Combination

Features
The Plus Series Pharmacy Dual Temp Combination Refrigerator/Freezers feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings refrigerators only.
Please note this unit requires 2 outlets.
The RFC-9/9G, RFC-9SS, FRFC10, and RFC-16A models are designed with a "front-breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit, enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Detail
- Two exterior solid swing doors right hinged*
- 2 adjustable/1 fixed shelves refrigerator/2 fixed shelves freezer with guard rails on back in Refrigerator to prevent product from being pushed against back wall
- Back wall evaporator cover, Refrigerator
- Forced draft circulation Refrigerator
- Keyed door locks
- Magnetic door gasket for positive seal
- Recessed door handle, freezer; heavy duty door handle, refrigerator
- Leveling legs
- Stacking kit
- LED interior lights
- Two probe access ports (3/8"); one, refrigerator/one, freezer
- White powder coated exterior
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Please note this unit requires 2 outlets.

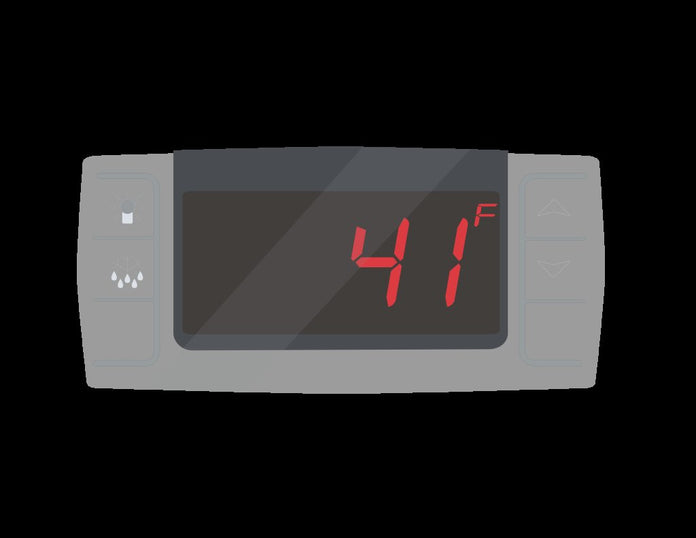

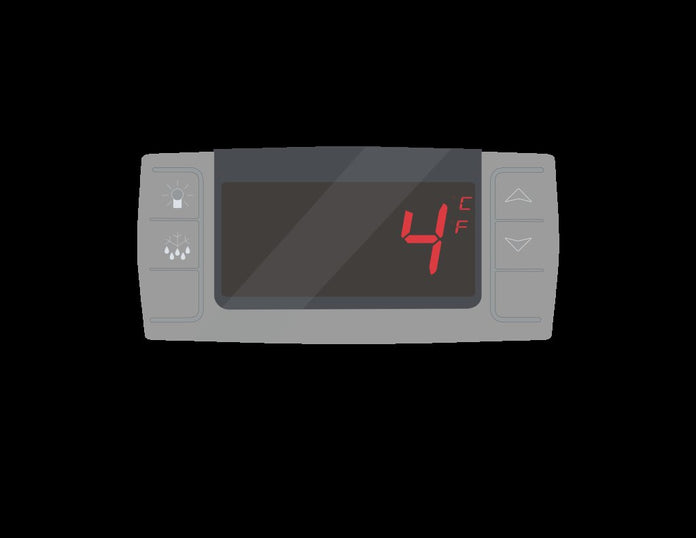

Temp Controller
- Microprocessor temperature controller, refrigerator and freezer
- Digital temperature display, refrigerator and freezer
- Adjustable operating temperature range: Refrigerator: 1°C - 10°C; Freezer: -15°C - -25°C
- Audible and visual high and low temperature alarms, refrigerator and freezer
- 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
- Remote alarm contacts, refrigerator and freezer
Specifications
Overview
-
Nominal Height:66.75" (169.55 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Capacity:9
Technical Data - Refrigerator
-
Cu. Ft.:4.6
-
Defrost:Cycle
-
Door:1 Solid (Reversible)
-
Int Door:0
-
Shelves:2 Adj/1 Fixed
-
Interior Dim. W:19.25"
-
Interior Dim. D:17.25"
-
Interior Dim. H:24.50"
-
Refrigerant:R600a
-
H.P.:0.12
-
Amps:1.74
-
Weight:200 lbs
Technical Data - Freezer
-
Cu. Ft.:4.2
-
Defrost:Manual
-
Door:1 Solid (Reversible)
-
Int Door:0
-
Shelves:2 Fixed
-
Interior Dim. W:19"
-
Interior Dim. D:17.25"
-
Interior Dim. H:24.50"
-
Refrigerant:R600a
-
H.P.:0.12
-
Amps:1.5
-
Weight:200 lbs.
Drawings
-
PH-LRP-HC-RFC9 Ext CutsheetVisit Link
-
PH-LRP-HC-RFC9 Int CutsheetVisit Link
Useful Links
-
PH-LRP-HC-RFC9 SpecSheetVisit Link
