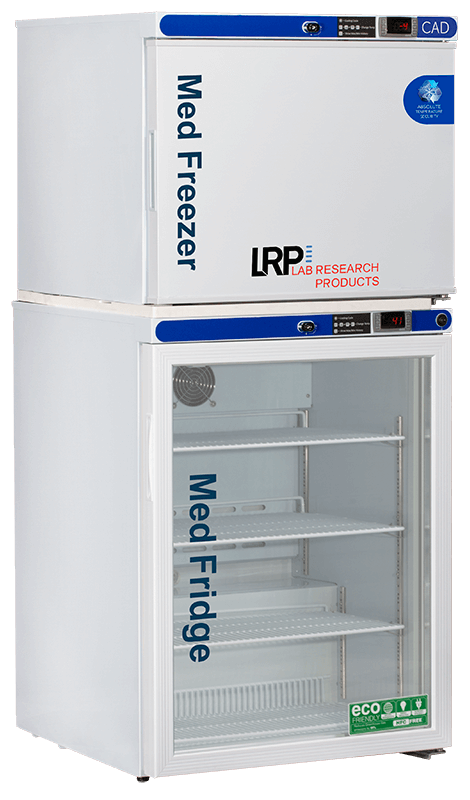

Lab Research Products - PH-LRP-HC-RFC7A-CAD - 7 Cu. Ft. Plus Series Pharmacy/Vaccine Refrigerator & Freezer Combination with Controlled Auto Defrost Freezer

Features
Our patented "Controlled Auto Defrost" technology provides the convenience of an auto-defrost design while still ensuring that vaccines remain at consistent and stable temperatures below 5°F (-15°C).
The acceptable temperature ranges for vaccine storage are between 36° Fahrenheit and 46° Fahrenheit (or between 2° Celsius and 8° Celsius) in the refrigerator and between -58° Fahrenheit and +5° Fahrenheit (or between -50° Celsius and -15° Celsius) in the freezer.
Details
- Refrigerator/Freezer freestanding thermometer with 3 year certificate of calibration, with min/max memory, °F/°C switchable
- Audible and visual high and low temperature alarms, refrigerator and freezer
- Remote alarm contacts, refrigerator and freezer
- Six adjustable shelves with guard rail on back to prevent product from being pushed against back wall, Refrigerator
- Two adjustable shelves with guard rail on back to prevent product from being pushed against back wall, Freezer
- Bottom footed shelf to allow air circulation, Refrigerator and Freezer
- Vaccine storage power cord warning label
- Forced draft circulation, Refrigerator
- Keyed door locks
- Magnetic door gasket for positive seal
- Integrated door handles
- Leveling legs
- Stacking kit
- Two probe access ports (3/8"); one, refrigerator/one, freezer
- White powder coated exterior
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
- Pyxis®, Omnicell®, and AcuDose RX® compatible
Temp Controller
- Microprocessor temperature controller, refrigerator and freezer
- Digital temperature display with sample simulated probe, refrigerator and freezer
- Adjustable operating temperature range: Refrigerator: 36°F to 46°F (2°C to 8°C), Freezer: 5°F to -13°F (-15°C to -25°C)
- Defrost:
- Auto defrost cycle every 6 hours: (at Set Point -11°F /-24°C)
- Max air temp in empty freezer: 5°F (-15°C)
- Max air temp in loaded freezer: 3°F (-16°C)
- Max sample temp in empty freezer: 0°F (-18°C)
- Max sample temp in loaded freezer: -4°F (-20°C)
Specifications
Overview
-
Nominal Height:53.1" (134.87 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.25" (61.6 cm)
-
Capacity:7
Technical Data - Freezer
-
Cu. Ft.:1
-
Defrost:Controlled Auto
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Adj.
-
Interior Dim. W:17.75"
-
Interior Dim. D:7.50"
-
Interior Dim. H:12.50"
-
Refrigerant:R600a
-
H.P.:0.12
-
Amps:1
-
Weight:135 lbs.
Technical Data - Refrigerator
-
Cu. Ft.:5.2
-
Defrost:Cycle
-
Door:1 Glass
-
Int Door:0
-
Shelves:3 Adj.
-
Interior Dim. W:19.87"
-
Interior Dim. D:16.00"
-
Interior Dim. H:26.75"
-
Refrigerant:R600a
-
H.P.:0.16
-
Amps:1.3
-
Weight:135 lbs.
Drawings
-
PH-LRP-HC-RFC7A-CAD Ext CutsheetVisit Link
-
PH-LRP-HC-RFC7A-CAD Int CutsheetVisit Link
Useful Links
-
PH-LRP-HC-RFC7A-CAD SpecSheetVisit Link
