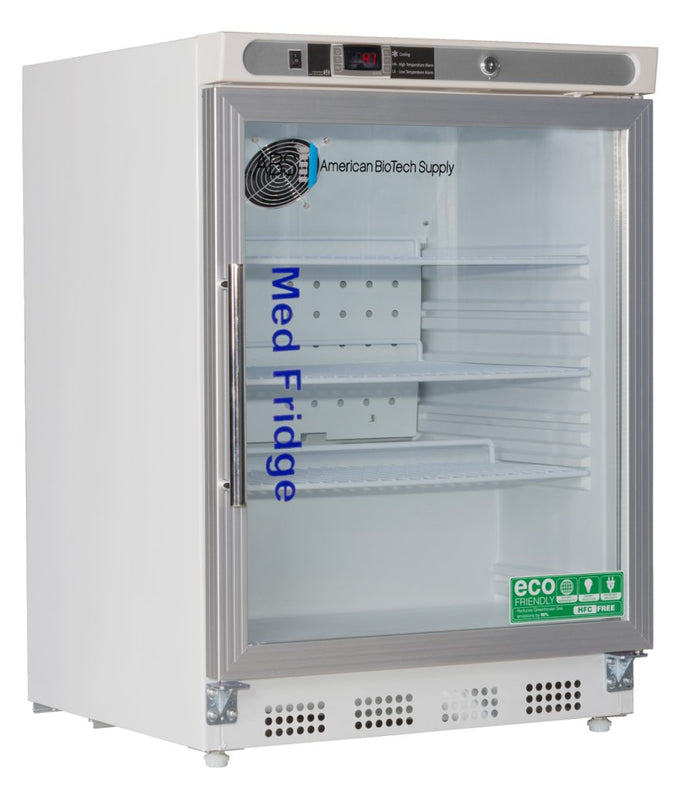

American Biotech Supply - PH-ABT-HC-UCBI-0404G - 4.6 Cu. Ft. Capacity Premier Pharmacy/Vaccine Undercounter Refrigerator Built-In

American Biotech Supply - PH-ABT-HC-UCBI-0404G - 4.6 Cu. Ft. Capacity Premier Pharmacy/Vaccine Undercounter Refrigerator Built-In
American Biotech Supply - PH-ABT-HC-UCBI-0404G - 4.6 Cu. Ft. Capacity Premier Pharmacy/Vaccine Undercounter Refrigerator Built-In

American Biotech Supply - PH-ABT-HC-UCBI-0404G - 4.6 Cu. Ft. Capacity Premier Pharmacy/Vaccine Undercounter Refrigerator Built-In

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Pharmacy Premier Built In Undercounter Refrigerators feature a microprocessor temperature controller and display, which allows for precise temperature control, verification and recovery versus mechanical style thermostats.

Features

The Pharmacy Premier Built In Undercounter Refrigerators feature a microprocessor temperature controller and display, which allows for precise temperature control, verification and recovery versus mechanical style thermostats.



The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.



The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • Three shelves (two adjustable/one fixed) with guard rail on back to prevent product from pushing against back wall
  • Back wall evaporator cover
  • Vaccine storage power cord warning label
  • Forced draft circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • LED interior light
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty

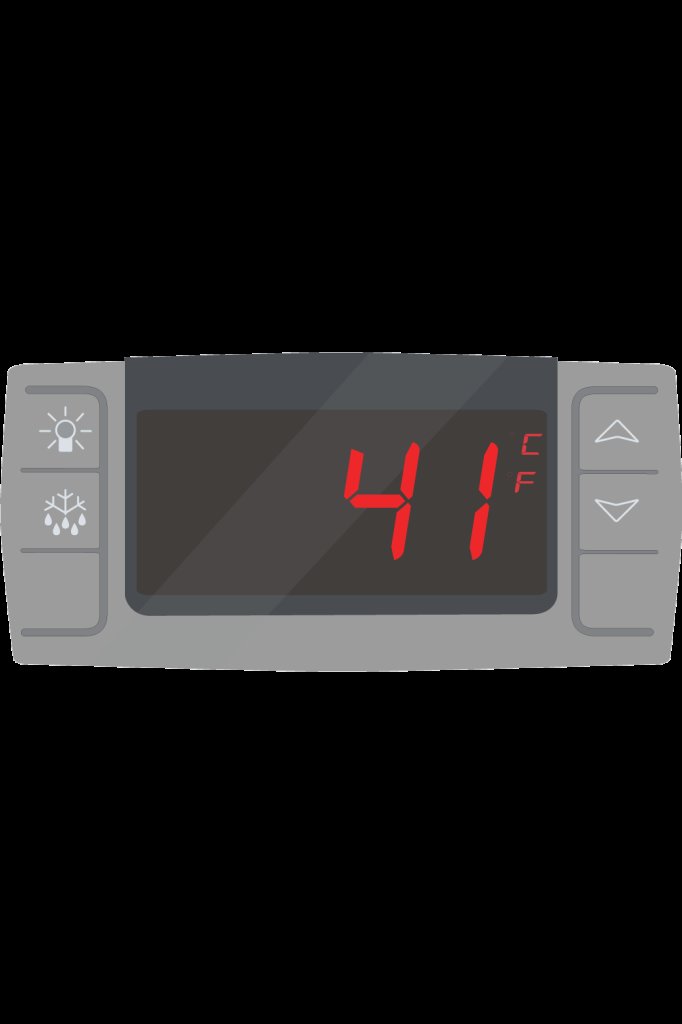

Temp Controller



  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in sample bottle
  • Adjustable operating temperature range: 36°F to 46°F (2°C to 8°C)
  • Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm

Specifications

Overview

  • Nominal Height:
    33.38" (84.79 cm)
  • Nominal Width:
    23.75" (60.33 cm)
  • Nominal Length:
    24.5" (62.23 cm)
  • Internal Height:
    24.5" (62.23 cm)
  • Internal Width:
    19.25" (48.9 cm)
  • Internal Length:
    17.25" (43.82 cm)
  • Capacity:
    4.6

Technical Data

  • Defrost:
    Cycle
  • Door:
    1 Glass
  • Int Door:
    0
  • Shelves:
    2 Adj/1 Fixed
  • Refrigerant:
    R600a
  • H.P.:
    0.12
  • Amps:
    1.74
  • Weight:
    97 lbs.
