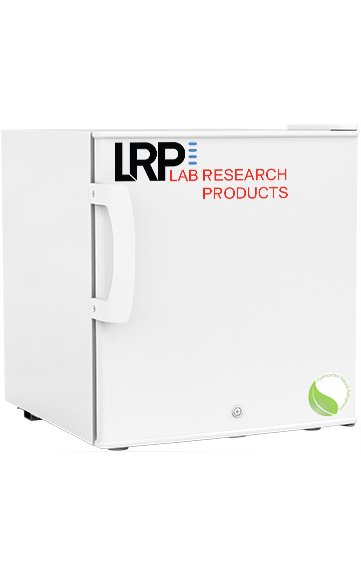

Lab Research Products - LRP-HC-UCFS-0220M - 1.5 Cu. Ft. General Purpose Undercounter Freezer Freestanding

Lab Research Products - LRP-HC-UCFS-0220M - 1.5 Cu. Ft. General Purpose Undercounter Freezer Freestanding
Lab Research Products - LRP-HC-UCFS-0220M - 1.5 Cu. Ft. General Purpose Undercounter Freezer Freestanding

Lab Research Products - LRP-HC-UCFS-0220M - 1.5 Cu. Ft. General Purpose Undercounter Freezer Freestanding

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The General Purpose Freestanding Undercounter Freezers are intended for general purpose applications only where precise temperature control and maintenance are not essential and there are no requirements for temperature alarms. Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure. Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a. Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Features

The General Purpose Free Standing Undercounter Freezers are intended for general purpose applications only where precise temperature control and maintenance are not essential and there are no requirements for temperature alarms.



Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Temp Controller



  • Controller technology: Mechanical Thermostat
  • Average Cycle Temperature: - 20°C
  • Disclaimers: Defrosting of the unit will need to be performed periodically to prevent severe ice build-up. Freestanding models (“UCFS”) require 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Specifications

Overview

  • Nominal Height:
    19.25" (48.9 cm)
  • Nominal Width:
    17.5" (44.45 cm)
  • Nominal Length:
    19.5" (49.53 cm)
  • Internal Height:
    13.75" (34.93 cm)
  • Internal Width:
    13" (33.02 cm)
  • Internal Length:
    1.88" (4.78 cm)
  • Capacity:
    1.5

General Description and Application

  • Door:
    One solid swing door, right hinged
  • Shelves:

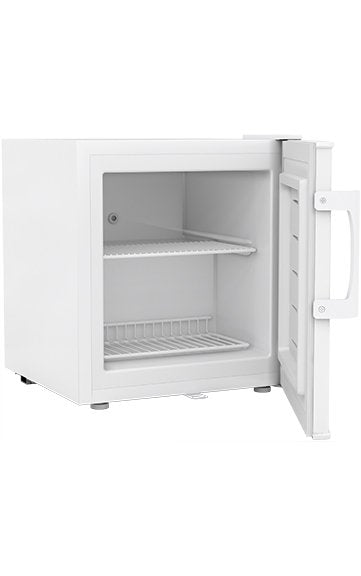

    1 fixed shelf upper / bottom footed shelf for airflow management
  • Freezer Compartments:
    1
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    Rear wall port (3/4" dia.)
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed Door Lock
  • Product Weight (lbs):
    35
  • Shipping Weight (lbs):
    40
  • Rated Amperage:
    0.8 Amps
  • Power Plug/Power Cord:
    NEMA 5-15 Plug, 8-10 ft. typical, conforms to UL471 requirements
  • Facility Electrical Requirement:
    110-120V AC-15 A (minimum)

Refrigeration System

  • Refrigerant:
    R600a
  • Defrost:
    Manual Defrost
