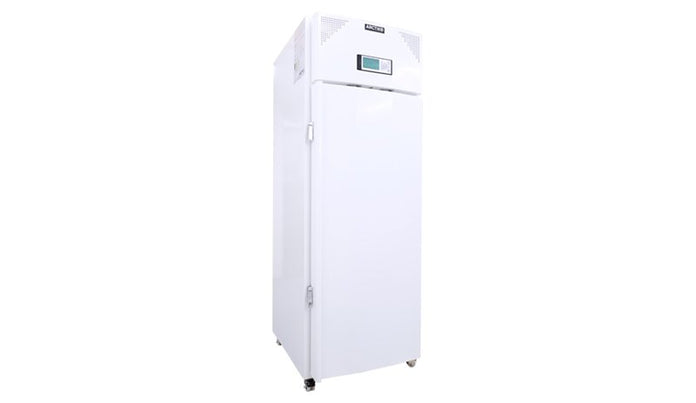

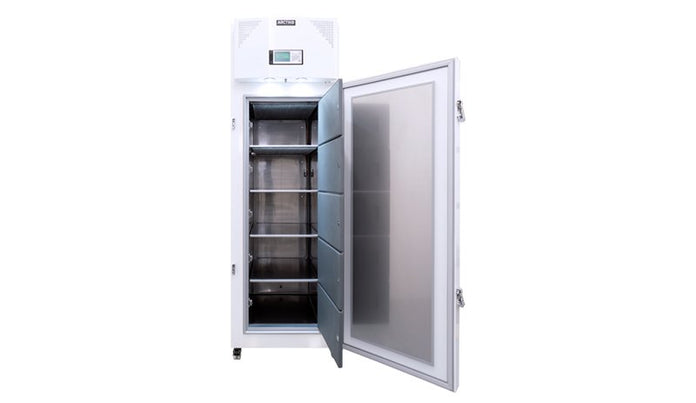

Arctiko - ULUF 450 - Medium ULT Freezer ULUF
Features
The ULUF 450-2M ultra-low temperature freezer features ARCTIKO’s single compressor system with direct cooling, for higher temperature uniformity and excellent temperature stability. The ULUF -86°C series is produced with the true and original single compressor technology.
DISCONTINUED - REPLACED BY ULUF P400/MV
Specifications
Overview
-
Nominal Height:78.34" (198.98 cm)
-
Nominal Width:28.34" (71.98 cm)
-
Nominal Length:34.84" (88.49 cm)
-
Internal Height:52.95" (134.49 cm)
-
Internal Width:18.89" (47.98 cm)
-
Internal Length:23.93" (60.78 cm)
-
Capacity:13.9
Main Specifications
-
Item Code:DAI 1414 / 1000007
-
Temperature Range (°C):-40 / -86 °C
-
Max. Ambient Temperature (°C):+25 °C
-
Weight (KG):175
-
Insulation (mm):120
-
Cooling Technology:Single System / Static Cooling
-

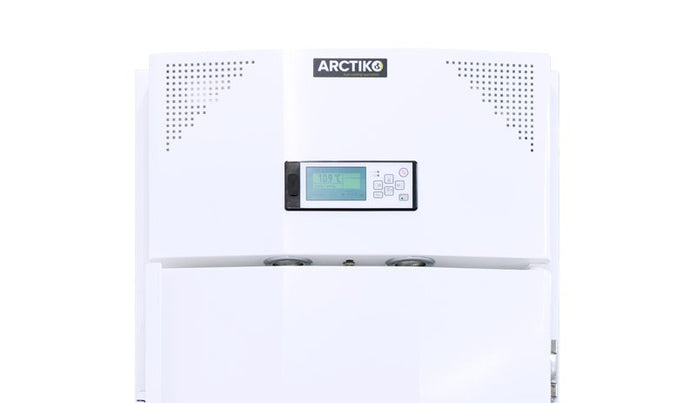

Controller Model / Probe Type:Arctiko G 214® / Pt 1000
-
Power Supply (V):230
-
Frequency (Hz):50
-
Power Consumption (KWHH/24H):14.6
-
AMP (A):4.4
-
Power (Watt):773
-
Horse Power (HP):2.75
Refrigerant & Cabinet
-
Number Of Compressors:1
-
Refrigerant:EP88
-
Interior Cabinet Material:Stainless Steel
-
Exterior Cabinet Material:Painted Steel
-
Colour (Exterior Cabinet):White
-
Foam Agent:Polyurethane
-
VIP Vacuum Insulated Panels:No
Shipping
-
Shipping Weight (KG):243
-
Shipping Dimensions WxDxH (cm):84 x 104 x 218
-
Shipping Volume (M³):1.90
Drawings
-
Wiring Diagram ULUF 450-2M 750-2MVisit Link
-
Dimension Drawing ULUF 450-2MVisit Link
Useful Links
-
Safety Datasheet EP88Visit Link
-
CE Certificate ULUF 15/65/125 & 450-2M/750-2MVisit Link
-
ISO 9001Visit Link
-
UKCA Certificate ULUF 450 2MVisit Link
