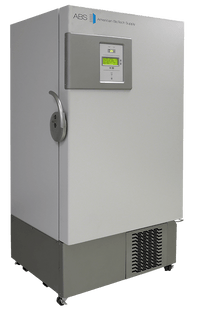

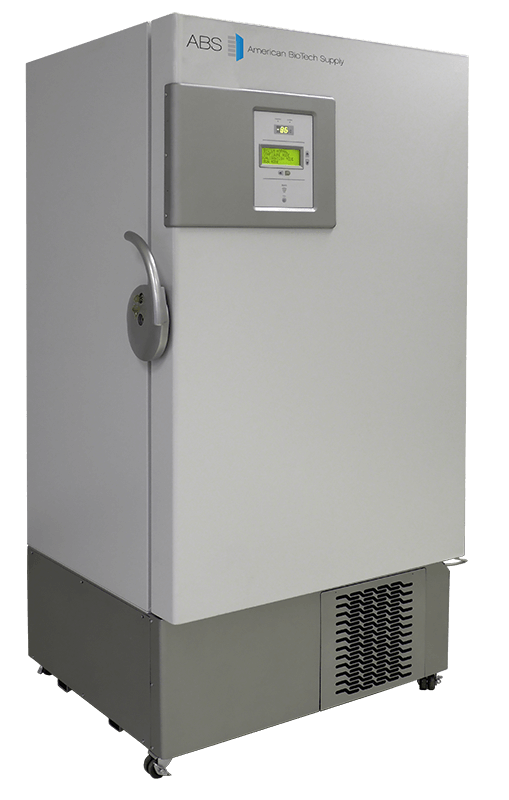

The American Biotech Supply Ultra Low Temperature Freezers deliver rich features and benefits for the most demanding cold storage applications. Designed to utilize standard racks, this unit offers high efficiency with low noise by utilizing two high efficiency compressors that keep decibel levels low, while still having 300 BTUh reserve capacity.

Features

The American Biotech Supply Ultra Low Temperature Freezers deliver rich features and benefits for the most demanding cold storage applications. Designed to utilize standard racks, this unit offers high efficiency with low noise by utilizing two high-efficiency compressors that keep decibel levels low, while still having 300 BTUh reserve capacity.



The interior of the unit features a triple gasket seal, vacuum relief port, five double-walled insulated doors, and 5 1/2 - 6" of urethane insulation in critical areas. Units are made in the USA and are UL and C-UL listed.



Details



  • Four stainless steel shelves, adjustable on 0.5" centers
  • Cam action handle for one-hand latching of the exterior door
  • Handle supplied with key lock and door switch for audible and visual alarms
  • Four heavy-duty swivel casters with locks
  • Vacuum relief port for quick access after door closures
  • CFC-free refrigerant
  • Two-year parts and labor warranty, plus an additional three-year compressor parts warranty

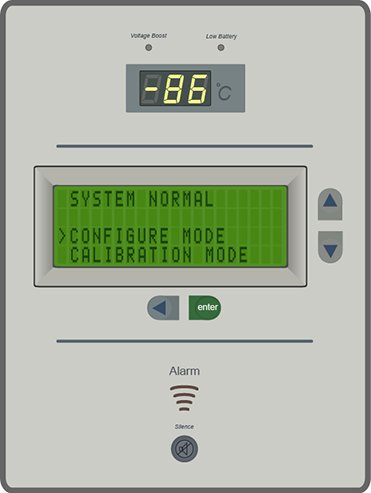

Temp Control



  • 25 Cu.Ft. Capacity
  • Four stainless steel shelves, adjustable on 0.5" centers
  • Cam action handle for one-hand latching of the exterior door
  • Handle supplied with key lock and door switch for audible and visual alarms
  • Four heavy-duty swivel casters with locks
  • Vacuum relief port for quick access after door closures
  • CFC-free refrigerant
  • Two-year parts and labor warranty, plus an additional three-year compressor parts warranty

Specifications

Overview

  • Nominal Height:
    79.6" (202.18 cm)
  • Nominal Width:
    49" (124.46 cm)
  • Nominal Length:
    36.3" (92.2 cm)
  • Internal Height:
    50.5" (128.27 cm)
  • Internal Width:
    34.8" (88.39 cm)
  • Internal Length:
    23" (58.42 cm)
  • Capacity:
    25

Technical Data

  • Defrost:
    Manual
  • Door:
    1 Solid
  • Int Door:
    5
  • Shelves:
    4 Fixed
  • H.P.:
    0.5 x 0.5
  • Amps:
    10
  • Weight:
    730 lbs.
