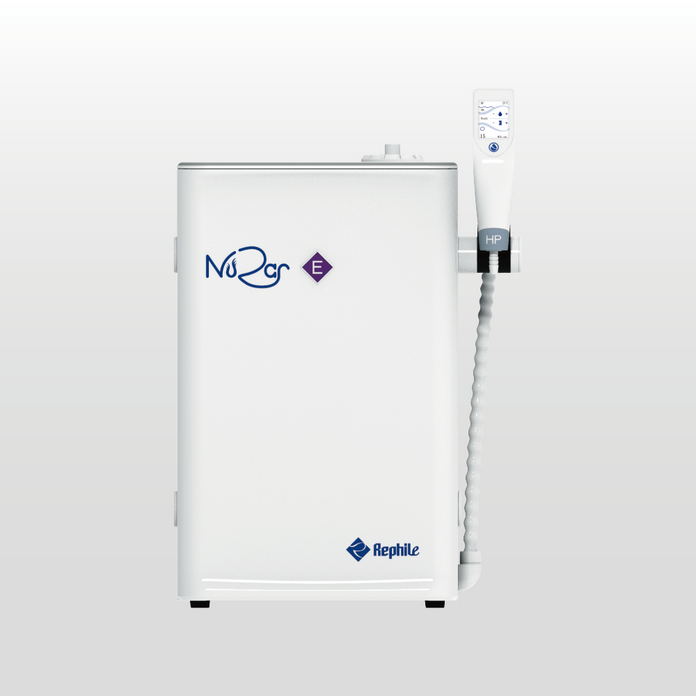

NuZar water system set, E produces EDI water (Type II water) from tap water directly.

The NuZar laboratory water purification systems are compact and powerful. They are specifically designed for laboratories that demand a balance between cost of ownership and exceeding their purified water requirements.

NuZar EDI water system set, E is CE/RoHS certified. RephiLe provides full document support to meet user's GMP, GSP, GAP, GCP, GLP requirements.

NuZar E10 Set System Includes:

• Main system
• RO membrane
• 10L tank preinstalled
• Tank vent filter
• NuZar AC and P Pack cartridges
• Cleaning Pack
• Leak sensor

Key Features

• Simple installation and maintenance
• RFID tracking of consumables (RO Pack included) for enhanced management
• Easy to remove consumable access cover
• Automatic RO membrane cleaning cycles (Cl2 and pH cleaning)
• Reliable water quality and stable system performance
• Stable RO permeability over a wide range of temperatures
• Diversion to drain if quality of RO permeate falls below a pre-set set-point
• Mercury-free germicidal UVC LED lamp preinstalled in tank sanitation module
• Data traceability
• Automatic data backup for up to 2 years
• Easy data transfer through multiple interfaces, such as LAN, USB, etc.
• Low running cost
• Environmentally friendly. High recovery rate
• Self-maintenance functions for maximum RO membrane effectiveness and lifetime
• RFID record of cartridge history for predictable consumable replacements
• Highly-efficient cartridge
• Compact and small footprint
• An in-built single pretreatment P Pack
• Placement flexibility - on the bench or on a wall
• All-in-one design. Space-Saver

Main Components

Cartridge

• Optimized flow design to improve water quality stability & efficiency of polishing resins
• High pressure rated housings, proprietary sealing, and double O-ring design ensures operational confidence
• Cartridge color, label, and RFID recognition prevent incorrect installation

Ergonomic dispenser with 2.4" color touch screen

• One dispenser for one system
• Intuitive display - water quality with temperature compensation, volumetric dispensing and flow rate
• System alerts are displayed on the touch screen
• Effortless adjustment - dispensing rate (up to 2 L/min), manual and volumetric dispensing
• Choice of final filters: 0.2 μm final filter
• Two dispenser heights for the ultimate in flexibility

Storage Tank

• A 10 L integrated HDPE tank equipped with a sanitization module featuring a mercury-free germicidal UVC LED lamp (peak emission wavelength at 265 nm)
• Extendable to 30/60/100/350 L (with a mercury-free tank sanitization module)
• Tank recirculation function to guarantee water quality in the tank

Applications

• Preparation of chemical and bio-reagents
• Preparation of culture media / buffer
• Water supply for clinical analyzers
• Medical device and equipment rinsing
• For serum and blood fractionation
• Water supply for ultrapure water systems
