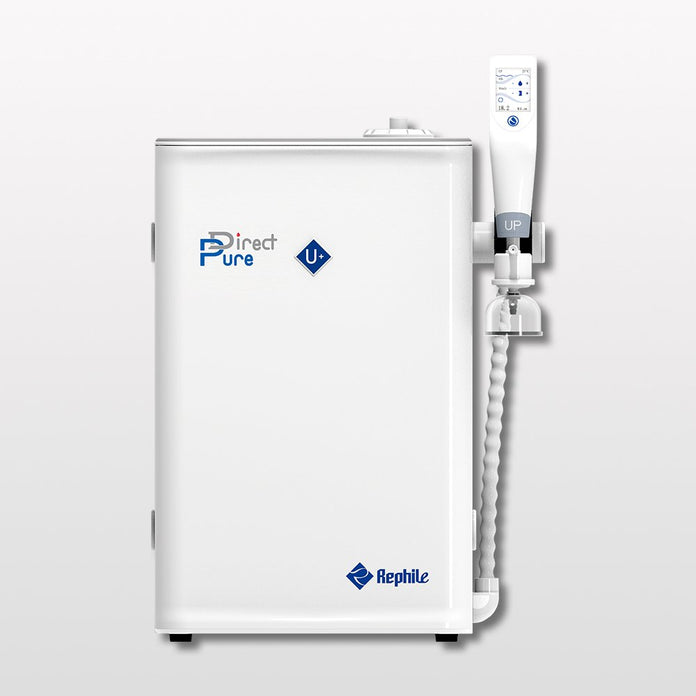

Direct Pure water system set, U+ produces ultrapure water (Type I water) and DI water (Type II water) from tap water directly. Quality of ultrapure water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards. Type II water quality as defined by ASTM, CAP, CLSI and ISO 3696 / BS 3997 and also complies with the purified water requirements from the European and U.S. Pharmacopoeia.

The Direct Pure laboratory water purification system s is convenient. They are specifically designed for laboratories that demand a balance between cost of ownership and exceeding their purified water requirements.

The system is CE/RoHS certified. RephiLe provides full documents support to meet user's GMP, GSP, GAP, GCP, GLP requirements.

Direct-Pure U+ Set System Includes:

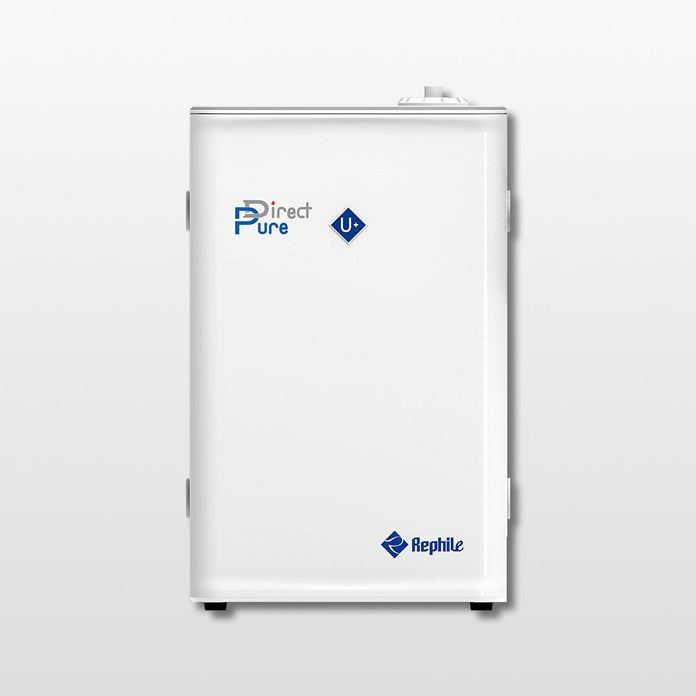

• Main system
• RO membrane
• UV preinstalled
• NuZar P, H and U Pack cartridges and a 0.2 um final filter
• Cleaning Pack
• 10L tank and tank sanitization module preinstalled
• Tank vent filter RATANKVN1
• Leak sensor

Reliable water quality

• A Temperature-independent RO system that maintains consistent reverse osmosis (RO) permeability across a broad range of ambient temperatures.
• RO permeate rejection when its quality failes to meet the specified setpoint
• Automatic hourly recirculation of ultrapure water.
• The optimized flow path design ensures a high level of water purity and stability while also enhancing the polishing efficiency of the purification resin.

Designed for Simplicity

• The system comes with one single dispensing handle equipped with a 2.4-inch color touchscreen. An intuitive menu system allows you to easily access to real-time water quality monitoring, manual and volumetric dispensing, adjustable flow rates, and system alerts.
• 9 display languages available for selection.
• Quick Installation. Effortless setup with intuitive plug-and-play connections; no tools or technical expertise required.
• Simple maintenance and upkeep. The magnetic front cover offers instant access to consumables for rapid replacement.

Built-in safety features

• Automatic shutdown mechanism triggered by leak detection.
• Consumables usage data are automatically tracked, enabling predictive maintenance and ensuring uninterrupted operation.

Data traceability

• Automatic data backup for up to 2 years, including historical water quality. parameters and alarm records. The data can be easily exported and printed for further analysis and reporting.
• Easily export data through various interfaces, such as LAN and USB, which can be seamlessly
• Integrated into your existing laboratory management system for comprehensive analysis.

Environmentally friendly

• A mercury-free 265 nm germicidal UV lamp is utilized in the sanitization module.
• RO recovery loop is designed to optimize the water recovery rate and improv overall water utilization.
• Digital and paperless data management minimizes paper consumption and waste.
• The system is manufactured using green energy sources, such as solar power, which minimizes its carbon footprint and aligns with sustainable practices.

Low running cost

• RO Self-maintenance and cleaning functions significantly extends the lifespan and efficiency of the RO membrane, minimizing the frequency of manual interventions and downtime.
• High-efficiency cartridges contribute to reduced operational expenses.
• Small footprint and energy-efficient components minimize installation space and cost requirements while reducing energy consumption

Main Components

1. Cartridge

• High-pressure-rated housings, proprietary sealing technology, and a double O-ring design enhance leak resistance and operational confidence.
• Color-coded labels and clear identification markings prevent incorrect installation, thereby maintaining the integrity of the purification system and ensuring consistent water quality. (easy to install and maintain the purification system.)
• An integrated single pretreatment P Pack offers an effective barrier against common contaminants found in tap water, including colloids, particles, and residual chlorine. It protects the downstream purification units and prolongs their lifespan.
• The specially designed sliding installation structure makes it easy to secure the cartridge in place, ensuring a stable and reliable connection. The simple unlock and lock mechanism allows for quick and convenient cartridge changes.

2. RO membrane

• It boasts a high flow rate of up to 45 L/h, ensuring efficient water purification.
• The RO membrane is conveniently housed in a single cartridge for easy, independent replacement.

3. Final filter

• The dispenser is compatible with a variety of final filters from leading brands, offering tailored solutions for a range of applications.
• A 0.2 μm PES High Flux Capsule Filter for the production of particle- and bacteria-free ultrapure water.
• RephiBio filter for producing water free from pyrogen, nuclease, protease, and bacteria.
• Every final filter is equipped with a protective end-bell that provides an additional layer of defense against external contaminants.

4. Remote Dispenser

• The ergonomic one-handed operation handle allows for easy use, even when wearing gloves or with wet hands. The system offers two alternative resting positions for the dispenser handle, ensuring convenient water dispensing in various installation settings.

5. Dispenser

• The U+ extended models feature a 3-meter remote water dispenser, providing convenient access to purified water from anywhere within the lab.
• The dispenser is securely mounted on a standalone height-adjustable stand with an antiskid base that keeps it securely in place. The stand offers 360-degree rotation for ultimate convenience.

6. Storage Tank

• Models with a built-in 10-liter integrated HDPE tank are available. The all-in-one unit comes fully assembled for your convenience and includes a sanitization module that utilizes a pre-installed, mercury-free germicidal UV lamp, as well as a built-in continuous liquid level sensor for accurate, real-time measurement of tank water levels.
• Scalable to 30/60/100/350 liters, each equipped with a mercury-free tank sanitization module.
