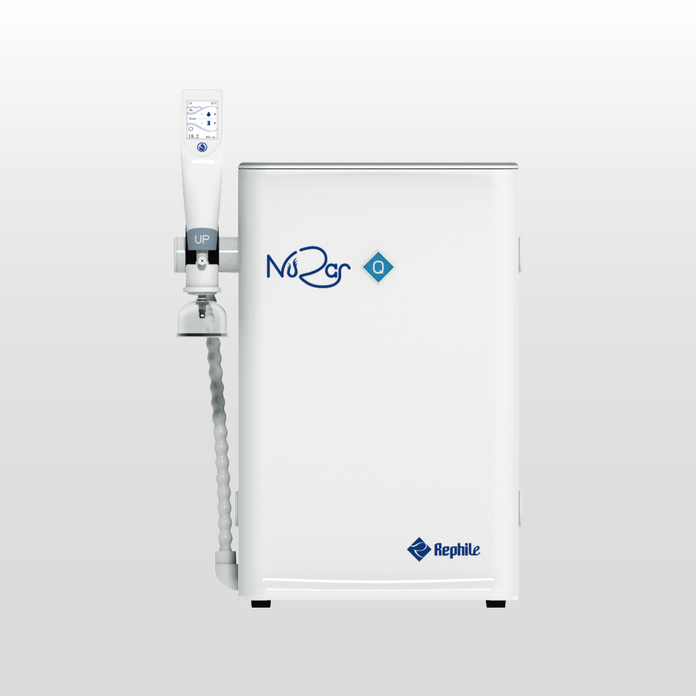

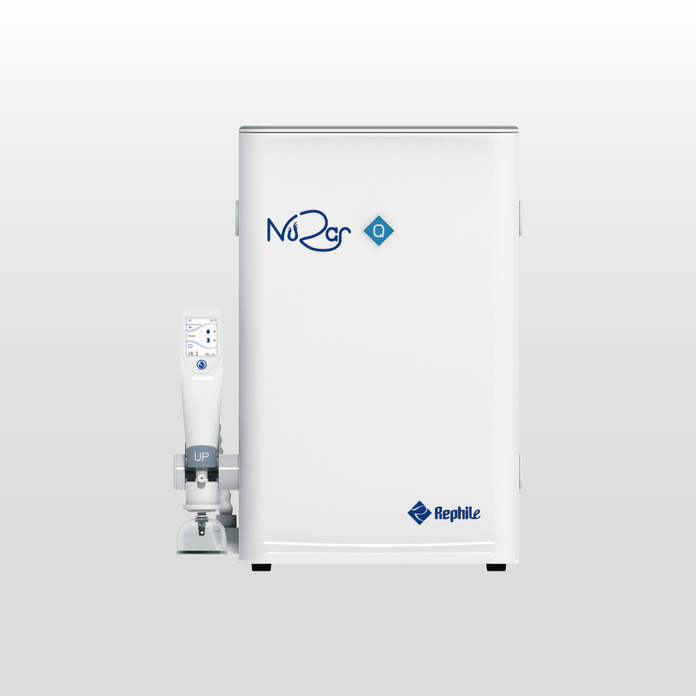

Rephile - RN0Q000T0K - NuZar Water System, Q TOC Set
Features
NuZar ultrapure water system set, Q produces ultrapure water (Type I water) from RO, distilled or deionized water. Quality of ultrapure water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards.
The NuZar laboratory water purification systems are compact and powerful. They are specifically designed for laboratories that demand a balance between cost of ownership and exceeding their purified water requirements.
NuZar ultrapure water system is CE/RoHS certified. RephiLe provides full documents support to meet user's GMP, GSP, GAP, GCP, GLP requirements.
NuZar Q Set System Includes:
- Main system
- UV preinstalled
- NuZar H and U Pack cartridges and a final filter
Key Features
- Simple installation and maintenance
- RFID tracking of consumables for enhanced management
- Easy to remove consumable access cover
- Reliable water quality and stable system performance
- Automatic hourly recirculation of ultrapure water
- Data traceability
- Automatic data backup for up to 2 years
- Easy data transfer through multiple interfaces, such as LAN, USB, etc.
- Low running cost
- Environmentally friendly. High recovery rate
- RFID record of cartridge history for predictable consumable replacements
- Highly-efficient cartridge
- Compact and small footprint
- Placement flexibility - on the bench, under the bench or on a wall
- All-in-one design. Space-Saver
Main Components
Cartridge
- Optimized flow design to improve water quality stability & efficiency of polishing resins
- High pressure rated housings, proprietary sealing, and double O-ring design ensures operational confidence
- Cartridge color, label, and RFID recognition prevent incorrect installation
Ergonomic dispenser with 2.4" color touch screen
- One dispenser for one system
- Intuitive display - water quality with temperature compensation, volumetric dispensing and flow rate
- System alerts are displayed on the touch screen
- Effortless adjustment - dispensing rate (up to 2 L/min), manual and volumetric dispensing
- Choice of final filters: RephiBio and 0.2 μm final filter
- Two dispenser heights for the ultimate in flexibility
Storage Tank
- A submersible level sensor can be added to the feed water tank if needed
Applications
- HPLC mobile phase preparation
- Preparation of reagent blank solutions
- Sample diluent for GC, HPLC, ICP-MS, or other analytical techniques
- Preparation of buffers and culture media for cell culture
- Preparation of molecular biology reagents, etc.
Specifications
Overview
-
Nominal Height:24.5" (62.23 cm)
-
Nominal Width:16.3" (41.4 cm)
-
Nominal Length:12.2" (30.99 cm)
Feed Water Requirements
-
Feed Water:EDI water, RO water, Distilled water, Deionized water
-
Operating Temperature:5 - 35°C
-
Feed Water Pressure:0 - 1 bar (0 - 15 psi)
Product Water Quality
-
Ultrapure Water Dispensing Rate:Up to 2 L/min
-
Ultrapure Water Resistivity (@25°C):18.2 MΩ·cm
-
Ultrapure Water TOC:< 5 ppb, when TOC Level of feed water is < 50 ppb
-
Particles in Ultrapure Water:No particles with size > 0.22 μm (with a 0.2 μm final filter or RephiBio filter)
-
Microorganisms in Ultrapure Water:< 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter)
-
Pyrogens (Endotoxins) in Ultrapure Water:< 0.001 Eu/ml (with a RephiBio filter)
-
RNase in Ultrapure Water:< 0.5 pg/ml (with a RephiBio filter)
-
DNase in Ultrapure Water:< 10 pg/ml (with a RephiBio filter)
Main System
-
Operating Voltage:24 VDC
-
Input Voltage:100 - 240 VAC
-
Main System Power:< 190 W
-
Weight (Approximate) - Net:18 kg
-
Weight (Approximate) - Gross:27 kg
